Air Vents, Louvres And Ducts (Instument Panel, Internal Components) (Less Head Up Display)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Air Vents, Louvres And Ducts (Instument Panel, Internal Components) (Less Head Up Display)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP500770 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR035507 DUCT - AIR VENT $82.90 To Order
LR099782 DUCT - AIR VENT $67.80 To Order
Photo Part No Description Price (each) Stock
LR035506 DUCT - AIR VENT $78.39 To Order
LR099781 DUCT - AIR VENT $52.33 To Order
Photo Part No Description Price (each) Stock
LR044699 DUCT - HEATER OUTLET $16.79 To Order
Photo Part No Description Price (each) Stock
LR035430 DUCT - HEATER - WINDSCREEN $34.65 To Order
Photo Part No Description Price (each) Stock
LR035429 DUCT - HEATER - WINDSCREEN $34.07 To Order
Photo Part No Description Price (each) Stock
LR035352 DUCT - HEATER OUTLET $101.38 To Order
LR053283 DUCT - HEATER OUTLET $46.09 To Order
LR100445 DUCT - HEATER OUTLET $87.21 To Order
Photo Part No Description Price (each) Stock
LR035351 DUCT - HEATER OUTLET $90.64 To Order
LR053279 DUCT - HEATER OUTLET $43.52 To Order
LR100442 DUCT - HEATER OUTLET $88.35 To Order
Photo Part No Description Price (each) Stock
LR035353 DUCT - HEATER OUTLET $91.84 To Order
LR100443 DUCT - HEATER OUTLET $46.44 To Order
LR100444 DUCT - HEATER OUTLET $48.04 To Order
Photo Part No Description Price (each) Stock
LR035925 DUCT - HEATER OUTLET $42.87 To Order
LR035922 DUCT - HEATER OUTLET $38.85 To Order
LR139519 DUCT - HEATER OUTLET $35.81 To Order
Photo Part No Description Price (each) Stock
LR035924 DUCT - HEATER OUTLET $42.63 To Order
LR035923 DUCT - HEATER OUTLET $38.85 To Order
LR139517 DUCT - HEATER OUTLET $43.16 To Order
Photo Part No Description Price (each) Stock
LR041044 SENSOR - HEATER TEMPERATURE CONTROL $19.40 To Order
Photo Part No Description Price (each) Stock
LR023702 SENSOR - HEATER TEMPERATURE CONTROL $59.64 To Order
LR062233 SENSOR - HEATER TEMPERATURE CONTROL $83.32 To Order
View All

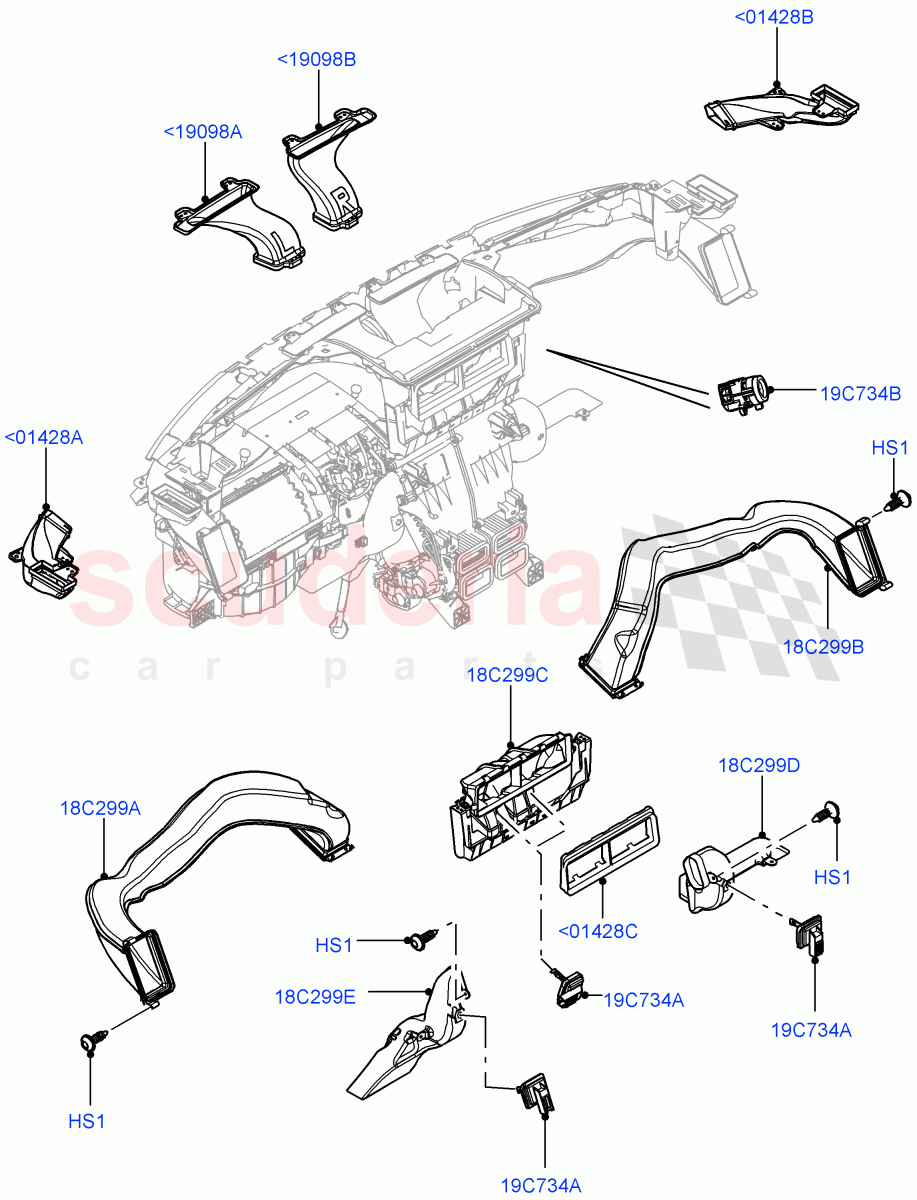

Air Vents, Louvres And Ducts (Instument Panel, Internal Components) (Less Head Up Display) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01428A LR035507
DUCT - AIR VENT
LH, Also Supplied With Instrument Panel Upper Assembly, Side Window Demist Duct / To: HA999999 		$82.90 1
<01428A LR099782
DUCT - AIR VENT
LH, Also Supplied With Instrument Panel Upper Assembly, Side Window Demist Duct / From: JA000001 		$67.80 1
<01428B LR035506
DUCT - AIR VENT
RH, Also Supplied With Instrument Panel Upper Assembly, Side Window Demist Duct / To: HA999999 		$78.39 1
<01428B LR099781
DUCT - AIR VENT
RH, Also Supplied With Instrument Panel Upper Assembly, Side Window Demist Duct / From: JA000001 		$52.33 1
<01428C LR044699
DUCT - HEATER OUTLET
Air Duct Support, Centre, Face Level Duct 		$16.79 1
<19098A LR035430
DUCT - HEATER - WINDSCREEN
LH, Also Supplied With Instrument Panel Upper Assembly 		$34.65 1
<19098B LR035429
DUCT - HEATER - WINDSCREEN
RH, Also Supplied With Instrument Panel Upper Assembly 		$34.07 1
HS1 RYP500770
SCREW
5 X 16MM, Torx 		$0.63 6
18C299A LR035352
DUCT - HEATER OUTLET
LH, Face Level Duct / To: EA339852 		$101.38 1
18C299A LR053283
DUCT - HEATER OUTLET
LH, Face Level Duct / From: EA339853 / To: HA999999 		$46.09 1
18C299A LR100445
DUCT - HEATER OUTLET
LH, Face Level Duct / From: JA000001 		$87.21 1
18C299B LR035351
DUCT - HEATER OUTLET
RH, Face Level Duct / To: EA339852 		$90.64 1
18C299B LR053279
DUCT - HEATER OUTLET
RH, Face Level Duct / From: EA339853 / To: HA999999 		$43.52 1
18C299B LR100442
DUCT - HEATER OUTLET
RH, Face Level Duct / From: JA000001 		$88.35 1
18C299C LR035353
DUCT - HEATER OUTLET
Centre, Face Level Duct / To: HA999999 		$91.84 1
18C299C LR100443
DUCT - HEATER OUTLET
Cabin Air Quality Ionisation / Centre, Face Level Duct / From: JA000001 		$46.44 1
18C299C LR100444
DUCT - HEATER OUTLET
Less Cabin Air Quality Ionisation / Centre, Face Level Duct / From: JA000001 		$48.04 1
18C299D LR035925
DUCT - HEATER OUTLET
RHD / RH, Footwell Duct, For Drivers Side 		$42.87 1
18C299D LR035922
DUCT - HEATER OUTLET
LHD / RH, Footwell Duct, Passenger Side / To: LA734055 		$38.85 1
18C299D LR139519
DUCT - HEATER OUTLET
LHD / RH, Footwell Duct, Passenger Side / From: LA734056 		$35.81 1
18C299E LR035924
DUCT - HEATER OUTLET
RHD / LH, Footwell Duct, Passenger Side 		$42.63 1
18C299E LR035923
DUCT - HEATER OUTLET
LHD / LH, Footwell Duct, For Drivers Side / To: LA734055 		$38.85 1
18C299E LR139517
DUCT - HEATER OUTLET
LHD / LH, Footwell Duct, For Drivers Side / From: LA734056 		$43.16 1
19C734A LR041044
SENSOR - HEATER TEMPERATURE CONTROL 		$19.40 4
19C734B LR023702
SENSOR - HEATER TEMPERATURE CONTROL
To: EA364771 		$59.64 1
19C734B LR062233
SENSOR - HEATER TEMPERATURE CONTROL
From: EA364772 		$83.32 1
