Heater Hoses (Front) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Toha999999)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Heater Hoses (Front) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011270 SCREW $1.23 To Order
Photo Part No Description Price (each) Stock
KYG500380 SCREW AND WASHER - HEX HEAD $0.36 IN STOCK
Photo Part No Description Price (each) Stock
FS110206 BOLT - HEX.HEAD $0.78 To Order
Photo Part No Description Price (each) Stock
LR010793 GASKET - WATER MANIFOLD $9.57 To Order
Photo Part No Description Price (each) Stock
LR034598 TUBE - HEATER WATER $383.13 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.45 To Order
Photo Part No Description Price (each) Stock
LR034617 HOSE - HEATER WATER $28.23 To Order
Photo Part No Description Price (each) Stock
LR133648 HOSE - HEATER WATER $48.41 To Order
LR093434 HOSE - HEATER WATER $67.27 To Order
Photo Part No Description Price (each) Stock
LR035621 HOSE - HEATER WATER $39.43 To Order
Photo Part No Description Price (each) Stock
LR122709 MANIFOLD - HEATER $139.76 To Order
LR077042 MANIFOLD - HEATER $76.72 To Order
LR087559 MANIFOLD - HEATER $125.29 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034624 HOSE AND BRACKET - HEATING $101.85 To Order
View All

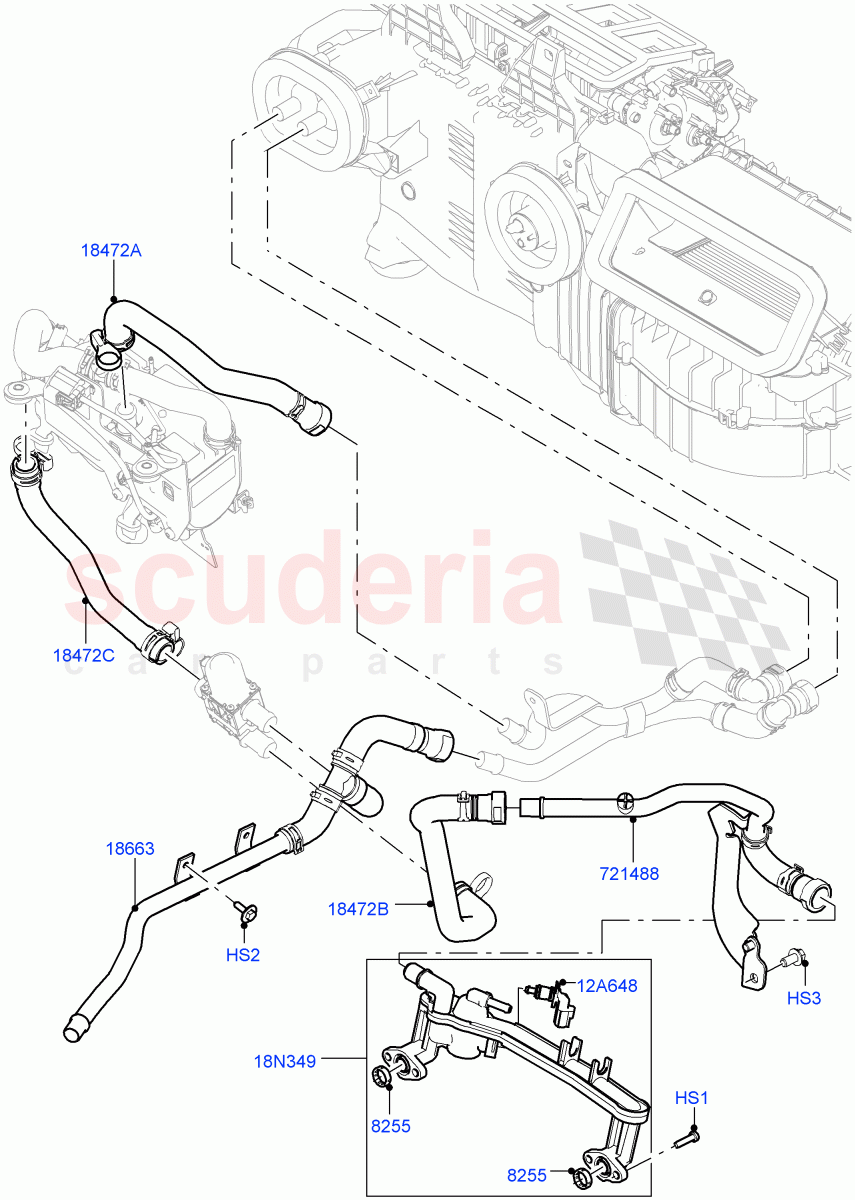

Heater Hoses (Front) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR011270
SCREW
M6 x 25MM, Torx 		$1.23 4
HS2 KYG500380
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 13.5MM
IN STOCK 		$0.36 2
HS3 FS110206
BOLT - HEX.HEAD
Hexagonal Head, M10 X 20MM 		$0.78 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE 		$59.45 1
18N349 LR122709
MANIFOLD - HEATER
Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / To: FA999999 		$139.76 1
18N349 LR077042
MANIFOLD - HEATER
Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: GA000001 / To: GA595791 		$76.72 1
18N349 LR087559
MANIFOLD - HEATER
Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: GA595792 / To: GA999999 		$125.29 1
18N349 LR122709
MANIFOLD - HEATER
Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: HA000001 / To: HA162546 		$139.76 1
18N349 LR122709
MANIFOLD - HEATER
Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: HA162547 		$139.76 1
8255 LR010793
GASKET - WATER MANIFOLD 		$9.57 2
18472A LR034617
HOSE - HEATER WATER 		$28.23 1
18472B LR133648
HOSE - HEATER WATER
Park Heating With Remote Control / (+) ROW, From Engine To Fuel Fired Heater 		$48.41 1
18472B LR093434
HOSE - HEATER WATER
Electric Auxiliary Coolant Pump / (+)"NAS", From Engine To Fuel Fired Heater, Lower / From: HA140388 		$67.27 1
18472C LR035621
HOSE - HEATER WATER 		$39.43 1
18663 LR034598
TUBE - HEATER WATER 		$383.13 1
721488 LR034624
HOSE AND BRACKET - HEATING
From Engine Block To Heater Inlet Hose 		$101.85 1
