Heater/Air Cond.external Components (Main Unit)

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] - Heater/Air Cond.External Components (Main Unit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYH500290 NUT AND WASHER - HEX. $2.28 To Order
Photo Part No Description Price (each) Stock
LR036394 SCREW AND WASHER $2.22 To Order
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.22 IN STOCK
Photo Part No Description Price (each) Stock
LR050789 CONTROL - AIR CONDITIONING $554.02 To Order
LR061870 CONTROL - AIR CONDITIONING $537.91 To Order
LR086290 CONTROL - AIR CONDITIONING $506.97 To Order
Photo Part No Description Price (each) Stock
LR038865 DEFLECTOR - AIR $21.82 To Order
LR038867 DEFLECTOR - AIR $14.51 To Order
Photo Part No Description Price (each) Stock
LR036377 TUBE - WATER DRAIN $9.63 To Order
Photo Part No Description Price (each) Stock
LR143204 KIT - SEAL $70.55 To Order
Photo Part No Description Price (each) Stock
LR035867 GROMMET - HEATER $10.55 To Order
Photo Part No Description Price (each) Stock
LR036363 GROMMET - HEATER $5.69 To Order
View All

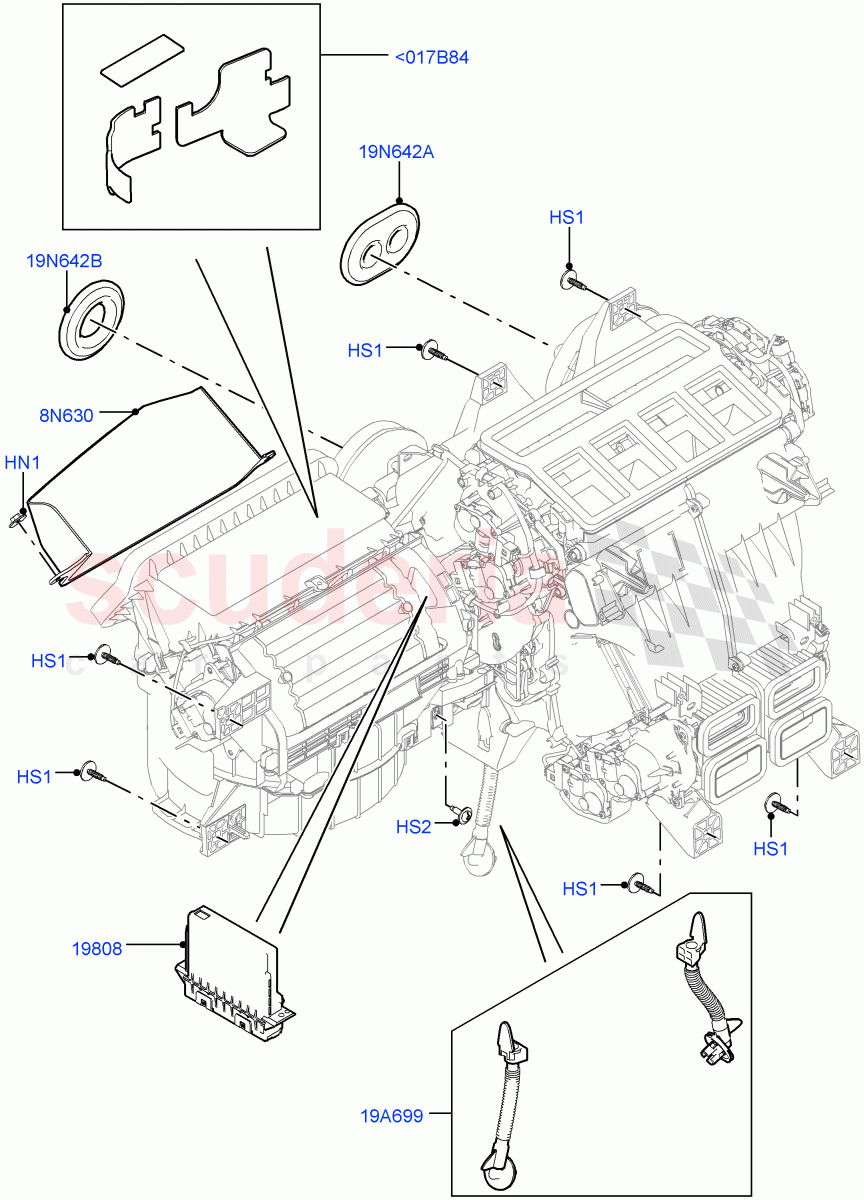

Heater/Air Cond.External Components (Main Unit) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR143204
KIT - SEAL
Set Of 3 Pieces / From: LA710111 		$70.55 1
HN1 RYH500290
NUT AND WASHER - HEX.
M6 		$2.28 2
HS1 LR036394
SCREW AND WASHER
M6 X 23MM, Torx 		$2.22 6
HS2 LR083229
SCREW
M6 x 18MM
IN STOCK 		$4.22 1
8N630 LR038865
DEFLECTOR - AIR
LHD / Air Intake 		$21.82 1
8N630 LR038867
DEFLECTOR - AIR
RHD / Air Intake 		$14.51 1
19A699 LR036377
TUBE - WATER DRAIN 		$9.63 1
19N642A LR035867
GROMMET - HEATER
RH, External 		$10.55 1
19N642B LR036363
GROMMET - HEATER
LH, External 		$5.69 1
19808 LR050789
CONTROL - AIR CONDITIONING
With Fixing Parts / To: EA999999 		$554.02 1
19808 LR061870
CONTROL - AIR CONDITIONING
With Fixing Parts / From: FA000001 / To: GA999999 		$537.91 1
19808 LR086290
CONTROL - AIR CONDITIONING
With Fixing Parts / From: HA000001 / To: HA999999 		$506.97 1
