Turbocharger (Lubrication And Cooling) (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Turbocharger (Lubrication And Cooling) (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR136779 RING - SEALING $4.84 IN STOCK
Photo Part No Description Price (each) Stock
LR073688 O-RING $3.99 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR122683 SCREW $1.89 IN STOCK
Photo Part No Description Price (each) Stock
PYP500070 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
LR073671 WASHER - COPPER $4.69 IN STOCK
Photo Part No Description Price (each) Stock
LR121388 PIPE - OIL DRAIN $23.44 To Order
LR150102 TUBE $26.99 To Order
Photo Part No Description Price (each) Stock
LR121398 PIPE - OIL DRAIN $73.65 To Order
LR150103 PIPE - OIL DRAIN $26.99 To Order
Photo Part No Description Price (each) Stock
LR183050 CONNECTION - WATER $73.70 To Order
Photo Part No Description Price (each) Stock
LR123080 HOSE - WATER $43.09 To Order
LR135656 HOSE - WATER $63.95 To Order
Photo Part No Description Price (each) Stock
LR183052 HOSE - WATER OUTLET $71.18 To Order
Photo Part No Description Price (each) Stock
LR124541 CONNECTION - WATER $54.15 To Order
View All

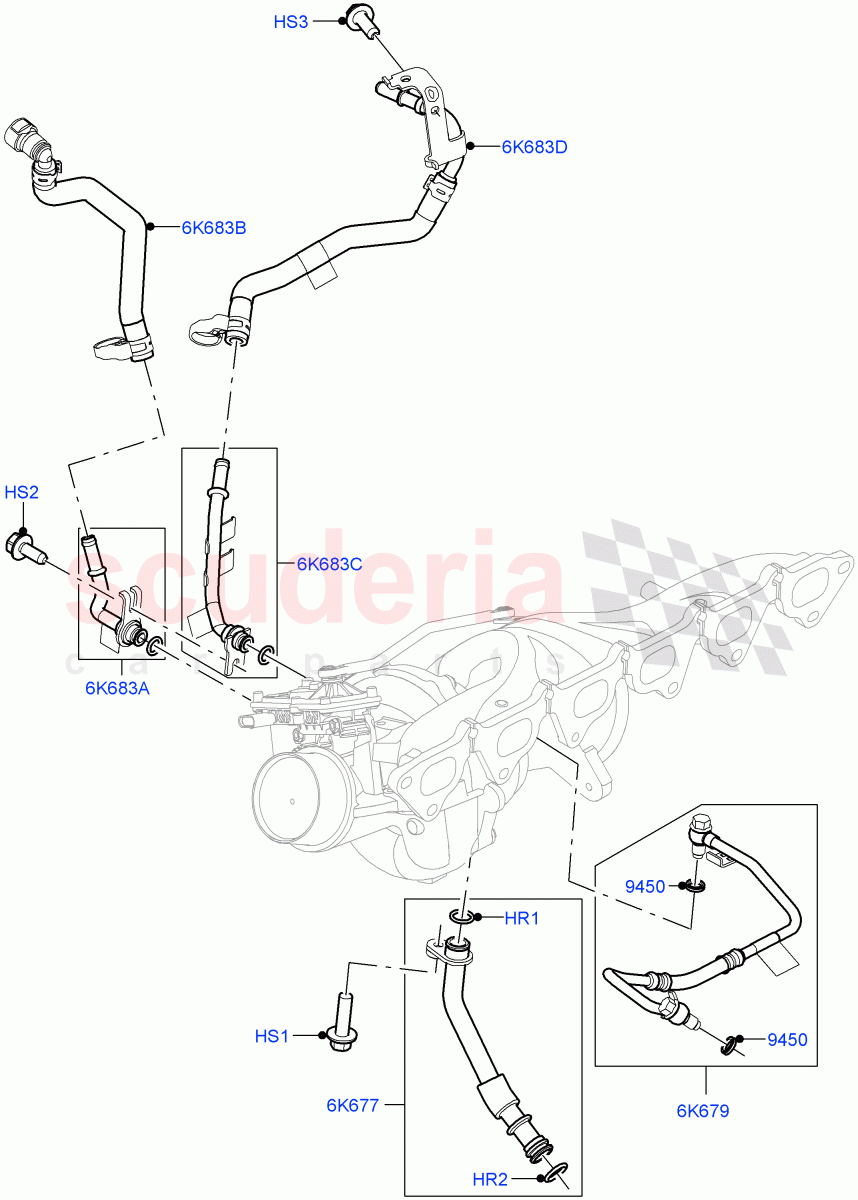

Turbocharger (Lubrication And Cooling) (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR136779
RING - SEALING
13.8 x 2.5, Drain, Upper / From: KA000001
IN STOCK 		$4.84 1
HR2 LR073688
O-RING
15 X 3MM, Drain, Lower / From: KA000001
IN STOCK 		$3.99 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: KA000001
IN STOCK 		$1.60 1
HS2 LR122683
SCREW
M6 X 16MM / From: KA000001
IN STOCK 		$1.89 1
HS3 PYP500070
SCREW
6 x 16MM, Hexagonal Head / From: KA000001 		$0.80 1
6K677 LR121388
PIPE - OIL DRAIN
From: KA000001 / To: MA768684 		$23.44 1
6K677 LR150102
TUBE
From: MA768685 		$26.99 1
6K679 LR121398
PIPE - OIL DRAIN
From: KA000001 / To: MA768684 		$73.65 1
6K679 LR150103
PIPE - OIL DRAIN
From: MA768685 		$26.99 1
6K683A LR183050
CONNECTION - WATER
Cooling For Turbocharger, Feed, Lower / From: KA000001 		$73.70 1
6K683B LR123080
HOSE - WATER
Cooling For Turbocharger, Feed, Upper / From: KA000001 / To: KA875931 		$43.09 1
6K683B LR135656
HOSE - WATER
Cooling For Turbocharger, Feed, Upper / From: KA875932 		$63.95 1
6K683C LR183052
HOSE - WATER OUTLET
Cooling For Turbocharger, Lower, Return / From: KA000001 		$71.18 1
6K683D LR124541
CONNECTION - WATER
Cooling For Turbocharger, Return, Upper / From: KA000001 		$54.15 1
9450 LR073671
WASHER - COPPER
Banjo Washer, Requires 2 Pcs Per Banjo-Bolt / From: KA000001
IN STOCK 		$4.69 4
