Name: Turbocharger (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)
Rating: 4.8 (1 reviews)

Turbocharger (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Turbocharger (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

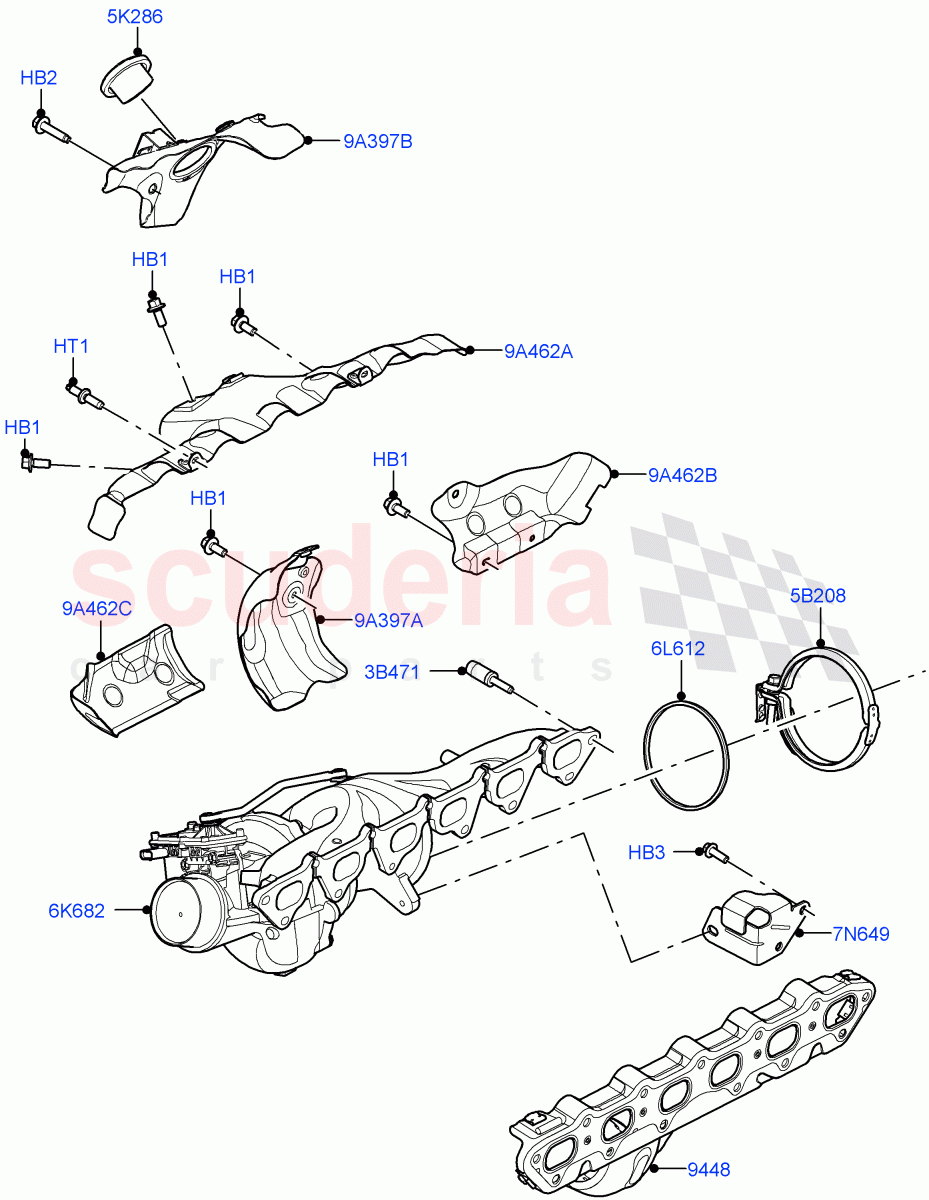

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092104	BOLT	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128485	STUD	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121256	GASKET - EXHAUST MANIFOLD	$55.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121352	SPACER - EXHAUST MANIFOLD FIXING	$18.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121359	CLAMP - EXHAUST	$42.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135843	HEAT SHIELD - TRANSMISSION	$51.39	To Order
	LR139513	HEAT SHIELD	$43.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121776	TURBOCHARGER	$2,281.89	To Order
	LR146149	TURBOCHARGER	$2,219.20	To Order
	LR121776	TURBOCHARGER	$2,281.89	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR121356	GASKET	$30.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR123366	BRACKET - TURBOCHARGER	$55.20	To Order
	LR138252	BRACKET - TURBOCHARGER	$54.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121257	HEAT SHIELD - TURBOCHARGER	$38.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123037	HEAT SHIELD - TURBOCHARGER	$57.68	To Order
	LR123037	HEAT SHIELD - TURBOCHARGER	$57.68	To Order
	LR123037	HEAT SHIELD - TURBOCHARGER	$57.68	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR121258	SHIELD - EXHAUST MANIFOLD HEAT	$70.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121259	SHIELD - EXHAUST MANIFOLD HEAT	$29.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121260	SHIELD - EXHAUST MANIFOLD HEAT	$27.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD Heat Shield, M6 X 14MM / From: KA000001	$2.77	6
HB2	LR073739	BOLT	LR073739 BOLT Catalyst, Heat Shield, M6 X 25MM / From: KA000001	$1.35	2
HB3	LR092104	BOLT	LR092104 BOLT M8 X 25MM, Turbocharger Bracket / From: KA000001	$1.61	2
HT1	LR128485	STUD	LR128485 STUD M6 x 18 mm + M6 x 18 mm, To Cylinder Head / From: KA000001	$1.44	2
3B471	LR121352	SPACER - EXHAUST MANIFOLD FIXING	LR121352 SPACER - EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing / From: KA000001	$18.60	13
5B208	LR121359	CLAMP - EXHAUST	LR121359 CLAMP - EXHAUST Turbocharger Outlet / From: KA000001	$42.78	1
5K286	LR135843	HEAT SHIELD - TRANSMISSION	LR135843 HEAT SHIELD - TRANSMISSION Insert / From: KA000001 / To: MA750971	$51.39	1
5K286	LR139513	HEAT SHIELD	LR139513 HEAT SHIELD Insert / From: MA750972	$43.55	1
6K682	LR121776	TURBOCHARGER	LR121776 TURBOCHARGER From: KA000001 / To: KA999999	$2,281.89	1
6K682	LR146149	TURBOCHARGER	LR146149 TURBOCHARGER From: LA742666 / To: LA799999	$2,219.20	1
6K682	LR121776	TURBOCHARGER	LR121776 TURBOCHARGER From: LA800001 / To: LA899999	$2,281.89	1
6K682	LR121776	TURBOCHARGER	LR121776 TURBOCHARGER From: LA700000 / To: LA742665	$2,281.89	1
6K682	LR146149	TURBOCHARGER	LR146149 TURBOCHARGER From: MA000001	$2,219.20	1
6L612	LR121356	GASKET IN STOCK	LR121356 GASKET Turbocharger Outlet / From: KA000001 IN STOCK	$30.50	1
7N649	LR123366	BRACKET - TURBOCHARGER	LR123366 BRACKET - TURBOCHARGER From: KA000001 / To: LA716621	$55.20	1
7N649	LR138252	BRACKET - TURBOCHARGER	LR138252 BRACKET - TURBOCHARGER From: LA716622	$54.83	1
9A397A	LR121257	HEAT SHIELD - TURBOCHARGER	LR121257 HEAT SHIELD - TURBOCHARGER Middle, Turbocharger / From: KA000001	$38.00	1
9A397B	LR123037	HEAT SHIELD - TURBOCHARGER	LR123037 HEAT SHIELD - TURBOCHARGER Exhaust / From: KA000001 / To: KA999999	$57.68	1
9A397B	LR123037	HEAT SHIELD - TURBOCHARGER	LR123037 HEAT SHIELD - TURBOCHARGER Exhaust / From: LA800001 / To: LA899999	$57.68	1
9A397B	LR123037	HEAT SHIELD - TURBOCHARGER	LR123037 HEAT SHIELD - TURBOCHARGER Exhaust / From: LA700000 / To: LA743408	$57.68	1
9A397B	LR139000	HEAT SHIELD - TURBOCHARGER	LR139000 HEAT SHIELD - TURBOCHARGER Exhaust / From: LA743409 / To: LA799999	$57.49	1
9A397B	LR139000	HEAT SHIELD - TURBOCHARGER	LR139000 HEAT SHIELD - TURBOCHARGER Exhaust / From: MA000001	$57.49	1
9A462A	LR121258	SHIELD - EXHAUST MANIFOLD HEAT	LR121258 SHIELD - EXHAUST MANIFOLD HEAT Top / From: KA000001	$70.26	1
9A462B	LR121259	SHIELD - EXHAUST MANIFOLD HEAT	LR121259 SHIELD - EXHAUST MANIFOLD HEAT Lower, Rear / From: KA000001	$29.55	1
9A462C	LR121260	SHIELD - EXHAUST MANIFOLD HEAT	LR121260 SHIELD - EXHAUST MANIFOLD HEAT Front, Lower / From: KA000001	$27.66	1
9448	LR121256	GASKET - EXHAUST MANIFOLD	LR121256 GASKET - EXHAUST MANIFOLD Manifold To Cylinder Head / From: KA000001	$55.45	1

Turbocharger (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Turbocharger (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)
