Supercharger (Electric) (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] - Supercharger (Electric) (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.46 To Order
Photo Part No Description Price (each) Stock
LR121357 SCREW $2.93 To Order
Photo Part No Description Price (each) Stock
LR121777 STUD $6.83 To Order
Photo Part No Description Price (each) Stock
LR121348 SPACER $10.89 To Order
Photo Part No Description Price (each) Stock
LR121349 SPACER $11.69 To Order
Photo Part No Description Price (each) Stock
LR121775 SUPERCHARGER $2,373.80 To Order
LR140362 SUPERCHARGER $2,081.98 To Order
Photo Part No Description Price (each) Stock
LR123101 PIPE - DRAIN $69.55 To Order
LR144589 PIPE - DRAIN $64.46 To Order
Photo Part No Description Price (each) Stock
LR121779 BRACKET - ENGINE COVER $18.07 To Order
Photo Part No Description Price (each) Stock
LR132387 BRACKET - WIRING $26.15 To Order
View All

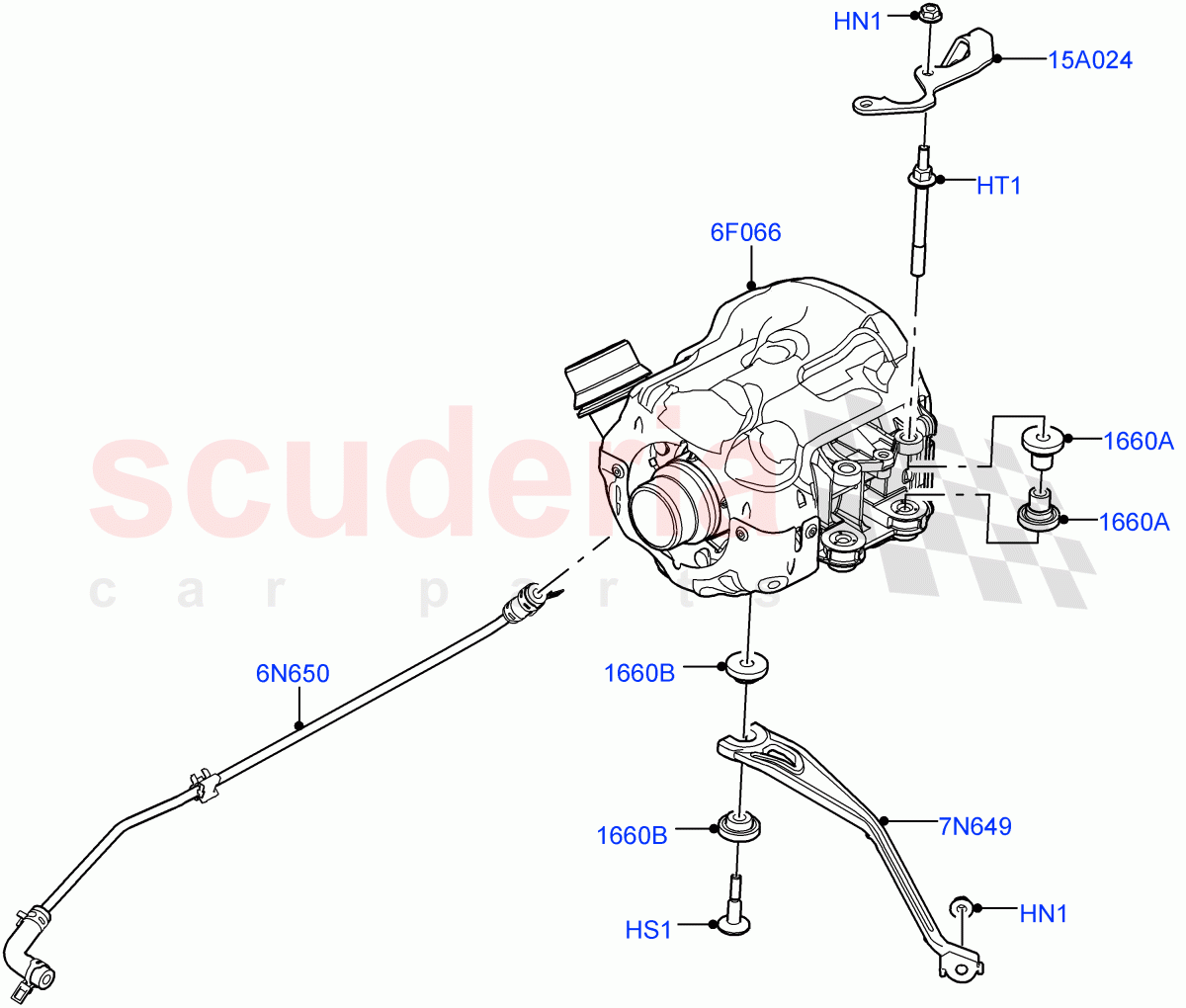

Supercharger (Electric) (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR087242
NUT - HEX.
M6 / From: KA000001 		$1.46 3
HS1 LR121357
SCREW
M6 x 35MM, Supercharger To Bracket / From: KA000001 		$2.93 1
HT1 LR121777
STUD
M6 X 16MM, M8 x 70MM, Supercharger To Engine / From: KA000001 		$6.83 2
6F066 LR121775
SUPERCHARGER
Electric / From: KA000001 / To: LA731038 		$2,373.80 1
6F066 LR140362
SUPERCHARGER
Electric / From: LA731039 		$2,081.98 1
6N650 LR123101
PIPE - DRAIN
Bypass Hose / From: KA000001 / To: MA769410 		$69.55 1
6N650 LR144589
PIPE - DRAIN
Bypass Hose / From: MA769411 		$64.46 1
7N649 LR121779
BRACKET - ENGINE COVER
From: KA000001 		$18.07 1
15A024 LR132387
BRACKET - WIRING
Engine Harness / From: KA000001 		$26.15 1
1660A LR121348
SPACER
Supercharger To Engine / From: KA000001 		$10.89 4
1660B LR121349
SPACER
Supercharger To Bracket / From: KA000001 		$11.69 2
