Rear Brake Discs And Calipers

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Brake Discs And Calipers

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.22 IN STOCK
Photo Part No Description Price (each) Stock
SYG000013 BOLT $3.42 IN STOCK
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.25 IN STOCK
Photo Part No Description Price (each) Stock
LR015523 SCREW - BLEED $6.77 IN STOCK
Photo Part No Description Price (each) Stock
LR082225 SHIELD - BRAKE DISC SPLASH $97.70 To Order
LR082553 SHIELD - BRAKE DISC SPLASH $95.89 To Order
Photo Part No Description Price (each) Stock
LR036567 CALIPER - BRAKE $387.78 To Order
LR036568 CALIPER - BRAKE $387.78 To Order
Photo Part No Description Price (each) Stock
LR015525 COVER - DUST $24.44 To Order
Photo Part No Description Price (each) Stock
LR031319 BOLT $3.34 IN STOCK
Photo Part No Description Price (each) Stock
LR036569 BRACKET - BRAKE CALIPER $223.30 To Order
LR036571 BRACKET - BRAKE CALIPER $223.30 To Order
Photo Part No Description Price (each) Stock
LR189046 DISC - BRAKE $236.69 To Order
Photo Part No Description Price (each) Stock
STC1913 CAP - BLEED SCREW $6.25 IN STOCK
Photo Part No Description Price (each) Stock
LR164821 KIT - BRAKE LINING $142.68 IN STOCK
Photo Part No Description Price (each) Stock
LR033295 WIRE - BRAKE PAD WEAR WARNING $38.38 IN STOCK
View All

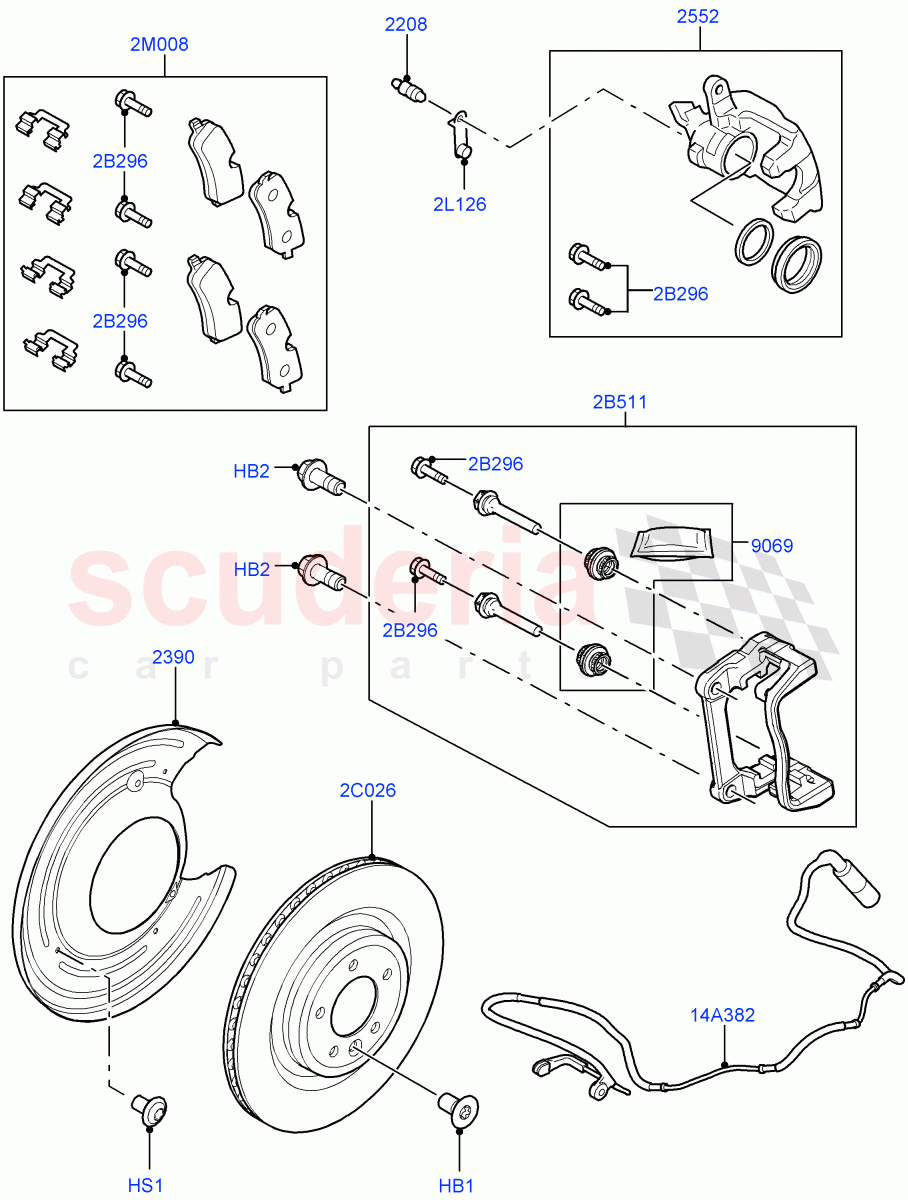

Rear Brake Discs And Calipers of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR002080
BOLT
M10 X 20MM, Torx / From: GA600000
IN STOCK 		$3.22 2
HB2 SYG000013
BOLT
External Torx Head, M12 X 35MM / From: GA600000
IN STOCK 		$3.42 4
HS1 LR018509
SCREW
M6 X 10MM, Torx / From: GA600000
IN STOCK 		$1.25 6
2B296 LR031319
BOLT
Pin - Guide / From: GA600000
IN STOCK 		$3.34 4
2B511 LR036569
BRACKET - BRAKE CALIPER
RH / From: GA600000 		$223.30 1
2B511 LR036571
BRACKET - BRAKE CALIPER
LH / From: GA600000 		$223.30 1
2C026 LR189046
DISC - BRAKE
From: GA600000 		$236.69 2
2L126 STC1913
CAP - BLEED SCREW
From: GA600000
IN STOCK 		$6.25 2
2M008 LR164821
KIT - BRAKE LINING
Axle Set, With Clips / From: GA600000
IN STOCK 		$142.68 1
14A382 LR033295
WIRE - BRAKE PAD WEAR WARNING
From: GA600000
IN STOCK 		$38.38 1
2208 LR015523
SCREW - BLEED
From: GA600000
IN STOCK 		$6.77 2
2390 LR082225
SHIELD - BRAKE DISC SPLASH
RH / From: GA600000 		$97.70 1
2390 LR082553
SHIELD - BRAKE DISC SPLASH
LH / From: GA600000 		$95.89 1
2552 LR036567
CALIPER - BRAKE
RH / From: GA600000 		$387.78 1
2552 LR036568
CALIPER - BRAKE
LH / From: GA600000 		$387.78 1
9069 LR015525
COVER - DUST
From: GA600000 		$24.44 2
