Name: Front Brake Discs And Calipers (Front Disc And Caliper Size 19) ((V) FROMGA652129, (V) TOHA999999)
Rating: 4.1 (1 reviews)

Front Brake Discs And Calipers (Front Disc And Caliper Size 19) ((V) FROMGA652129, (V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Front Brake Discs And Calipers (Front Disc And Caliper Size 19) ((V) FROMGA652129, (V) TOHA999999)

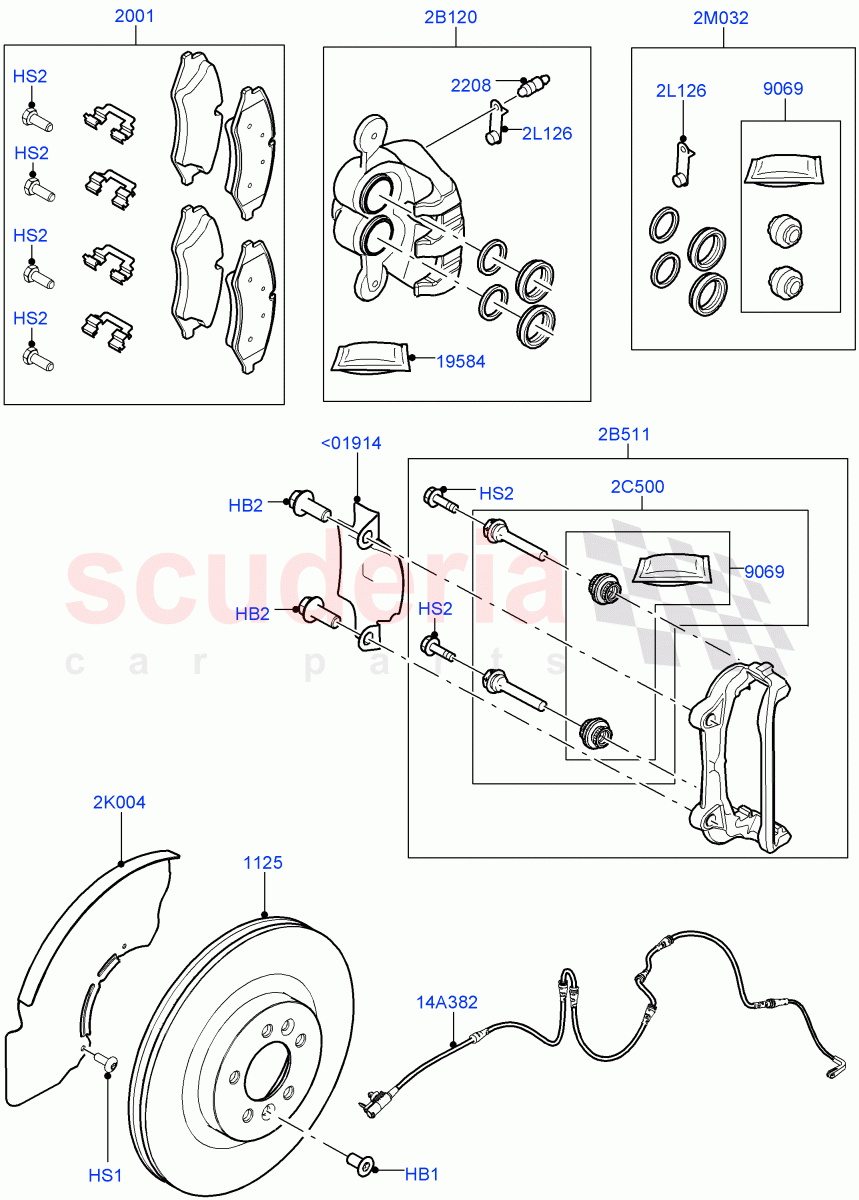

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	$3.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033274	BOLT	$7.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR043873	SCREW - PAN - TORX	$1.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SMV500010	SCREW	$2.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR038934	DISC - BRAKE	$209.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134700	BRAKE PADS - WITH SPRINGS	$228.09	To Order
	LR134700	BRAKE PADS - WITH SPRINGS	$228.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	$6.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	$24.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020053	GREASE - CHASSIS LUBRICATION	$3.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR047906	CALIPER - BRAKE - LESS PADS	$685.99	To Order
	LR047905	CALIPER - BRAKE - LESS PADS	$692.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051627	BRACKET - BRAKE CALIPER	$309.30	To Order
	LR051628	BRACKET - BRAKE CALIPER	$309.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020489	KIT - LOCATING PIN BOLTS	$23.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082550	SHIELD - SPLASH	$95.66	To Order
	LR082551	SHIELD - SPLASH	$100.05	To Order
	LR089140	SHIELD - SPLASH	$100.82	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SEE500100	CAP - BLEED SCREW	$1.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015580	KIT - CALIPER BRAKE PAD MTG PARTS	$24.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR068129	DUCT - BRAKE CALIPER COOLING	$11.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045959	WIRE - BRAKE PAD WEAR WARNING	$38.38	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<01914	LR068129	DUCT - BRAKE CALIPER COOLING	LR068129 DUCT - BRAKE CALIPER COOLING Brake Caliper Cooling / From: GA652129	$11.40	2
HB1	LR002080	BOLT IN STOCK	LR002080 BOLT M10 X 20MM, Torx / From: GA652129 IN STOCK	$3.22	2
HB2	LR033274	BOLT IN STOCK	LR033274 BOLT Hexagonal Head, M16 X 40 / From: GA652129 IN STOCK	$7.78	4
HS1	LR043873	SCREW - PAN - TORX IN STOCK	LR043873 SCREW - PAN - TORX M6 X 16MM, Torx / From: GA652129 IN STOCK	$1.09	4
HS2	SMV500010	SCREW IN STOCK	SMV500010 SCREW Pin - Slide / From: GA652129 IN STOCK	$2.74	4
2B120	LR047906	CALIPER - BRAKE - LESS PADS	LR047906 CALIPER - BRAKE - LESS PADS RH, TRW 19" Caliper / From: GA652129	$685.99	1
2B120	LR047905	CALIPER - BRAKE - LESS PADS	LR047905 CALIPER - BRAKE - LESS PADS LH, TRW 19" Caliper / From: GA652129	$692.86	1
2B511	LR051627	BRACKET - BRAKE CALIPER	LR051627 BRACKET - BRAKE CALIPER RH / From: GA652129	$309.30	1
2B511	LR051628	BRACKET - BRAKE CALIPER	LR051628 BRACKET - BRAKE CALIPER LH / From: GA652129	$309.30	1
2C500	LR020489	KIT - LOCATING PIN BOLTS IN STOCK	LR020489 KIT - LOCATING PIN BOLTS Caliper Set, Pin And Boot / From: GA652129 IN STOCK	$23.26	2
2K004	LR082550	SHIELD - SPLASH	LR082550 SHIELD - SPLASH LH / From: GA652129 / To: GA654192	$95.66	1
2K004	LR082551	SHIELD - SPLASH	LR082551 SHIELD - SPLASH RH / From: GA652129 / To: GA654192	$100.05	1
2K004	LR089140	SHIELD - SPLASH	LR089140 SHIELD - SPLASH LH / From: GA654193	$100.82	1
2K004	LR089139	SHIELD - SPLASH	LR089139 SHIELD - SPLASH RH / From: GA654193	$105.36	1
2L126	SEE500100	CAP - BLEED SCREW IN STOCK	SEE500100 CAP - BLEED SCREW From: GA652129 IN STOCK	$1.90	2
2M032	LR015580	KIT - CALIPER BRAKE PAD MTG PARTS IN STOCK	LR015580 KIT - CALIPER BRAKE PAD MTG PARTS Caliper Set / From: GA652129 / To: HA999999 IN STOCK	$24.79	2
14A382	LR045959	WIRE - BRAKE PAD WEAR WARNING	LR045959 WIRE - BRAKE PAD WEAR WARNING From: GA652129	$38.38	1
1125	LR038934	DISC - BRAKE	LR038934 DISC - BRAKE From: GA652129	$209.36	2
2001	LR134700	BRAKE PADS - WITH SPRINGS	LR134700 BRAKE PADS - WITH SPRINGS Axle Set / From: GA652129 / To: HA652129	$228.09	1
2001	LR134700	BRAKE PADS - WITH SPRINGS	LR134700 BRAKE PADS - WITH SPRINGS Axle Set / From: HA652130	$228.09	1
2208	LR015523	SCREW - BLEED IN STOCK	LR015523 SCREW - BLEED From: GA652129 IN STOCK	$6.77	2
9069	LR015525	COVER - DUST	LR015525 COVER - DUST From: GA652129 / To: HA999999	$24.44	2
19584	LR020053	GREASE - CHASSIS LUBRICATION IN STOCK	LR020053 GREASE - CHASSIS LUBRICATION From: GA652129 IN STOCK	$3.65	1
