Front Brake Discs And Calipers (Version - Core, Front Disc And Caliper Size 18, Non Svr, Disc And...

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] - Front Brake Discs And Calipers (Version - Core, Front Disc And Caliper Size 18, Non SVR, Disc And...

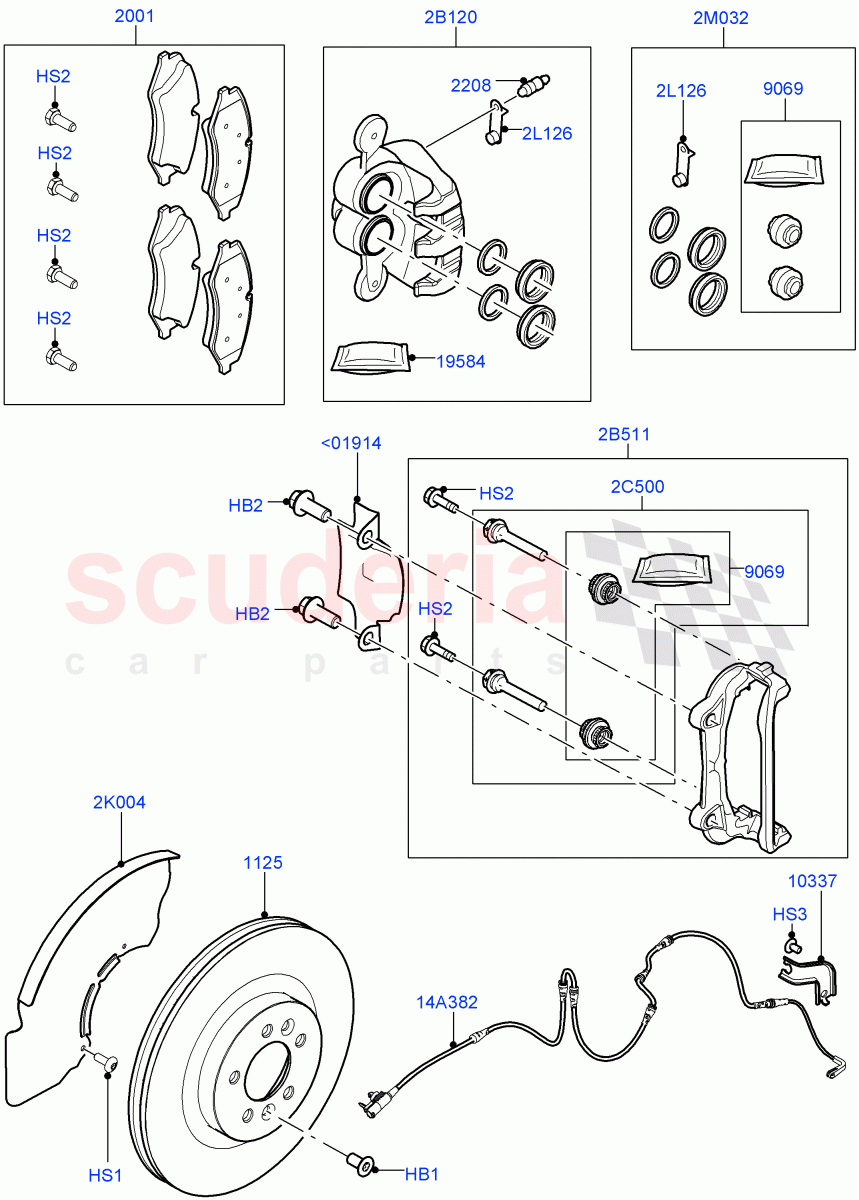

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR002080 BOLT $3.19 IN STOCK
Photo Part No Description Price (each) Stock
LR033274 BOLT $8.04 IN STOCK
Photo Part No Description Price (each) Stock
LR043873 SCREW - PAN - TORX $1.10 IN STOCK
Photo Part No Description Price (each) Stock
SMV500010 SCREW $2.75 IN STOCK
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR081594 DISC - BRAKE $314.26 To Order
LR081594 DISC - BRAKE $314.26 To Order
LR081594 DISC - BRAKE $314.26 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR162044 KIT - CALIPER BRAKE PAD $259.49 To Order
LR134644 KIT - CALIPER BRAKE PAD $474.01 To Order
LR128251 BRAKE PADS - LESS SPRINGS $481.17 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015523 SCREW - BLEED $6.74 IN STOCK
Photo Part No Description Price (each) Stock
LR015525 COVER - DUST $24.72 To Order
Photo Part No Description Price (each) Stock
LR084044 BRACKET - WIRING $14.25 To Order
Photo Part No Description Price (each) Stock
LR020053 GREASE - CHASSIS LUBRICATION $3.62 IN STOCK
Photo Part No Description Price (each) Stock
LR110407 CALIPER - BRAKE - LESS PADS $573.24 To Order
LR110408 CALIPER - BRAKE - LESS PADS $579.06 To Order
Photo Part No Description Price (each) Stock
LR110405 BRACKET - BRAKE CALIPER $287.84 To Order
LR110406 BRACKET - BRAKE CALIPER $274.17 To Order
Photo Part No Description Price (each) Stock
LR020489 KIT - LOCATING PIN BOLTS $23.92 IN STOCK
Photo Part No Description Price (each) Stock
LR084047 SHIELD - SPLASH $91.55 To Order
LR084046 SHIELD - SPLASH $91.55 To Order
Photo Part No Description Price (each) Stock
STC1913 CAP - BLEED SCREW $6.16 IN STOCK
Photo Part No Description Price (each) Stock
LR110410 KIT - CALIPER BRAKE PAD MTG PARTS $29.19 To Order
Photo Part No Description Price (each) Stock
LR084045 DUCT - BRAKE CALIPER COOLING $58.84 To Order
Photo Part No Description Price (each) Stock
LR122455 WIRE - BRAKE PAD WEAR WARNING $43.23 IN STOCK
LR122455 WIRE - BRAKE PAD WEAR WARNING $43.23 IN STOCK
View All
Front Brake Discs And Calipers (Version - Core, Front Disc And Caliper Size 18, Non SVR, Disc And Caliper Size-Frt 18/RR 18) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01914 LR084045
DUCT - BRAKE CALIPER COOLING
Brake Caliper Cooling / From: JA000001 		$58.84 2
HB1 LR002080
BOLT
M10 X 20MM, Torx / From: JA000001
IN STOCK 		$3.19 2
HB2 LR033274
BOLT
Hexagonal Head, M16 X 40 / From: JA000001
IN STOCK 		$8.04 4
HS1 LR043873
SCREW - PAN - TORX
M6 X 16MM, Torx / From: JA000001
IN STOCK 		$1.10 4
HS2 SMV500010
SCREW
Pin - Slide / From: JA000001
IN STOCK 		$2.75 4
HS3 LR018509
SCREW
M6 X 10MM, Torx / From: JA000001
IN STOCK 		$1.24 1
2B120 LR110407
CALIPER - BRAKE - LESS PADS
RH / From: JA000001 		$573.24 1
2B120 LR110408
CALIPER - BRAKE - LESS PADS
LH / From: JA000001 		$579.06 1
2B511 LR110405
BRACKET - BRAKE CALIPER
RH / From: JA000001 		$287.84 1
2B511 LR110406
BRACKET - BRAKE CALIPER
LH / From: JA000001 		$274.17 1
2C500 LR020489
KIT - LOCATING PIN BOLTS
Caliper Set, Pin And Boot / From: JA000001
IN STOCK 		$23.92 2
2K004 LR084047
SHIELD - SPLASH
LH / From: JA000001 		$91.55 1
2K004 LR084046
SHIELD - SPLASH
RH / From: JA000001 		$91.55 1
2L126 STC1913
CAP - BLEED SCREW
From: JA000001
IN STOCK 		$6.16 2
2M032 LR110410
KIT - CALIPER BRAKE PAD MTG PARTS
Caliper Set / From: JA000001 		$29.19 2
14A382 LR122455
WIRE - BRAKE PAD WEAR WARNING
From: JA000001 / To: KA838254
IN STOCK 		$43.23 1
14A382 LR122455
WIRE - BRAKE PAD WEAR WARNING
From: KA838255
IN STOCK 		$43.23 1
1125 LR081594
DISC - BRAKE
From: JA000001 / To: MA999999 		$314.26 2
1125 LR081594
DISC - BRAKE
From: NA700000 / To: NA799999 		$314.26 2
1125 LR081594
DISC - BRAKE
From: NA200000 / To: NA205230 		$314.26 2
1125 LR161889
DISC - BRAKE
From: NA205231 / To: NA699999
IN STOCK 		$198.16 2
1125 LR161889
DISC - BRAKE
From: PA000001
IN STOCK 		$198.16 2
2001 LR162044
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: JA000001 / To: MA999999 		$259.49 1
2001 LR134644
KIT - CALIPER BRAKE PAD
Axle Set, Dealer Fit Only, High Performance, Less Clips / From: LA879714 		$474.01 1
2001 LR128251
BRAKE PADS - LESS SPRINGS
Axle Set, Dealer Fit Only, High Performance, Less Clips / From: JA000001 / To: LA879713 		$481.17 1
2001 LR162044
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: NA700000 / To: NA799999 		$259.49 1
2001 LR162044
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: NA200000 / To: NA202612 		$259.49 1
2001 LR162044
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: NA202613 / To: NA699999 		$259.49 1
2001 LR162044
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance / From: PA000001 		$259.49 1
2208 LR015523
SCREW - BLEED
From: JA000001
IN STOCK 		$6.74 2
9069 LR015525
COVER - DUST
Boot / From: JA000001 		$24.72 2
10337 LR084044
BRACKET - WIRING
From: JA000001 		$14.25 1
19584 LR020053
GREASE - CHASSIS LUBRICATION
From: JA000001
IN STOCK 		$3.62 1
