Wiring - Seats (With 7 Seat Configuration)

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Wiring - Seats (With 7 Seat Configuration)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR057398 WIRE - SEAT BACK CONTROL $139.45 To Order
LR050177 WIRE - SEAT BACK CONTROL $76.93 To Order
LR054301 WIRE - SEAT BACK CONTROL $58.89 To Order
...and 6 more part variants. See table on right for more details.
View All

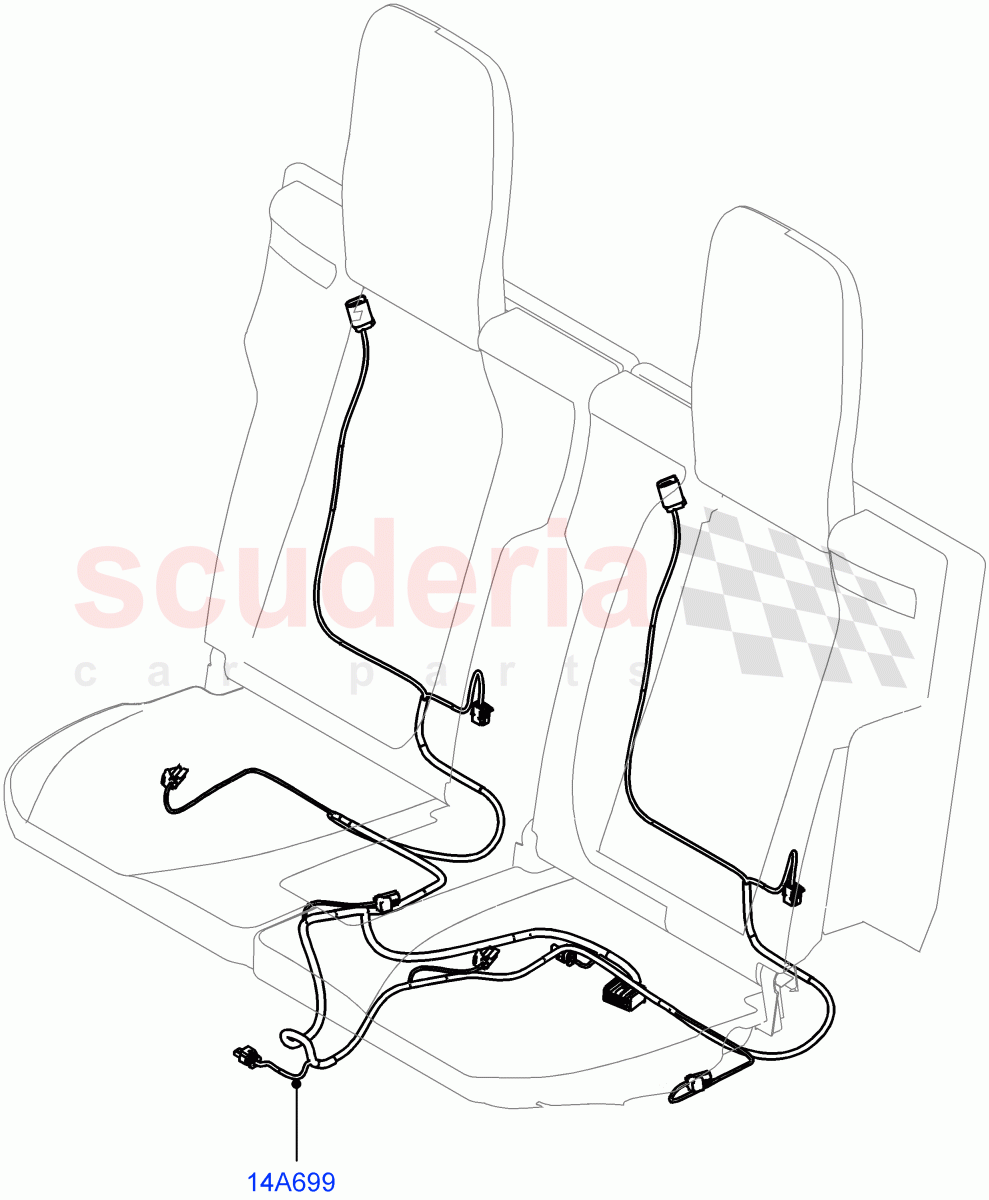

Wiring - Seats (With 7 Seat Configuration) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
14A699 LR057398
WIRE - SEAT BACK CONTROL
(+)"CDN/MEX/USA", Sensor - Occupant Classification, With Third Row Power Folding Seat / From: EA317880 / To: FA999999 		$139.45 1
14A699 LR050177
WIRE - SEAT BACK CONTROL
With Third Row Power Folding Seat / To: EA309009 		$76.93 1
14A699 LR054301
WIRE - SEAT BACK CONTROL
(-)"CDN/MEX/USA", Less Occupant Sensor, With Third Row Power Folding Seat / From: EA309010 / To: FA999999 		$58.89 1
14A699 LR076906
WIRE - SEAT BACK CONTROL
With Third Row Power Folding Seat / From: GA000001 / To: GA599282 		$287.25 1
14A699 LR089858
WIRE - SEAT BACK CONTROL
With Third Row Power Folding Seat / From: GA599283 / To: HA999999 		$142.50 1
14A699 LR109595
WIRE - SEAT BACK CONTROL
With Keyless Start, With Third Row Power Folding Seat / From: JA000001 / To: JA999999 		$226.65 1
14A699 LR109596
WIRE - SEAT BACK CONTROL
Keyless Entry/Start - Passive, With Third Row Power Folding Seat / From: JA000001 / To: JA999999 		$226.65 1
14A699 LR120274
WIRE - SEAT BACK CONTROL
With Keyless Start, With Third Row Power Folding Seat / From: KA000001 		$120.46 1
14A699 LR120275
WIRE - SEAT BACK CONTROL
Keyless Entry/Start - Passive, With Third Row Power Folding Seat / From: KA000001 		$120.46 1
