Anti-Theft Alarm Systems

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Anti-Theft Alarm Systems

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
RYH500570 NUT - ADJUSTING $2.85 To Order
Photo Part No Description Price (each) Stock
RYH500900 NUT - PLASTIC - SPECIAL $1.05 To Order
Photo Part No Description Price (each) Stock
LR002161 BOLT AND WASHER - HEX.HEAD $0.95 To Order
Photo Part No Description Price (each) Stock
PYP500070 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
RYP500770 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
ESR0567 STUD $3.40 To Order
Photo Part No Description Price (each) Stock
LR026041 HORN - ALARM SYSTEM $34.41 To Order
LR071707 HORN - ALARM SYSTEM $66.20 To Order
Photo Part No Description Price (each) Stock
LR090618 FOAM PAD - ENERGY ABSORBING $5.22 To Order
Photo Part No Description Price (each) Stock
LR049219 BRACKET - SUPPORT $31.51 To Order
LR100543 BRACKET - HORN $27.89 To Order
LR138597 BRACKET - HORN $27.89 To Order
Photo Part No Description Price (each) Stock
LR090409 BRACKET - AERIAL $10.33 To Order
Photo Part No Description Price (each) Stock
LR040646 WIRING - SECURITY SOUNDER $19.74 To Order
Photo Part No Description Price (each) Stock
LR033377 WIRE - SCANNING MODULE $27.99 To Order
Photo Part No Description Price (each) Stock
LR040645 WIRING - SECURITY SOUNDER $17.03 To Order
Photo Part No Description Price (each) Stock
LR020114 TRANSCEIVER - ANTI THEFT $51.17 To Order
LR115231 TRANSCEIVER - ANTI THEFT $48.84 To Order
LR147023 TRANSCEIVER - ANTI THEFT $51.67 To Order
Photo Part No Description Price (each) Stock
LR086328 TRANSCEIVER - ANTI THEFT $39.03 To Order
LR148094 TRANSCEIVER - ANTI THEFT $52.42 To Order
Photo Part No Description Price (each) Stock
LR071423 MODULE - PASSIVE START $181.98 To Order
LR080756 MODULE - PASSIVE START $243.30 To Order
LR052873 MODULE - PASSIVE START $327.43 To Order
...and 17 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR045341 SENSOR AND BRACKET - INTERIOR SCAN $202.82 To Order
LR060039 SENSOR AND BRACKET - INTERIOR SCAN $151.82 To Order
LR101443 SENSOR AND BRACKET - INTERIOR SCAN $120.41 To Order
Photo Part No Description Price (each) Stock
LR012709 ANTENNA - LF $15.20 To Order
LR012709 ANTENNA - LF $15.20 To Order
LR012709 ANTENNA - LF $15.20 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR041431 SWITCH - HOOD ANTI-THEFT $29.06 To Order
Photo Part No Description Price (each) Stock
LR023909 HORN $195.91 To Order
LR067841 SIREN - ANTI-THEFT ALARM SYSTEM $181.50 To Order
Photo Part No Description Price (each) Stock
LR113537 RECEIVER - RADIO REMOTE CONTROL $107.53 To Order
Photo Part No Description Price (each) Stock
LR012397 RECEIVER - RADIO REMOTE CONTROL $80.28 To Order
LR012398 RECEIVER - RADIO REMOTE CONTROL $93.04 To Order
LR117933 RECEIVER - RADIO REMOTE CONTROL $103.43 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138596 RECEIVER - RADIO REMOTE CONTROL $107.77 To Order
LR138730 RECEIVER - RADIO REMOTE CONTROL $108.61 To Order
View All

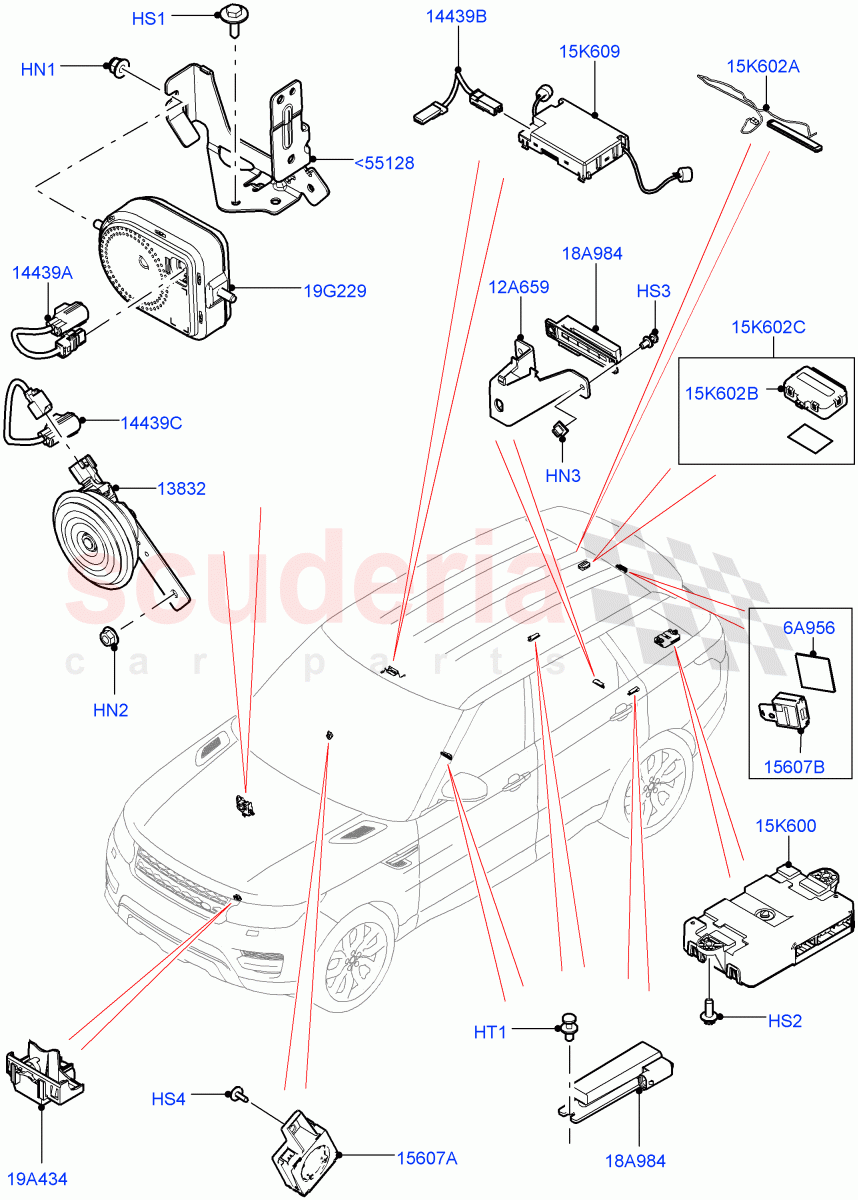

Anti-Theft Alarm Systems of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<55128 LR049219
BRACKET - SUPPORT
Anti-theft Alarm / To: HA999999 		$31.51 1
<55128 LR100543
BRACKET - HORN
Anti-theft Alarm / From: JA000001 / To: LA726079 		$27.89 1
<55128 LR138597
BRACKET - HORN
Anti-theft Alarm / From: LA726080 		$27.89 1
HN1 FY106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$0.68 2
HN2 RYH500570
NUT - ADJUSTING
M6 		$2.85 1
HN3 RYH500900
NUT - PLASTIC - SPECIAL
With 7 Seat Configuration / 4.2 X 6.4 X 8.4 X 0.8 - 3.2 Plastic 		$1.05 2
HS1 LR002161
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6 X 20MM 		$0.95 1
HS2 PYP500070
SCREW
6 x 16MM, Hexagonal Head 		$0.80 2
HS3 PYP500140
SCREW
4.2 x 13MM, Torx
IN STOCK 		$0.77 2
HS4 RYP500770
SCREW
5 X 16MM, Torx 		$0.63 1
HT1 ESR0567
STUD
6.2 X 3-5.8 		$3.40 -
6A956 LR090618
FOAM PAD - ENERGY ABSORBING
Vehicle Access-Leisure Activity Key / From: JA000001 		$5.22 1
12A659 LR090409
BRACKET - AERIAL
From: FA000001 		$10.33 1
15K600 LR071423
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: FA515626 / To: GA573053 		$181.98 1
15K600 LR080756
MODULE - PASSIVE START
With Keyless Start / From: FA516470 / To: GA573053 		$243.30 1
15K600 LR052873
MODULE - PASSIVE START
Keyless Entry/Start - Passive / To: EA339547 		$327.43 1
15K600 LR071424
MODULE - PASSIVE START
With Keyless Start / From: GA573054 / To: GA999999 		$257.53 1
15K600 LR080744
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: GA573054 / To: GA999999 		$189.01 1
15K600 LR083969
MODULE - PASSIVE START
With Keyless Start / From: HA000001 / To: HA999999 		$344.44 1
15K600 LR083970
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: HA000001 / To: HA999999 		$344.44 1
15K600 LR099138
MODULE - PASSIVE START
315 MHZ Door Lock Frequency, With Keyless Start / From: JA000001 / To: KA999999 		$306.92 1
15K600 LR099139
MODULE - PASSIVE START
433 MHZ Door Lock Frequency, With Keyless Start / From: JA000001 / To: KA999999 		$306.92 1
15K600 LR099140
MODULE - PASSIVE START
315 MHZ Door Lock Frequency, Keyless Entry/Start - Passive / From: JA000001 / To: KA999999 		$166.87 1
15K600 LR099141
MODULE - PASSIVE START
433 MHZ Door Lock Frequency, Keyless Entry/Start - Passive / From: JA000001 / To: KA999999
IN STOCK 		$303.25 1
15K600 LR052871
MODULE - PASSIVE START
With Keyless Start / To: EA339547 		$327.43 1
15K600 LR059765
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: EA339548 / To: EA503424 		$326.26 1
15K600 LR067251
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: EA503425 / To: FA515445 		$345.17 1
15K600 LR071386
MODULE - PASSIVE START
Keyless Entry/Start - Passive / From: FA515445 / To: FA515625 		$341.07 1
15K600 LR059763
MODULE - PASSIVE START
With Keyless Start / From: EA339548 / To: EA503424 		$325.74 1
15K600 LR071385
Module
With Keyless Start / From: EA503425 / To: FA515262 		$320.81 1
15K600 LR071651
MODULE - PASSIVE START
With Keyless Start / From: FA515263 / To: FA516469 		$341.07 1
15K600 LR117928
MODULE - PASSIVE START
With Keyless Start / From: LA000001 		$284.36 1
15K600 LR117932
MODULE
Keyless Entry/Start - Passive / From: LA000001 		$284.36 1
15K602A LR113537
RECEIVER - RADIO REMOTE CONTROL
From: JA000001 		$107.53 1
15K602B LR012397
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / To: EA329068 		$80.28 1
15K602B LR012398
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / To: EA329068 		$93.04 1
15K602B LR117933
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / From: LA000001 / To: LA702871 		$103.43 1
15K602B LR117934
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: LA000001 / To: LA702871 		$96.46 1
15K602B LR113850
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / From: EA329069 / To: KA999999 		$111.88 1
15K602B LR143239
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: EA329069 / To: KA999999 		$80.36 1
15K602B LR149753
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / From: LA702872 		$97.17 1
15K602B LR149754
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: LA702872 		$93.20 1
15K602C LR138596
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency / Service Kit In Assembly With A Dual Lock Pad To Fit Where Needed / From: EA329069 / To: KA999999 		$107.77 1
15K602C LR138730
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / Service Kit In Assembly With A Dual Lock Pad To Fit Where Needed / From: EA329069 / To: KA999999 		$108.61 1
15K609 LR045341
SENSOR AND BRACKET - INTERIOR SCAN
Perimeter / Volume Theft System / To: EA339999 		$202.82 1
15K609 LR060039
SENSOR AND BRACKET - INTERIOR SCAN
Perimeter / Volume Theft System / From: EA340000 / To: HA999999 		$151.82 1
15K609 LR101443
SENSOR AND BRACKET - INTERIOR SCAN
Perimeter / Volume Theft System / From: JA000001 		$120.41 1
18A984 LR012709
ANTENNA - LF
Keyless Entry/Start - Passive, With 7 Seat Configuration / Remote Keyless Antenna / To: HA999999 		$15.20 4
18A984 LR012709
ANTENNA - LF
Keyless Entry/Start - Passive, With 7 Seat Configuration / Located On Floor, Remote Keyless Antenna, Under 3rd Row Seating / To: HA999999 		$15.20 1
18A984 LR012709
ANTENNA - LF
With 5 Seat Configuration, With Keyless Start / Remote Keyless Antenna / To: HA999999 		$15.20 5
18A984 LR099137
ANTENNA - LF
With 5 Seat Configuration, With Keyless Start / Remote Keyless Antenna / From: JA000001 		$58.89 4
18A984 LR099137
ANTENNA - LF
Keyless Entry/Start - Passive, With 7 Seat Configuration / Remote Keyless Antenna / From: JA000001 		$58.89 5
19A434 LR041431
SWITCH - HOOD ANTI-THEFT 		$29.06 2
19G229 LR023909
HORN
BBU With Tilt Sensor / To: EA396187 		$195.91 1
19G229 LR067841
SIREN - ANTI-THEFT ALARM SYSTEM
BBU With Tilt Sensor / From: EA396188 		$181.50 1
13832 LR026041
HORN - ALARM SYSTEM
With Perimeter Anti-Theft / To: EA503412 		$34.41 1
13832 LR071707
HORN - ALARM SYSTEM
With Perimeter Anti-Theft / From: EA503413 		$66.20 1
14439A LR040646
WIRING - SECURITY SOUNDER
Perimeter / Volume Theft System 		$19.74 1
14439B LR033377
WIRE - SCANNING MODULE
Perimeter / Volume Theft System / Interior Motion Sensor 		$27.99 1
14439C LR040645
WIRING - SECURITY SOUNDER 		$17.03 1
15607A LR020114
TRANSCEIVER - ANTI THEFT
With Engine Immobiliser / To: KA999999 		$51.17 1
15607A LR115231
TRANSCEIVER - ANTI THEFT
With Engine Immobiliser / From: LA000001 / To: LA999999 		$48.84 1
15607A LR147023
TRANSCEIVER - ANTI THEFT
With Engine Immobiliser / From: MA000001 		$51.67 1
15607B LR086328
TRANSCEIVER - ANTI THEFT
Vehicle Access-Leisure Activity Key / From: JA000001 / To: LA999999 		$39.03 1
15607B LR148094
TRANSCEIVER - ANTI THEFT
Vehicle Access-Leisure Activity Key / From: MA000001 / To: MA999999 		$52.42 1
