Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV)

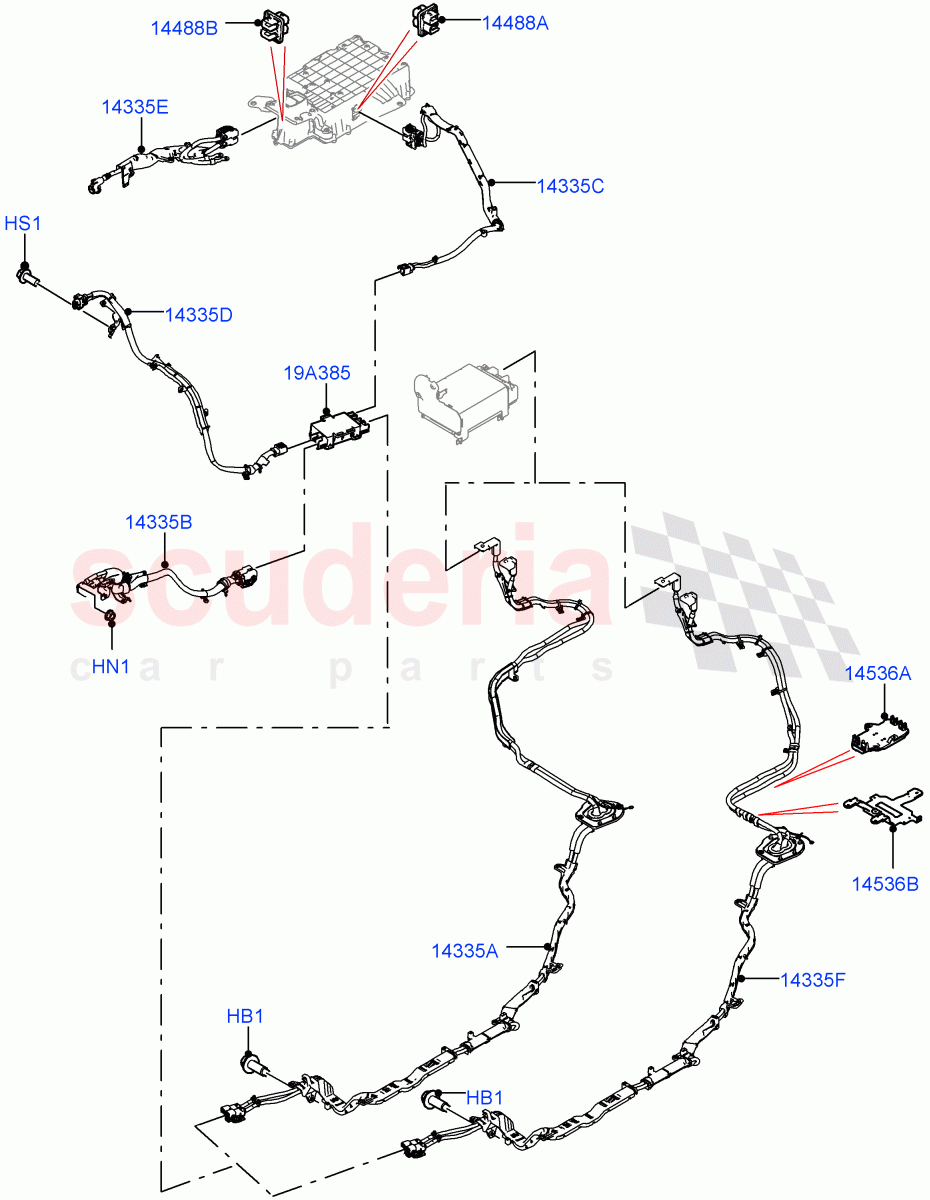

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122999	NUT - HEX.	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110206	BOLT - HEX.HEAD	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128888	CABLE - UNDERBODY	$449.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121218	CABLE	$267.69	To Order
	LR148280	CABLE	$302.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121223	CABLE	$302.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121224	CABLE	$407.61	To Order
	LR121224	CABLE	$407.61	To Order
	LR121224	CABLE	$407.61	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR121227	CABLE	$227.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128890	CABLE - UNDERBODY	$512.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128994	CONNECTOR - CABLE	$15.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128992	CONNECTOR - CABLE	$26.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124589	CARRIER	$38.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125218	BRACKET - MODULE	$153.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122589	JUNCTION BOX	$629.34	To Order
	LR128883	BOX - FUSE	$597.90	To Order
	LR133903	JUNCTION BOX	$597.42	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Hexagonal Head, M8 X 20MM IN STOCK	$1.43	1
HN1	LR122999	NUT - HEX.	LR122999 NUT - HEX. M8	$3.04	3
HS1	FS110206	BOLT - HEX.HEAD	FS110206 BOLT - HEX.HEAD Hexagonal Head, M10 X 20MM	$0.79	1
19A385	LR122589	JUNCTION BOX	LR122589 JUNCTION BOX 3.0L AJ20P6 Petrol High / To: KA872020	$629.34	1
19A385	LR128883	BOX - FUSE	LR128883 BOX - FUSE 3.0L AJ20P6 Petrol High / From: KA872021	$597.90	1
19A385	LR133903	JUNCTION BOX	LR133903 JUNCTION BOX 3.0L AJ20D6 Diesel High / From: MA000001	$597.42	1
14335A	LR128888	CABLE - UNDERBODY	LR128888 CABLE - UNDERBODY With 5 Seat Configuration / Battery To Junction Box	$449.10	1
14335B	LR121218	CABLE	LR121218 CABLE Junction Box To Alternator / To: LA747267	$267.69	1
14335B	LR148280	CABLE	LR148280 CABLE Junction Box To Alternator / From: LA747268	$302.97	1
14335C	LR121223	CABLE	LR121223 CABLE Front MHEV Vehicle Juntion Box To DC/DC	$302.42	1
14335D	LR121224	CABLE	LR121224 CABLE 3.0L AJ20P6 Petrol High / Junction Box To Charger / To: MA999999	$407.61	1
14335D	LR121224	CABLE	LR121224 CABLE 3.0L AJ20P6 Petrol High / Junction Box To Charger / From: NA700000 / To: NA799999	$407.61	1
14335D	LR121224	CABLE	LR121224 CABLE 3.0L AJ20P6 Petrol High / Junction Box To Charger / From: NA200000 / To: NA235152	$407.61	1
14335D	LR174466	Wiring	LR174466 Wiring 3.0L AJ20P6 Petrol High / Junction Box To Charger / From: NA235153 / To: NA699999	$389.68	1
14335D	LR174466	Wiring	LR174466 Wiring 3.0L AJ20P6 Petrol High / Junction Box To Charger / From: PA000001	$389.68	1
14335E	LR121227	CABLE	LR121227 CABLE Busbar To DC/DC	$227.79	1
14335F	LR128890	CABLE - UNDERBODY	LR128890 CABLE - UNDERBODY With 7 Seat Configuration / Battery To Junction Box	$512.71	1
14488A	LR128994	CONNECTOR - CABLE	LR128994 CONNECTOR - CABLE Code A	$15.10	1
14488B	LR128992	CONNECTOR - CABLE	LR128992 CONNECTOR - CABLE Code B	$26.66	1
14536A	LR124589	CARRIER	LR124589 CARRIER 3.0L AJ20P6 Petrol High, With 7 Seat Configuration / Harness Bracket	$38.95	1
14536B	LR125218	BRACKET - MODULE	LR125218 BRACKET - MODULE 3.0L AJ20P6 Petrol High, With 7 Seat Configuration / Towbar Module Bracket	$153.24	1
