Rear Exhaust System (3.0 V6 D Gen2 Mono Turbo, Japanese Emission + Dpf, Eu6 + Dpf Emissions,...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0 V6 D Gen2 Mono Turbo, Japanese Emission + DPF, EU6 + DPF Emissions,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR090360 INSULATOR - RUBBER $24.11 To Order
Photo Part No Description Price (each) Stock
LR087159 SILENCER $2,303.58 To Order
LR087160 SILENCER $2,164.56 To Order
LR125103 PIPE - INTERMEDIATE $2,583.77 To Order
Photo Part No Description Price (each) Stock
LR090829 DAMPER - EXHAUST SYSTEM $93.06 To Order
Photo Part No Description Price (each) Stock
LR063031 BRACKET - WIRING CONNECTOR $16.79 To Order
Photo Part No Description Price (each) Stock
LR077709 CLAMP - EXHAUST $44.01 To Order
Photo Part No Description Price (each) Stock
WCL500030 CLAMP - EXHAUST $83.80 To Order
Photo Part No Description Price (each) Stock
LR105230 MUFFLER - REAR $839.24 To Order
Photo Part No Description Price (each) Stock
LR105235 MUFFLER - REAR $839.24 To Order
Photo Part No Description Price (each) Stock
LR110251 BRACKET - REAR MUFFLER $31.24 To Order
Photo Part No Description Price (each) Stock
LR110252 BRACKET - REAR MUFFLER $31.24 To Order
Photo Part No Description Price (each) Stock
LR101087 BRACKET - EXHAUST PIPE MOUNTING $43.16 To Order
Photo Part No Description Price (each) Stock
LR101088 BRACKET - EXHAUST PIPE MOUNTING $74.54 To Order
View All

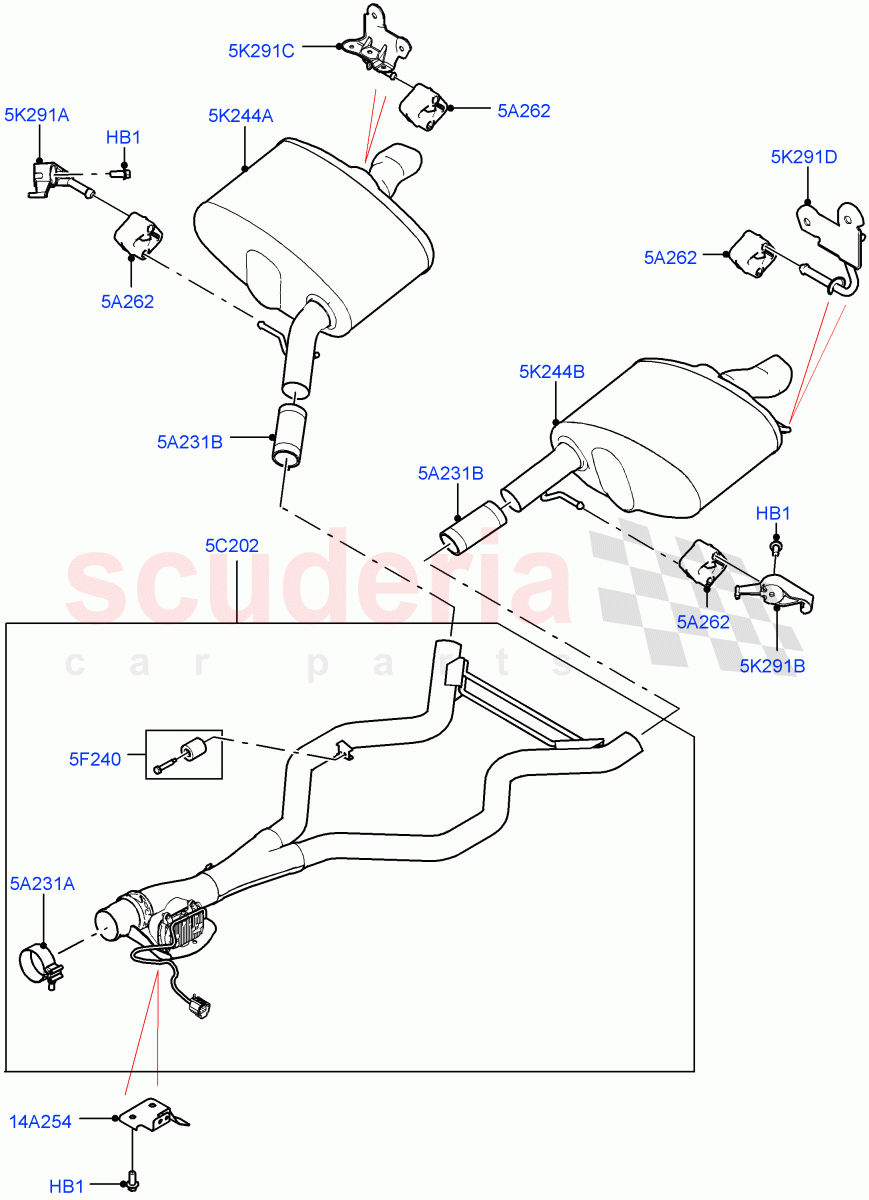

Rear Exhaust System (3.0 V6 D Gen2 Mono Turbo, Japanese Emission + DPF, EU6 + DPF Emissions, Proconve L6 Emissions, Stage V Plus DPF, LEV 160, 3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: JA000001
IN STOCK 		$2.29 2
5A231A LR077709
CLAMP - EXHAUST
70MM, Front / From: JA000001 		$44.01 1
5A231B WCL500030
CLAMP - EXHAUST
55MM, For Rear Muffler / From: JA000001 		$83.80 2
5A262 LR090360
INSULATOR - RUBBER
From: JA000001 		$24.11 4
5C202 LR087159
SILENCER
Proconve L6 Emissions / From: JA000001 / To: KA837512 		$2,303.58 1
5C202 LR087160
SILENCER
LEV 160 / From: JA000001 / To: KA837512 		$2,164.56 1
5C202 LR125103
PIPE - INTERMEDIATE
From: KA837513 		$2,583.77 1
5F240 LR090829
DAMPER - EXHAUST SYSTEM
LEV 160 / From: JA000001 		$93.06 1
5K244A LR105230
MUFFLER - REAR
RH / From: JA000001 		$839.24 1
5K244B LR105235
MUFFLER - REAR
LH / From: JA000001 		$839.24 1
5K291A LR110251
BRACKET - REAR MUFFLER
For Rear Muffler, RH Front / From: JA000001 		$31.24 1
5K291B LR110252
BRACKET - REAR MUFFLER
For Rear Muffler, LH Front / From: JA000001 		$31.24 1
5K291C LR101087
BRACKET - EXHAUST PIPE MOUNTING
For Rear Muffler, RH Rear / From: JA000001 		$43.16 1
5K291D LR101088
BRACKET - EXHAUST PIPE MOUNTING
For Rear Muffler, LH Rear / From: JA000001 		$74.54 1
14A254 LR063031
BRACKET - WIRING CONNECTOR
Proconve L6 Emissions / From: JA000001 		$16.79 1
