Name: Front Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, Stage V Plus DPF)
Rating: 4.2 (1 reviews)

Front Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, Stage V Plus DPF) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V DOHC V6 TC...

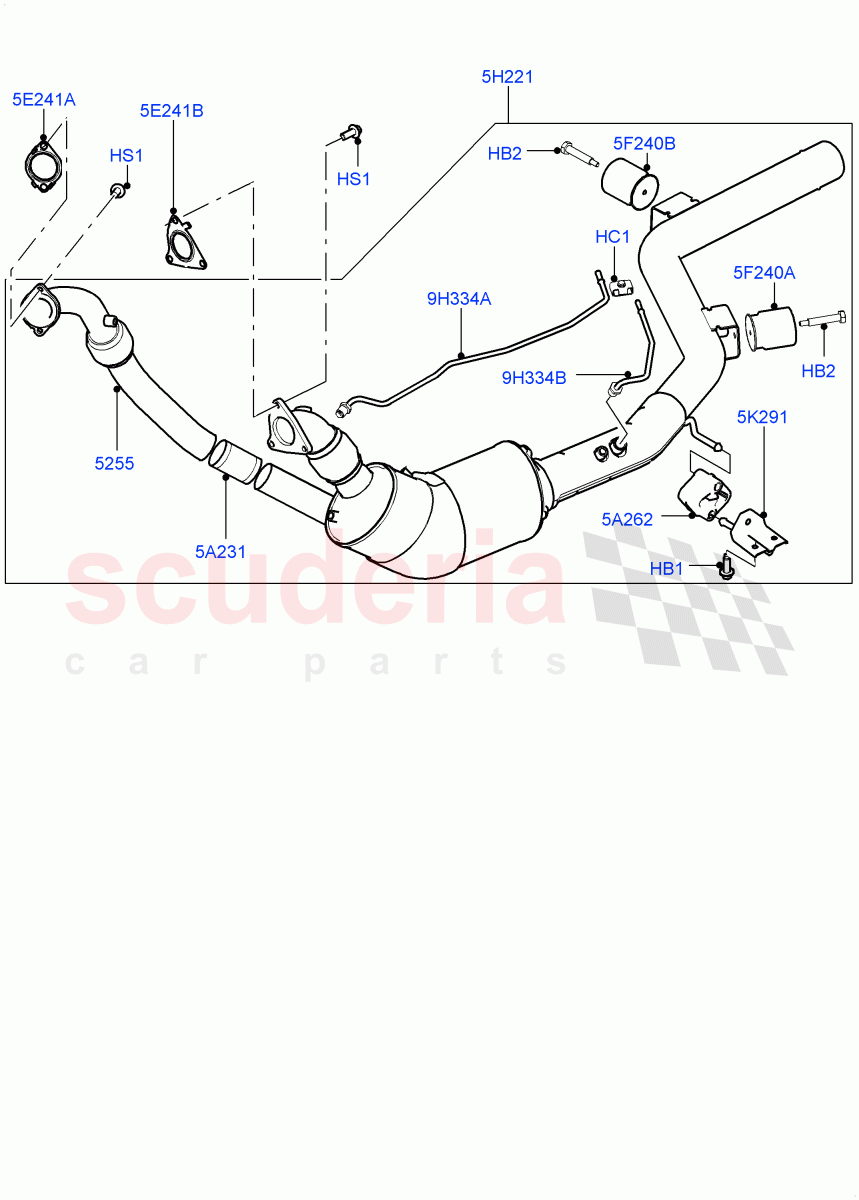

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049850	CLIP	$34.94	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038810	PIPE - EXHAUST	$652.22	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	$79.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$29.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039507	FILTER - DIESEL PARTICLE	$3,163.92	To Order
	LR068327	FILTER - DIESEL PARTICLE	$2,853.23	To Order
	LR087666	FILTER - DIESEL PARTICLE	$3,322.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035843	BRACKET - EXHAUST PIPE MOUNTING	$21.86	To Order
	LR068325	BRACKET - EXHAUST PIPE MOUNTING	$43.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016621	GASKET - EXHAUST PIPE	$20.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016619	GASKET - EXHAUST PIPE	$21.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR042469	DAMPER - DAMPING MASS	$58.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042468	DAMPER - DAMPING MASS	$70.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049848	TUBE - EXHAUST PRESSURE	$51.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049849	TUBE - EXHAUST PRESSURE	$50.14	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.29	3
HB2	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking	$2.63	2
HC1	LR049850	CLIP	LR049850 CLIP Exhaust Gas Pressure, Tube	$34.94	1
HS1	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM	$2.95	5
5A231	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, Downpipe	$79.87	1
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	$29.62	1
5E241A	LR016621	GASKET - EXHAUST PIPE	LR016621 GASKET - EXHAUST PIPE RH, Downpipe	$20.62	1
5E241B	LR016619	GASKET - EXHAUST PIPE IN STOCK	LR016619 GASKET - EXHAUST PIPE LH, Downpipe IN STOCK	$21.98	1
5F240A	LR042469	DAMPER - DAMPING MASS	LR042469 DAMPER - DAMPING MASS Front	$58.97	1
5F240B	LR042468	DAMPER - DAMPING MASS	LR042468 DAMPER - DAMPING MASS Rear	$70.14	1
5H221	LR039507	FILTER - DIESEL PARTICLE	LR039507 FILTER - DIESEL PARTICLE Downpipe / To: EA503853	$3,163.92	1
5H221	LR068327	FILTER - DIESEL PARTICLE	LR068327 FILTER - DIESEL PARTICLE Downpipe / From: EA503854 / To: GA593482	$2,853.23	1
5H221	LR087666	FILTER - DIESEL PARTICLE	LR087666 FILTER - DIESEL PARTICLE Downpipe / From: GA593483	$3,322.09	1
5K291	LR035843	BRACKET - EXHAUST PIPE MOUNTING	LR035843 BRACKET - EXHAUST PIPE MOUNTING Front / To: FA999999	$21.86	1
5K291	LR068325	BRACKET - EXHAUST PIPE MOUNTING	LR068325 BRACKET - EXHAUST PIPE MOUNTING Front / From: GA000001	$43.03	1
9H334A	LR049848	TUBE - EXHAUST PRESSURE	LR049848 TUBE - EXHAUST PRESSURE Exhaust Gas Pressure, Front	$51.15	1
9H334B	LR049849	TUBE - EXHAUST PRESSURE	LR049849 TUBE - EXHAUST PRESSURE Exhaust Gas Pressure, Rear	$50.14	1
5255	LR038810	PIPE - EXHAUST	LR038810 PIPE - EXHAUST Downpipe	$652.22	1
