Name: Rear Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow) ((V) TOHA999999)
Rating: 5.0 (1 reviews)

Rear Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow) ((V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6...

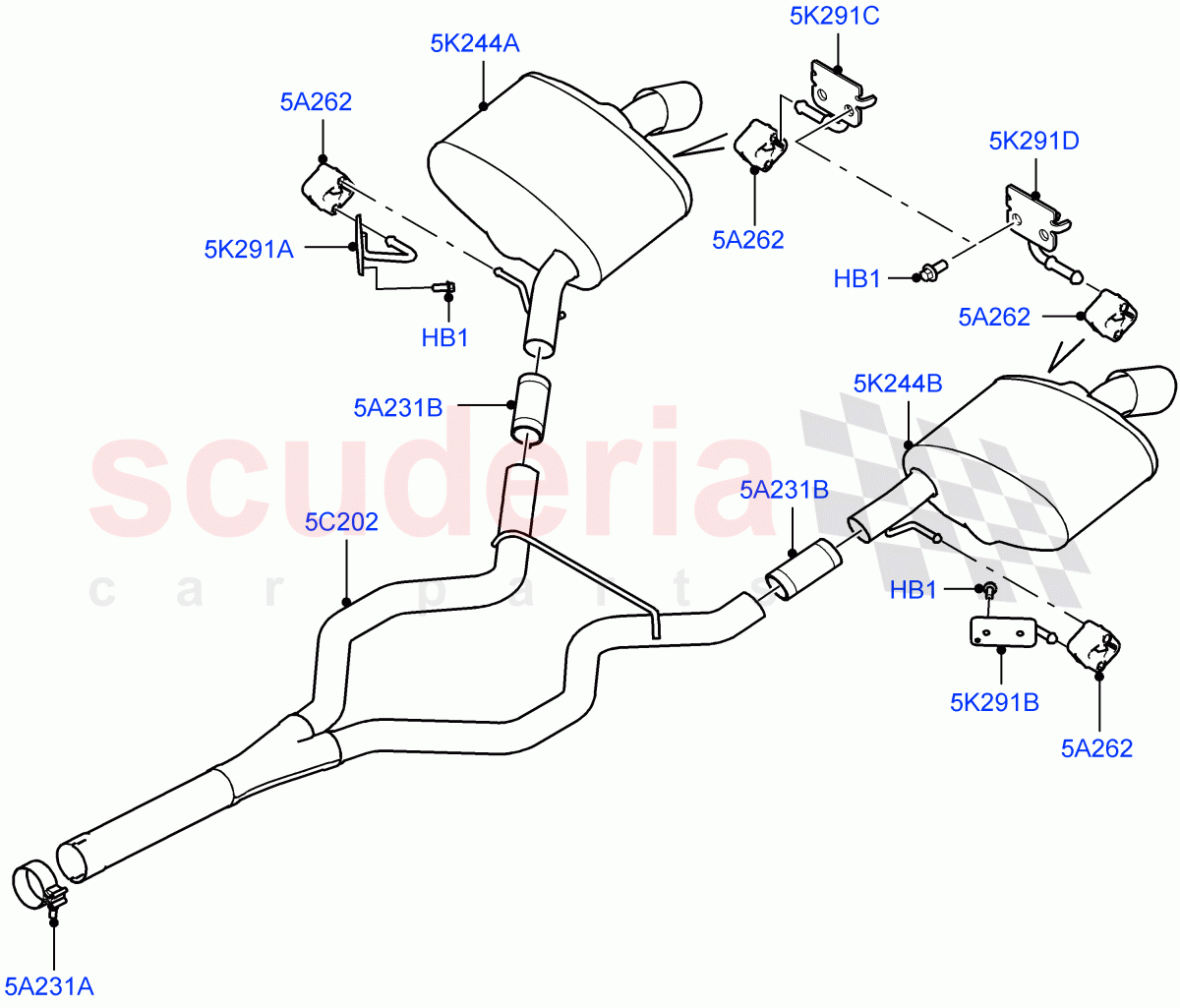

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$29.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047831	PIPE - INTERMEDIATE	$659.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$30.99	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$83.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047833	MUFFLER - FRONT	$717.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047836	MUFFLER - REAR	$770.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$32.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$32.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047860	BRACKET - EXHAUST PIPE MOUNTING	$32.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047861	BRACKET - EXHAUST PIPE MOUNTING	$70.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.29	8
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Middle	$30.99	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Muffler	$83.92	2
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	$29.69	4
5C202	LR047831	PIPE - INTERMEDIATE	LR047831 PIPE - INTERMEDIATE Middle	$659.75	1
5K244A	LR047833	MUFFLER - FRONT	LR047833 MUFFLER - FRONT Dual Bright Horizontal Pipe / RH	$717.93	1
5K244B	LR047836	MUFFLER - REAR	LR047836 MUFFLER - REAR Dual Bright Horizontal Pipe / LH	$770.46	1
5K291A	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING RH, Front	$32.89	1
5K291B	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING LH, Front	$32.89	1
5K291C	LR047860	BRACKET - EXHAUST PIPE MOUNTING	LR047860 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / RH, Rear	$32.06	1
5K291D	LR047861	BRACKET - EXHAUST PIPE MOUNTING	LR047861 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / LH, Rear	$70.06	1

Rear Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V Dohc V6 Tc Diesel, 3.0L 24V V6...

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6...
