Name: Electrical Wiring - Engine And Dash (4.4L DOHC DITC V8 Diesel)
Rating: 4.6 (1 reviews)

Electrical Wiring - Engine And Dash (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

View All

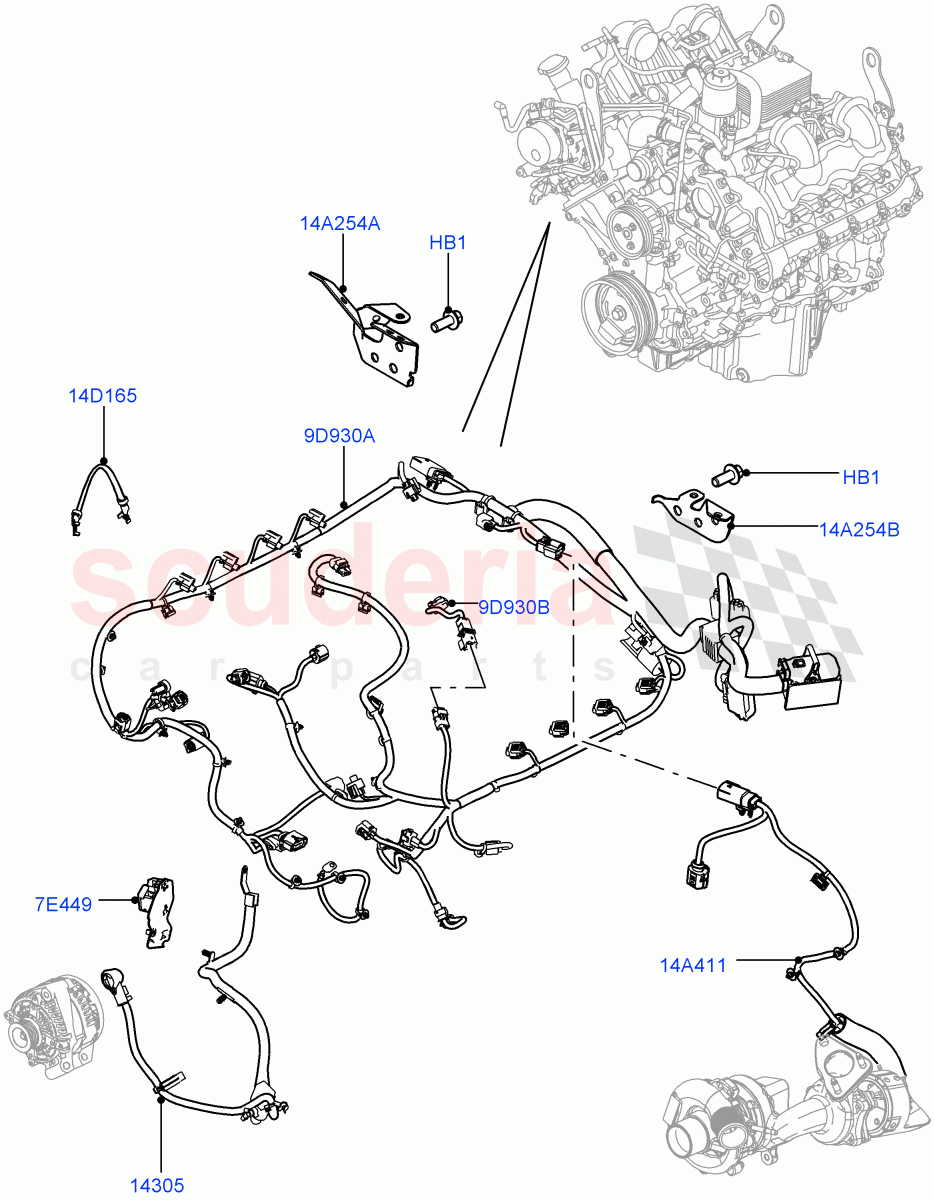

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Electrical Wiring - Engine And Dash (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR040553	WIRE - ALTERNATOR	$193.10	To Order
	LR064082	WIRE - ALTERNATOR	$133.64	To Order
	LR076007	WIRE - ALTERNATOR	$105.05	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR085666	TERMINAL - BATTERY	$106.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042326	WIRE - EGR	$90.32	To Order
	LR085462	WIRE - EGR	$80.70	To Order
	LR114019	WIRE - EGR	$84.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040625	WIRE - ENGINE EARTH	$52.69	To Order
	LR064072	WIRE - ENGINE EARTH	$62.85	To Order
	LR076900	WIRE - ENGINE EARTH	$42.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036132	WIRING - ENGINE	$864.54	To Order
	LR070553	WIRING - ENGINE	$2,314.79	To Order
	LR084901	WIRING - ENGINE	$1,871.20	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR112662	WIRE - FUEL PRESSURE SENSOR	$74.37	To Order
	LR085463	WIRE - FUEL PRESSURE SENSOR	$73.67	To Order
	LR112662	WIRE - FUEL PRESSURE SENSOR	$74.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022641	BRACKET - WIRING	$5.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR046917	BRACKET - WIRING	$10.91	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.29	3
7E449	LR085666	TERMINAL - BATTERY	LR085666 TERMINAL - BATTERY Battery Cables / From: HA000001	$106.37	1
9D930A	LR036132	WIRING - ENGINE	LR036132 WIRING - ENGINE Engine / To: FA999999	$864.54	1
9D930A	LR070553	WIRING - ENGINE	LR070553 WIRING - ENGINE Engine / From: GA000001 / To: GA571568	$2,314.79	1
9D930A	LR084901	WIRING - ENGINE	LR084901 WIRING - ENGINE Engine / From: GA571569 / To: GA599282	$1,871.20	1
9D930A	LR095345	WIRING - ENGINE	LR095345 WIRING - ENGINE Engine / From: GA599283 / To: HA179681	$1,734.40	1
9D930A	LR110619	WIRING - ENGINE	LR110619 WIRING - ENGINE Engine / From: HA179682 / To: JA194738	$1,881.22	1
9D930A	LR116440	WIRING - ENGINE	LR116440 WIRING - ENGINE Engine / From: JA194739	$1,647.45	1
9D930B	LR112662	WIRE - FUEL PRESSURE SENSOR	LR112662 WIRE - FUEL PRESSURE SENSOR Fuel Pressure Sensor / To: FA999999	$74.37	1
9D930B	LR085463	WIRE - FUEL PRESSURE SENSOR	LR085463 WIRE - FUEL PRESSURE SENSOR Fuel Pressure Sensor / From: GA000001 / To: HA179681	$73.67	1
9D930B	LR112662	WIRE - FUEL PRESSURE SENSOR	LR112662 WIRE - FUEL PRESSURE SENSOR Fuel Pressure Sensor / From: HA179682	$74.37	1
14A254A	LR022641	BRACKET - WIRING	LR022641 BRACKET - WIRING RH, Engine Harness	$5.25	1
14A254B	LR046917	BRACKET - WIRING	LR046917 BRACKET - WIRING LH, Engine Harness	$10.91	1
14A411	LR042326	WIRE - EGR	LR042326 WIRE - EGR EGR Valve, Turbocharger / To: FA999999	$90.32	1
14A411	LR085462	WIRE - EGR	LR085462 WIRE - EGR EGR Valve, Turbocharger / From: GA000001 / To: JA183342	$80.70	1
14A411	LR114019	WIRE - EGR	LR114019 WIRE - EGR EGR Valve, Turbocharger / From: JA183343	$84.37	1
14D165	LR040625	WIRE - ENGINE EARTH	LR040625 WIRE - ENGINE EARTH Engine Earth / To: EA999999	$52.69	1
14D165	LR064072	WIRE - ENGINE EARTH	LR064072 WIRE - ENGINE EARTH Engine Earth / From: FA000001 / To: FA999999	$62.85	1
14D165	LR076900	WIRE - ENGINE EARTH	LR076900 WIRE - ENGINE EARTH Engine Earth / From: GA000001	$42.28	1
14305	LR040553	WIRE - ALTERNATOR	LR040553 WIRE - ALTERNATOR To: EA999999	$193.10	1
14305	LR064082	WIRE - ALTERNATOR	LR064082 WIRE - ALTERNATOR From: FA000001 / To: FA999999	$133.64	1
14305	LR076007	WIRE - ALTERNATOR	LR076007 WIRE - ALTERNATOR From: GA000001 / To: GA599282	$105.05	1
14305	LR090097	WIRE - ALTERNATOR	LR090097 WIRE - ALTERNATOR From: GA599283 / To: GA999999	$122.73	1
14305	LR087738	WIRE - ALTERNATOR	LR087738 WIRE - ALTERNATOR From: HA000001 / To: HA172139	$170.98	1
14305	LR107819	WIRE - ALTERNATOR	LR107819 WIRE - ALTERNATOR From: HA172140 / To: JA999999	$192.62	1
14305	LR120987	WIRE - ALTERNATOR	LR120987 WIRE - ALTERNATOR From: KA000001	$209.42	1

Electrical Wiring - Engine And Dash (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Electrical Wiring - Engine And Dash (4.4L DOHC DITC V8 Diesel)
