Name: Hybrid Electrical Modules (MHEV Battery, Duct, Fan) (Electric Engine Battery-MHEV)
Rating: 5.0 (1 reviews)

View All

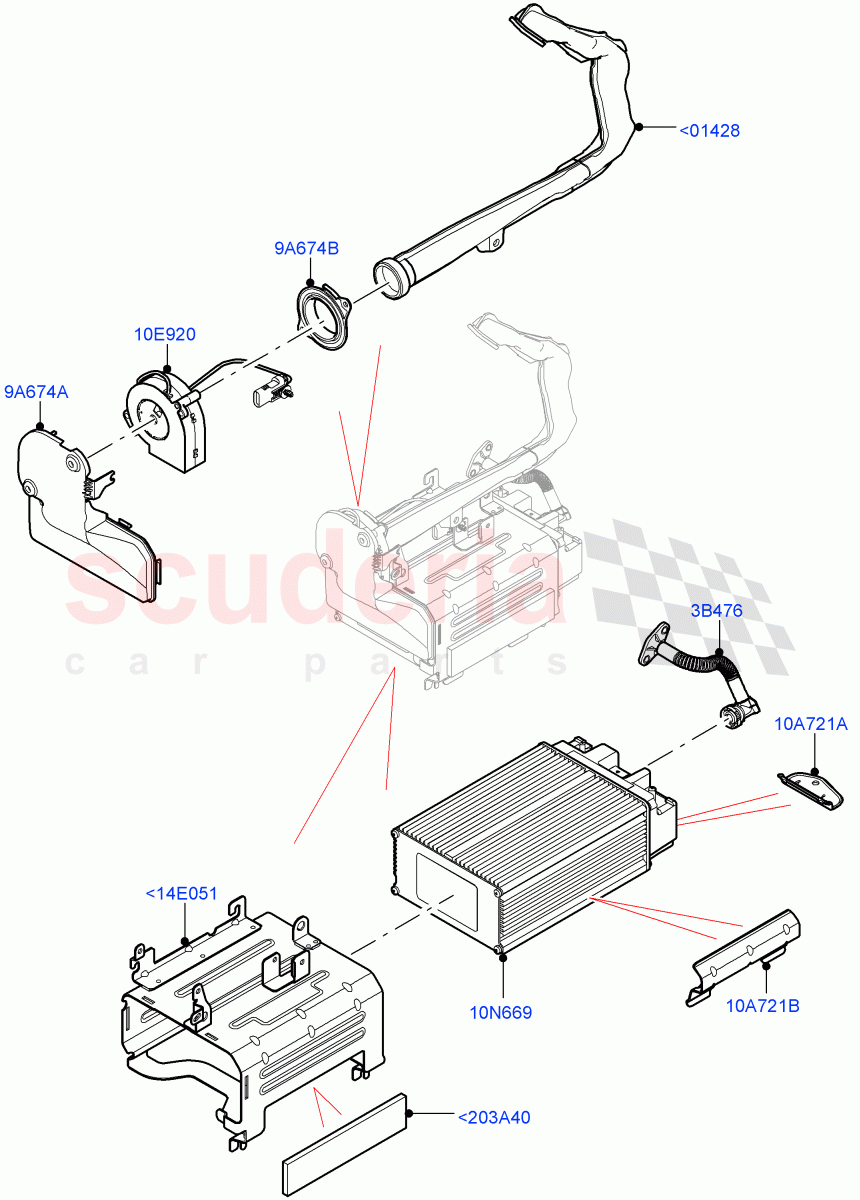

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR121370	HOSE - VENT	$12.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120513	DUCT - AIR VENT	$103.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123053	FAN - AUXILIARY COOLING	$162.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125234	DUCT - AIR	$77.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121203	FOAM - SEALING	$8.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121197	CLAMP - BATTERY	$89.93	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<14E051	LR121195	TRAY - BATTERY	LR121195 TRAY - BATTERY To: KA870577	$228.04	1
<14E051	LR135262	TRAY - BATTERY	LR135262 TRAY - BATTERY From: KA870578 / To: LA743407	$383.79	1
<14E051	LR140373	TRAY - BATTERY	LR140373 TRAY - BATTERY From: LA743408	$355.38	1
<203A40	LR121203	FOAM - SEALING	LR121203 FOAM - SEALING	$8.69	1
<01428	LR120513	DUCT - AIR VENT	LR120513 DUCT - AIR VENT	$103.37	1
3B476	LR121370	HOSE - VENT	LR121370 HOSE - VENT	$12.64	1
9A674A	LR121217	DUCT - AIR	LR121217 DUCT - AIR Battery Duct / To: KA875914	$81.48	1
9A674A	LR134474	DUCT - AIR	LR134474 DUCT - AIR Battery Duct / From: KA875915 / To: LA743407	$86.78	1
9A674A	LR148285	DUCT - AIR	LR148285 DUCT - AIR Battery Duct / From: LA743408	$96.36	1
9A674B	LR125234	DUCT - AIR	LR125234 DUCT - AIR Connection Cabin Duct	$77.66	1
10A721A	LR121197	CLAMP - BATTERY	LR121197 CLAMP - BATTERY Clamp Front	$89.93	1
10A721B	LR121196	CLAMP - BATTERY	LR121196 CLAMP - BATTERY Clamp Left / To: KA875914	$90.78	1
10A721B	LR135103	CLAMP - BATTERY	LR135103 CLAMP - BATTERY Clamp Left / From: KA875915	$417.28	1
10E920	LR123053	FAN - AUXILIARY COOLING	LR123053 FAN - AUXILIARY COOLING	$162.84	1
10N669	LR115327	LITHIUM ION BATTERY	LR115327 LITHIUM ION BATTERY To: LA705101	$1,324.10	1
10N669	LR139593	LITHIUM ION BATTERY	LR139593 LITHIUM ION BATTERY From: LA705102	$1,103.65	1

Hybrid Electrical Modules (Mhev Battery, Duct, Fan) (Electric Engine Battery-Mhev)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]
