Hybrid Electrical Modules (Inverter) (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] - Hybrid Electrical Modules (Inverter) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR101850 CONVERTER - VOLTAGE $966.95 To Order
LR137737 CONVERTER - VOLTAGE $865.21 To Order
LR174548 Converter - Voltage $970.85 To Order
Photo Part No Description Price (each) Stock
LR101846 POWER INVERTER $2,447.93 To Order
LR139606 POWER INVERTER $3,064.18 To Order
LR147604 POWER INVERTER $2,974.28 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR101847 TUBE - BREATHER $83.00 To Order
Photo Part No Description Price (each) Stock
LR101848 TUBE - BREATHER $92.94 To Order
View All

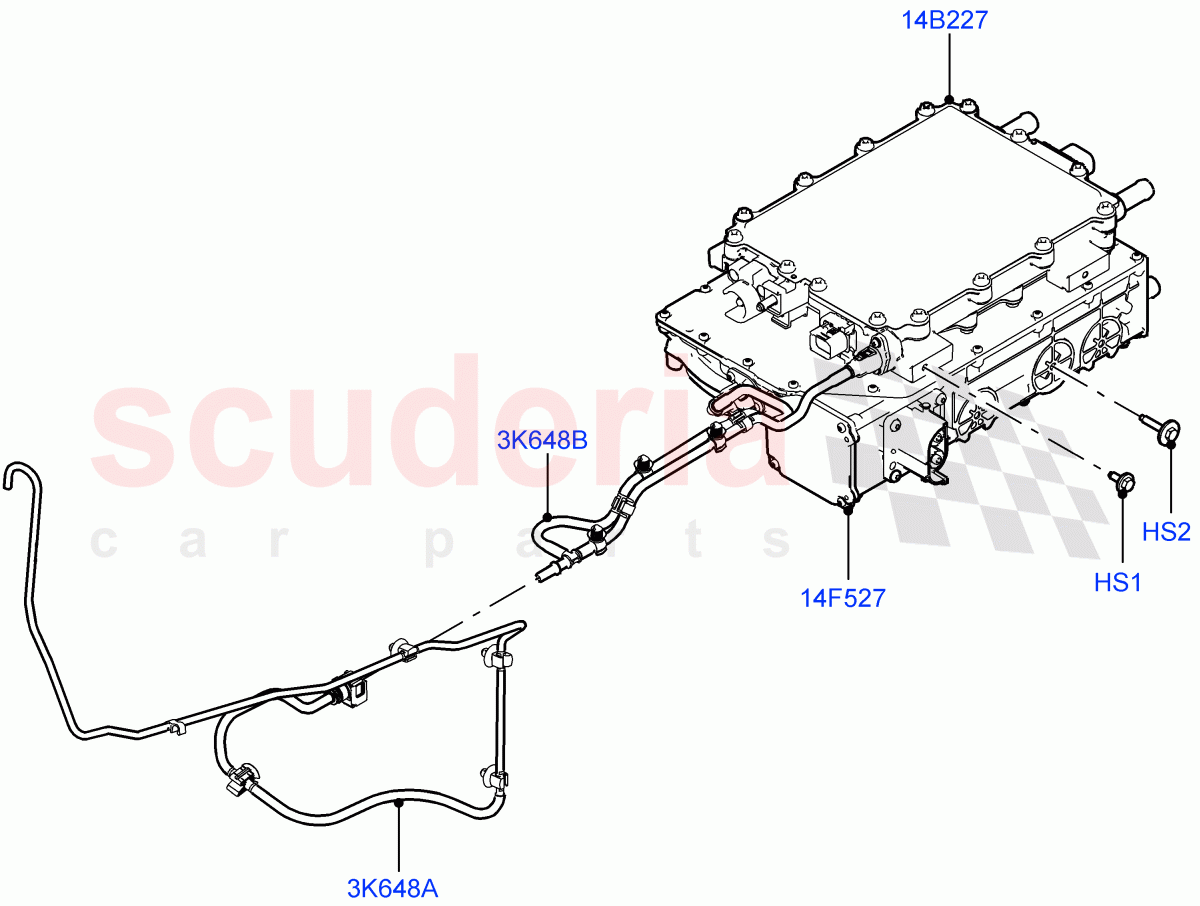

Hybrid Electrical Modules (Inverter) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 KYP500400
SCREW AND WASHER
Hexagonal Head, M6 X 16MM / From: JA000001 		$0.61 4
HS2 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: JA000001 		$4.21 6
3K648A LR101847
TUBE - BREATHER
Inverter Breather Trans Assembly / From: JA000001 		$83.00 1
3K648B LR101848
TUBE - BREATHER
Inverter And DC/DC Link Assembly / From: JA000001 		$92.94 1
14B227 LR101850
CONVERTER - VOLTAGE
Direct Current to Direct Current (DC/DC) Converter / From: JA000001 / To: LA710090 		$966.95 1
14B227 LR137737
CONVERTER - VOLTAGE
Direct Current to Direct Current (DC/DC) Converter / From: LA710091 / To: NA225995 		$865.21 1
14B227 LR174548
Converter - Voltage
Direct Current to Direct Current (DC/DC) Converter / From: NA225996 		$970.85 1
14F527 LR101846
POWER INVERTER
From: JA000001 / To: LA733016 		$2,447.93 1
14F527 LR139606
POWER INVERTER
From: LA733017 / To: LA745906 		$3,064.18 1
14F527 LR147604
POWER INVERTER
From: LA745907 / To: MA755118 		$2,974.28 1
14F527 LR149850
POWER INVERTER
From: MA755119 		$2,837.22 1
