Turbocharger (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Turbocharger (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 2.0L AJ200P Hi PHEV, 2.0L I4...

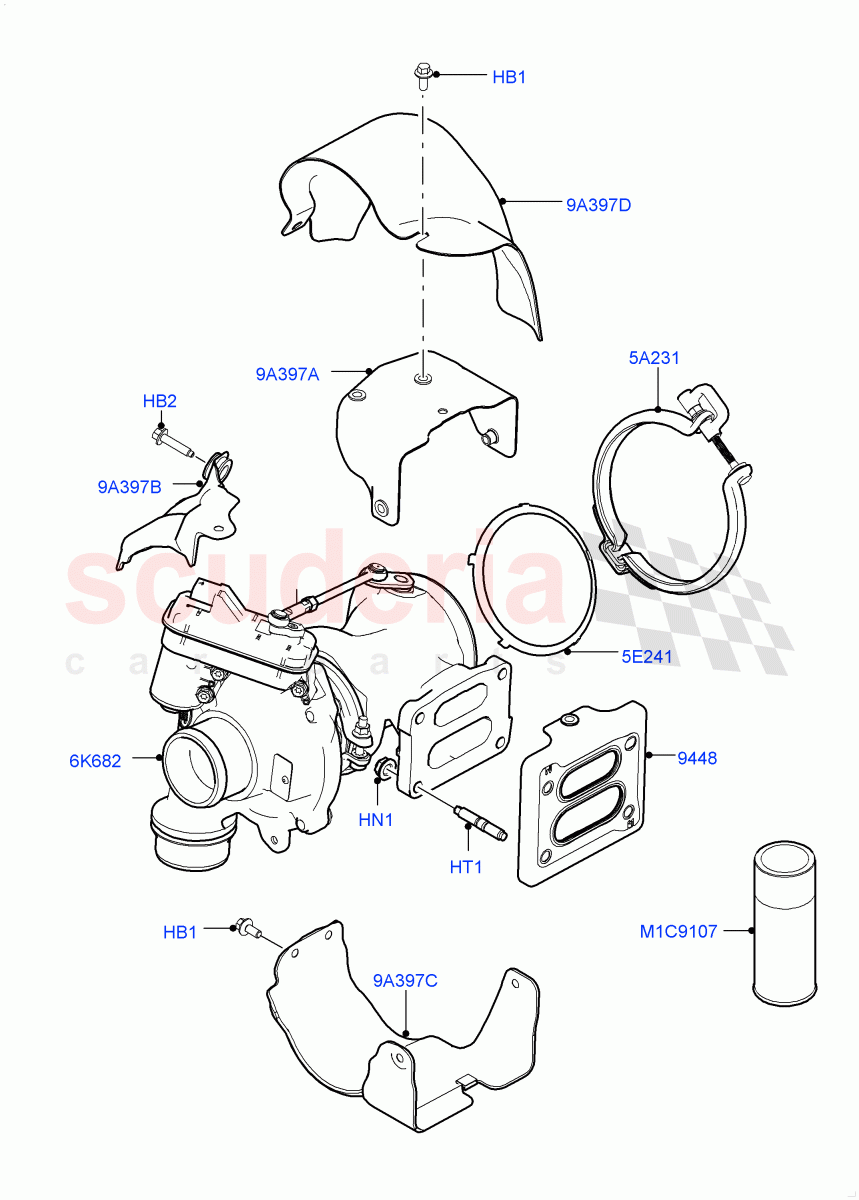

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	$3.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092112	NUT	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092114	STUD	$3.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091554	GASKET - EXHAUST MANIFOLD	$26.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105414	CLAMP - EXHAUST	$49.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$20.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111086	TURBOCHARGER	$2,845.95	To Order
	LR116338	TURBOCHARGER	$1,814.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091550	HEAT SHIELD - TURBOCHARGER	$29.40	To Order
	LR091550	HEAT SHIELD - TURBOCHARGER	$29.40	To Order
	LR091550	HEAT SHIELD - TURBOCHARGER	$29.40	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091549	HEAT SHIELD - TURBOCHARGER	$24.89	To Order
	LR091549	HEAT SHIELD - TURBOCHARGER	$24.89	To Order
	LR091549	HEAT SHIELD - TURBOCHARGER	$24.89	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091551	HEAT SHIELD - TURBOCHARGER	$23.59	To Order
	LR091551	HEAT SHIELD - TURBOCHARGER	$23.59	To Order
	LR091551	HEAT SHIELD - TURBOCHARGER	$23.59	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091546	HEAT SHIELD - TURBOCHARGER	$36.13	To Order
	LR146864	HEAT SHIELD - TURBOCHARGER	$34.83	To Order
	LR146864	HEAT SHIELD - TURBOCHARGER	$34.83	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR164809	GREASE - HIGH TEMPERATURE	$79.33	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield / From: JA000001	$2.77	8
HB2	LR091557	BOLT	LR091557 BOLT M6 X 25MM, Shield / From: JA000001	$3.01	1
HN1	LR092112	NUT	LR092112 NUT M8, Turbocharger / From: JA000001	$2.16	4
HT1	LR092114	STUD	LR092114 STUD M8 X 17.5 + M8 X 20, Turbocharger / From: JA000001	$3.58	4
M1C9107	LR164809	GREASE - HIGH TEMPERATURE	LR164809 GREASE - HIGH TEMPERATURE High Temperature, Wastegate Rod / From: JA000001	$79.33	1
5A231	LR105414	CLAMP - EXHAUST	LR105414 CLAMP - EXHAUST 120MM, Turbocharger Outlet / From: JA000001	$49.67	1
5E241	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER Turbocharger Outlet / From: JA000001	$20.78	1
6K682	LR111086	TURBOCHARGER	LR111086 TURBOCHARGER 2.0L I4 High DOHC AJ200 Petrol / From: JA000001 / To: JA189720	$2,845.95	1
6K682	LR116338	TURBOCHARGER	LR116338 TURBOCHARGER 2.0L AJ200P Hi PHEV / From: JA189721	$1,814.63	1
9A397A	LR091550	HEAT SHIELD - TURBOCHARGER	LR091550 HEAT SHIELD - TURBOCHARGER Top / From: JA000001 / To: MA999999	$29.40	1
9A397A	LR091550	HEAT SHIELD - TURBOCHARGER	LR091550 HEAT SHIELD - TURBOCHARGER Top / From: NA700000 / To: NA799999	$29.40	1
9A397A	LR091550	HEAT SHIELD - TURBOCHARGER	LR091550 HEAT SHIELD - TURBOCHARGER Top / From: NA200000 / To: NA234035	$29.40	1
9A397A	LR174021	Heat Shield	LR174021 Heat Shield Top / From: NA234036 / To: NA699999	$68.37	1
9A397B	LR091549	HEAT SHIELD - TURBOCHARGER	LR091549 HEAT SHIELD - TURBOCHARGER Outer, Top / From: JA000001 / To: MA999999	$24.89	1
9A397B	LR091549	HEAT SHIELD - TURBOCHARGER	LR091549 HEAT SHIELD - TURBOCHARGER Outer, Top / From: NA700000 / To: NA799999	$24.89	1
9A397B	LR091549	HEAT SHIELD - TURBOCHARGER	LR091549 HEAT SHIELD - TURBOCHARGER Outer, Top / From: NA200000 / To: NA204201	$24.89	1
9A397B	LR161658	HEAT SHIELD - TURBOCHARGER	LR161658 HEAT SHIELD - TURBOCHARGER Outer, Top / From: NA204202 / To: NA699999	$26.45	1
9A397B	LR161658	HEAT SHIELD - TURBOCHARGER	LR161658 HEAT SHIELD - TURBOCHARGER Outer, Top / From: PA000001	$26.45	1
9A397C	LR091551	HEAT SHIELD - TURBOCHARGER	LR091551 HEAT SHIELD - TURBOCHARGER Lower / From: JA000001 / To: MA999999	$23.59	1
9A397C	LR091551	HEAT SHIELD - TURBOCHARGER	LR091551 HEAT SHIELD - TURBOCHARGER Lower / From: NA700000 / To: NA799999	$23.59	1
9A397C	LR091551	HEAT SHIELD - TURBOCHARGER	LR091551 HEAT SHIELD - TURBOCHARGER Lower / From: NA200000 / To: NA204201	$23.59	1
9A397C	LR161659	HEAT SHIELD - TURBOCHARGER	LR161659 HEAT SHIELD - TURBOCHARGER Lower / From: NA204202 / To: NA699999	$35.78	1
9A397C	LR161659	HEAT SHIELD - TURBOCHARGER	LR161659 HEAT SHIELD - TURBOCHARGER Lower / From: PA000001	$35.78	1
9A397D	LR091546	HEAT SHIELD - TURBOCHARGER	LR091546 HEAT SHIELD - TURBOCHARGER From: JA000001 / To: MA757320	$36.13	1
9A397D	LR146864	HEAT SHIELD - TURBOCHARGER	LR146864 HEAT SHIELD - TURBOCHARGER From: MA757321 / To: MA999999	$34.83	1
9A397D	LR146864	HEAT SHIELD - TURBOCHARGER	LR146864 HEAT SHIELD - TURBOCHARGER From: NA700000 / To: NA799999	$34.83	1
9A397D	LR146864	HEAT SHIELD - TURBOCHARGER	LR146864 HEAT SHIELD - TURBOCHARGER From: NA200000 / To: NA234984	$34.83	1
9A397D	LR174652	Heat Shield	LR174652 Heat Shield From: NA234985 / To: NA699999	$40.52	1
9448	LR091554	GASKET - EXHAUST MANIFOLD	LR091554 GASKET - EXHAUST MANIFOLD Manifold To Turbocharger / From: JA000001	$26.20	1
