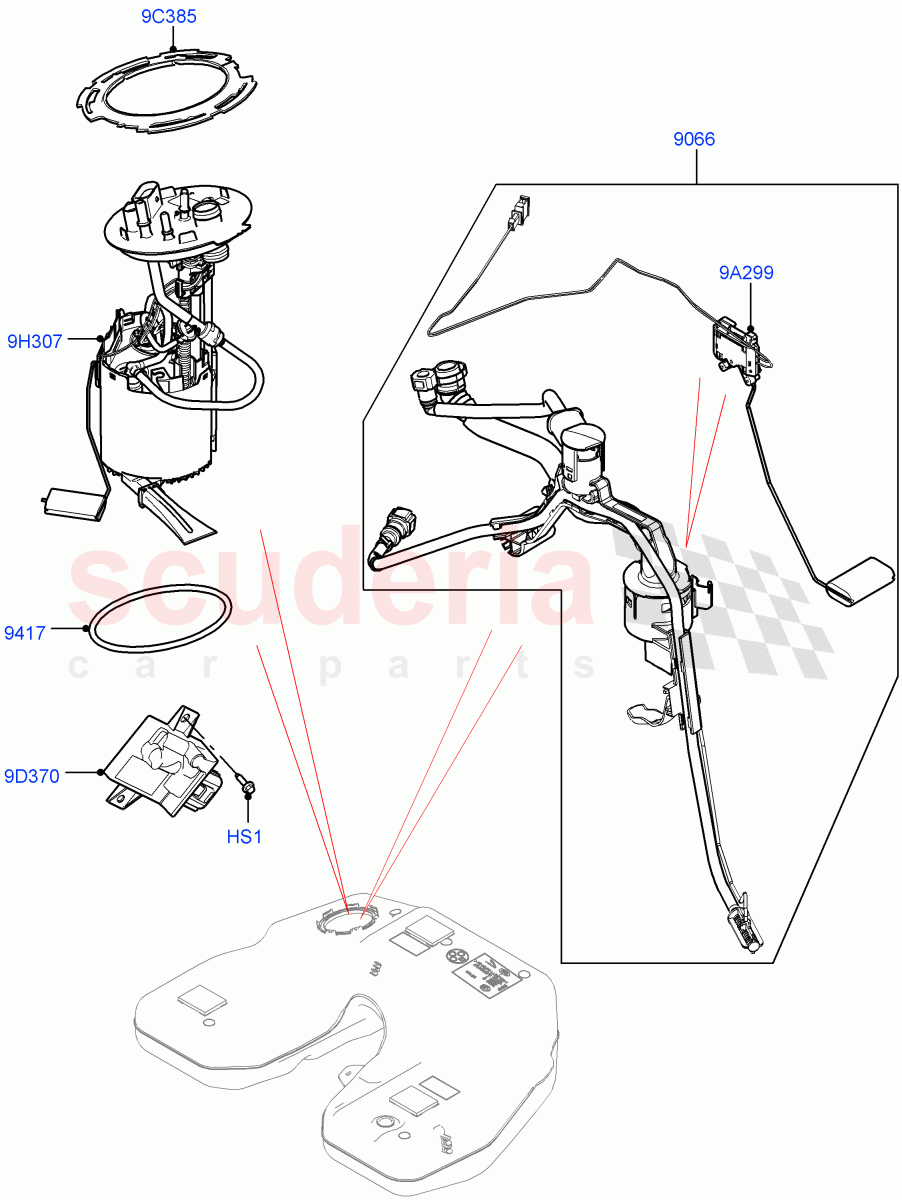

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	$3.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086498	SENSOR - FUEL LEVEL	$375.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR086518	SENDER - FUEL TANK	$148.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087019	RING - RETAINING	$31.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101793	SENDER AND PUMP	$672.19	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR066438	SCREW	LR066438 SCREW Hexagonal Head, M6 X 20MM / From: JA000001	$3.08	2
9A299	LR086518	SENDER - FUEL TANK	LR086518 SENDER - FUEL TANK LH / From: JA000001	$148.98	1
9C385	LR087019	RING - RETAINING	LR087019 RING - RETAINING From: JA000001	$31.68	1
9D370	LR172880	CONTROL - FUEL PUMP DRIVE	LR172880 CONTROL - FUEL PUMP DRIVE From: JA000001 / To: MA787852	$233.62	1
9D370	LR153984	CONTROL - FUEL PUMP DRIVE	LR153984 CONTROL - FUEL PUMP DRIVE From: MA787853	$225.72	1
9H307	LR101793	SENDER AND PUMP	LR101793 SENDER AND PUMP From: JA000001	$672.19	1
9066	LR086498	SENSOR - FUEL LEVEL	LR086498 SENSOR - FUEL LEVEL From: JA000001	$375.09	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: JA000001 IN STOCK	$10.61	1
