Name: Fuel Pump And Sender Unit (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)
Rating: 4.6 (1 reviews)

View All

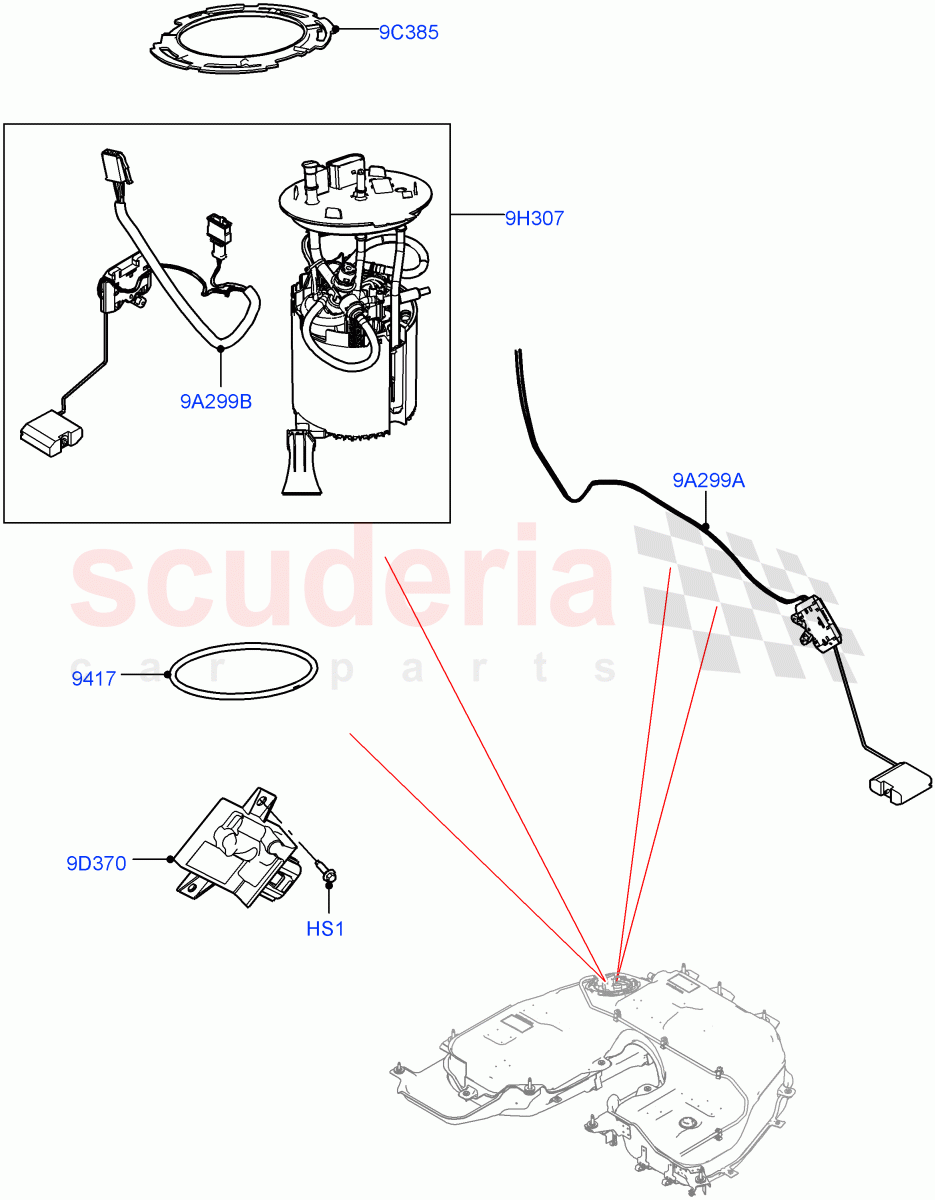

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	$3.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR116192	SENDER - FUEL TANK	$139.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122379	SENDER - FUEL TANK	$127.59	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR066438	SCREW	LR066438 SCREW Hexagonal Head, M6 X 20MM / From: JA000001	$3.06	2
9A299A	LR116192	SENDER - FUEL TANK	LR116192 SENDER - FUEL TANK LH / From: JA000001	$139.14	1
9A299B	LR122379	SENDER - FUEL TANK	LR122379 SENDER - FUEL TANK RH / From: JA000001	$127.59	1
9C385	LR082729	RING - RETAINING	LR082729 RING - RETAINING From: JA000001 / To: LA999999	$27.04	1
9C385	LR146156	RING - RETAINING	LR146156 RING - RETAINING From: MA000001	$30.10	1
9D370	LR172880	CONTROL - FUEL PUMP DRIVE	LR172880 CONTROL - FUEL PUMP DRIVE From: JA000001 / To: MA787852	$232.46	1
9D370	LR153984	CONTROL - FUEL PUMP DRIVE	LR153984 CONTROL - FUEL PUMP DRIVE From: MA787853	$224.60	1
9H307	LR116191	SENDER AND PUMP	LR116191 SENDER AND PUMP From: JA000001 / To: LA704289	$657.58	1
9H307	LR138425	SENDER AND PUMP	LR138425 SENDER AND PUMP From: LA704290	$657.58	1
9417	LR117476	GASKET IN STOCK	LR117476 GASKET O-Ring / From: JA000001 IN STOCK	$10.55	1

Fuel Pump And Sender Unit (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]
