Name: Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, LHD) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, LHD) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, LHD) ((V)...

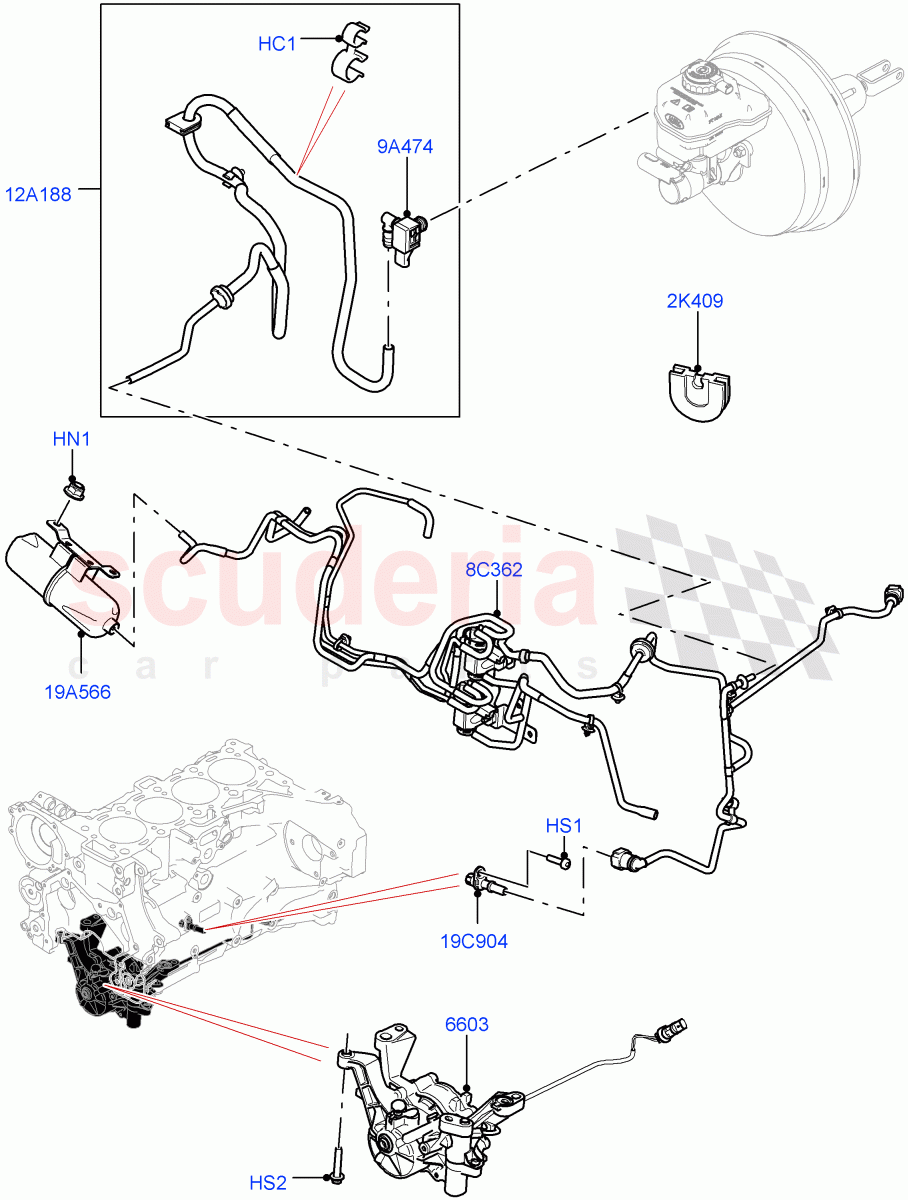

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR049401	CLIP - DOUBLE	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087668	PUMP - OIL & VACUUM	$554.78	To Order
	LR110501	PUMP - OIL & VACUUM	$605.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081604	GROMMET - BRAKE PIPE	$5.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082320	HOSE - VACUUM CONTROL HARNESS	$336.07	To Order
	LR100558	HOSE - VACUUM CONTROL HARNESS	$484.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081631	SENSOR - VACUUM	$88.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087511	HOSE - VACUUM	$229.18	To Order
	LR099160	HOSE - VACUUM	$193.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082299	RESERVOIR - VACUUM	$88.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148195	CONNECTOR - VACUUM TUBE	$27.86	To Order
	LR148195	CONNECTOR - VACUUM TUBE	$27.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR049401	CLIP - DOUBLE	LR049401 CLIP - DOUBLE Double, To Vacuum Hose / From: HA000001	$2.35	1
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6, Reservoir / From: HA000001 IN STOCK	$0.60	2
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM, Pump - Vacuum / From: HA000001	$2.51	4
HS2	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: HA000001	$1.42	1
2K409	LR081604	GROMMET - BRAKE PIPE	LR081604 GROMMET - BRAKE PIPE Blanking / From: HA000001	$5.97	1
8C362	LR082320	HOSE - VACUUM CONTROL HARNESS	LR082320 HOSE - VACUUM CONTROL HARNESS EU6 + DPF Emissions / Vacuum Control Harness / From: HA000001	$336.07	1
8C362	LR100558	HOSE - VACUUM CONTROL HARNESS	LR100558 HOSE - VACUUM CONTROL HARNESS EU6D Diesel + DPF Emissions / Vacuum Control Harness / From: JA000001	$484.42	1
9A474	LR081631	SENSOR - VACUUM	LR081631 SENSOR - VACUUM From: HA000001	$88.99	1
12A188	LR087511	HOSE - VACUUM	LR087511 HOSE - VACUUM To Brake Booster / From: HA000001 / To: HA999999	$229.18	1
12A188	LR099160	HOSE - VACUUM	LR099160 HOSE - VACUUM To Brake Booster / From: JA000001	$193.38	1
19A566	LR082299	RESERVOIR - VACUUM	LR082299 RESERVOIR - VACUUM From: HA000001	$88.40	1
19C904	LR148195	CONNECTOR - VACUUM TUBE	LR148195 CONNECTOR - VACUUM TUBE From: HA000001 / To: MA759114	$27.86	1
19C904	LR148195	CONNECTOR - VACUUM TUBE	LR148195 CONNECTOR - VACUUM TUBE From: MA759115	$27.86	1
6603	LR087668	PUMP - OIL & VACUUM	LR087668 PUMP - OIL & VACUUM From: HA000001 / To: JA183342	$554.78	1
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM From: JA183343	$605.96	1
