Name: Exhaust Gas Recirculation (RH Side, Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001)
Rating: 4.5 (1 reviews)

Exhaust Gas Recirculation (RH Side, Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (RH Side, Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL...

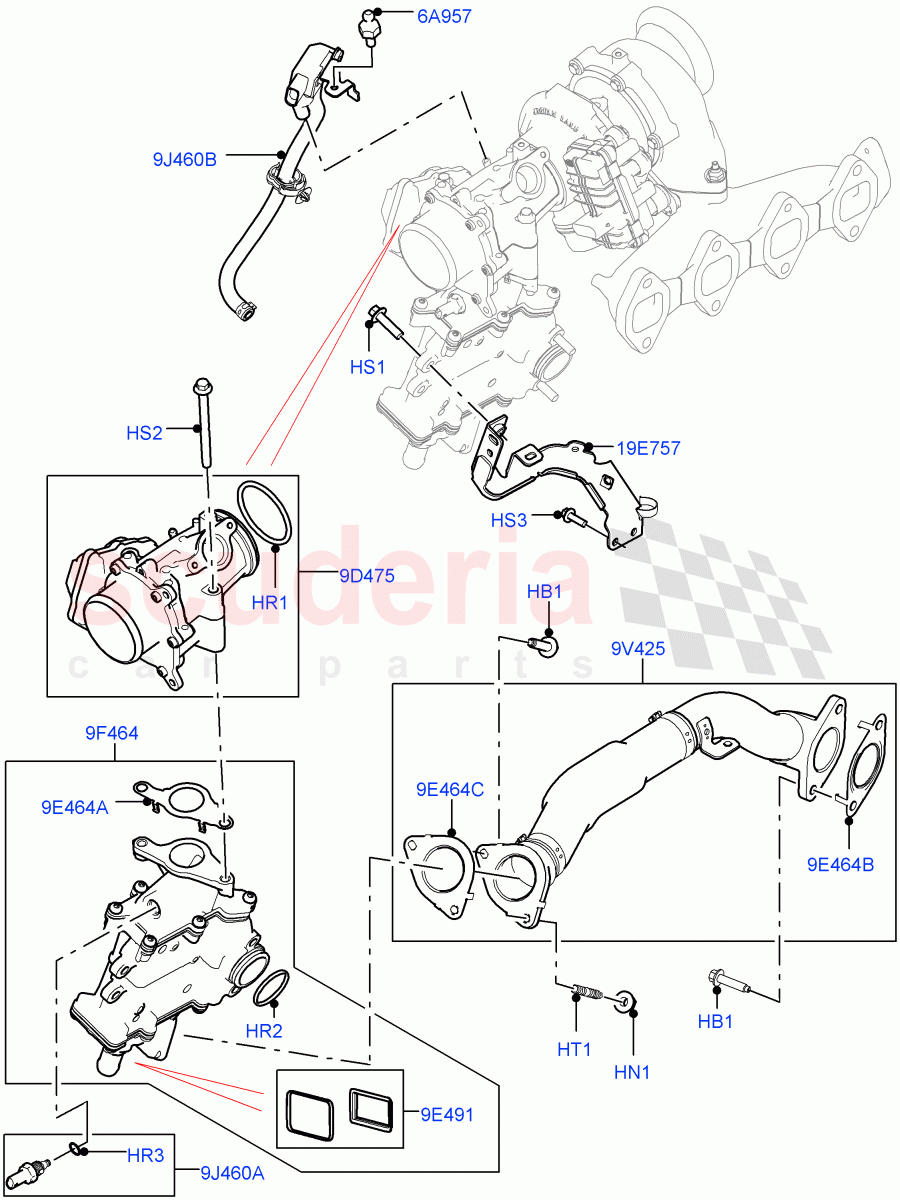

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083962	O-RING	$5.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084673	O-RING	$4.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	$5.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073736	SCREW	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073738	SCREW	$3.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR048608	STUD	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090553	STUD - SPECIAL	$6.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097167	THROTTLE BODY AND EGR VALVE	$618.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126126	FILTER - EGR COOLER	$24.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082301	COOLER - EGR	$509.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085948	TUBE - EXHAUST GAS RECIRCULATION	$153.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082312	BRACKET - SUPPORT	$26.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082315	GASKET - EXHAUST MANIFOLD	$12.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118293	GASKET - EGR INLET	$15.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083961	GASKET - EGR INLET	$12.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$48.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082479	SENSOR - EXHAUST GAS PRESSURE	$174.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR073739	BOLT	LR073739 BOLT EGR Tube, M6 X 25MM / From: HA000001	$1.34	4
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 IN STOCK	$0.60	1
HR1	LR083962	O-RING	LR083962 O-RING 60MM / From: HA000001	$5.36	1
HR2	LR084673	O-RING	LR084673 O-RING EGR Cooler / From: HA000001	$4.82	1
HR3	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM, Exhaust Gas Pressure / From: HA000001 IN STOCK	$5.12	1
HS1	LR073736	SCREW	LR073736 SCREW EGR Cooler, M8 X 30MM / From: HA000001	$1.70	3
HS2	LR073738	SCREW IN STOCK	LR073738 SCREW EGR Cooler To EGR Valve, M8 x 100MM / From: HA000001 IN STOCK	$3.87	2
HS3	LR073655	SCREW IN STOCK	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: HA000001 IN STOCK	$1.60	2
HT1	LR048608	STUD	LR048608 STUD M6	$3.84	1
6A957	LR090553	STUD - SPECIAL	LR090553 STUD - SPECIAL Engine Cover / From: HA000001	$6.89	1
9D475	LR097167	THROTTLE BODY AND EGR VALVE	LR097167 THROTTLE BODY AND EGR VALVE From: HA000001	$618.79	1
9E464A	LR082315	GASKET - EXHAUST MANIFOLD	LR082315 GASKET - EXHAUST MANIFOLD EGR Cooler To EGR Valve / From: HA000001	$12.75	1
9E464B	LR118293	GASKET - EGR INLET	LR118293 GASKET - EGR INLET EGR Tube / From: HA000001	$15.19	1
9E464C	LR083961	GASKET - EGR INLET	LR083961 GASKET - EGR INLET EGR Tube / From: HA000001	$12.75	1
9E491	LR126126	FILTER - EGR COOLER	LR126126 FILTER - EGR COOLER Filter And Gasket Kit / From: HA000001	$24.89	1
9F464	LR082301	COOLER - EGR	LR082301 COOLER - EGR From: HA000001	$509.49	1
9J460A	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: HA000001	$48.07	1
9J460B	LR082479	SENSOR - EXHAUST GAS PRESSURE	LR082479 SENSOR - EXHAUST GAS PRESSURE 2.0L I4 DSL HIGH DOHC AJ200 / Exhaust Gas Pressure / From: HA000001	$174.53	1
9V425	LR085948	TUBE - EXHAUST GAS RECIRCULATION	LR085948 TUBE - EXHAUST GAS RECIRCULATION EGR Cooler Inlet / From: HA000001	$153.57	1
19E757	LR082312	BRACKET - SUPPORT	LR082312 BRACKET - SUPPORT From: HA000001	$26.02	1

Exhaust Gas Recirculation (Rh Side, Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl...
