Exhaust Fluid Injection System (Tank And Lines) (2.0L I4 Dsl High Dohc Aj200, With Diesel Exh Fluid...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Exhaust Fluid Injection System (Tank and Lines) (2.0L I4 DSL HIGH DOHC AJ200, With Diesel Exh Fluid...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000628 BOLT $4.60 To Order
Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX $1.06 To Order
Photo Part No Description Price (each) Stock
LR078393 BOLT AND WASHER - HEX.HEAD $1.54 To Order
Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.67 To Order
Photo Part No Description Price (each) Stock
LR036382 CLIP $0.59 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR101817 GROMMET - WIRING $4.11 To Order
Photo Part No Description Price (each) Stock
LR104346 BOLT - HEX. HEAD - FLANGED $6.03 To Order
Photo Part No Description Price (each) Stock
LR081708 TANK&SHIELD - DIESEL EXHAUST FLUID $1,135.69 To Order
LR096827 TANK&SHIELD - DIESEL EXHAUST FLUID $1,033.10 To Order
LR112101 TANK&SHIELD - DIESEL EXHAUST FLUID $1,051.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR160433 TANK&SHIELD - DIESEL EXHAUST FLUID $1,135.57 To Order
Photo Part No Description Price (each) Stock
LR084743 PUMP - DIESEL EXHAUST FLUID $556.76 To Order
Photo Part No Description Price (each) Stock
LR090186 SHIELD - TANK $161.49 To Order
Photo Part No Description Price (each) Stock
LR104348 TUBE - FUEL $111.62 To Order
Photo Part No Description Price (each) Stock
LR078768 CAP - FILLER $27.07 To Order
Photo Part No Description Price (each) Stock
LR092720 PIPE - FILLER $143.20 To Order
Photo Part No Description Price (each) Stock
LR062403 HOSE - TANK $37.87 To Order
Photo Part No Description Price (each) Stock
LR088517 TUBE - BREATHER $74.37 To Order
Photo Part No Description Price (each) Stock
LR071240 TUBE - BREATHER $63.59 To Order
Photo Part No Description Price (each) Stock
LR082323 PIPE - TANK VENT $47.94 To Order
Photo Part No Description Price (each) Stock
LR071891 HOSE - TANK $68.58 IN STOCK
Photo Part No Description Price (each) Stock
LR071243 HOSE - TANK $52.71 To Order
Photo Part No Description Price (each) Stock
LR086325 TUBE - DIESEL EXHAUST FLUID FEED $122.90 To Order
LR111541 TUBE - DIESEL EXHAUST FLUID FEED $116.41 To Order
Photo Part No Description Price (each) Stock
LR104347 TUBE $239.89 To Order
109123535 TUBE - DIESEL EXHAUST FLUID FEED $181.34 IN STOCK
View All

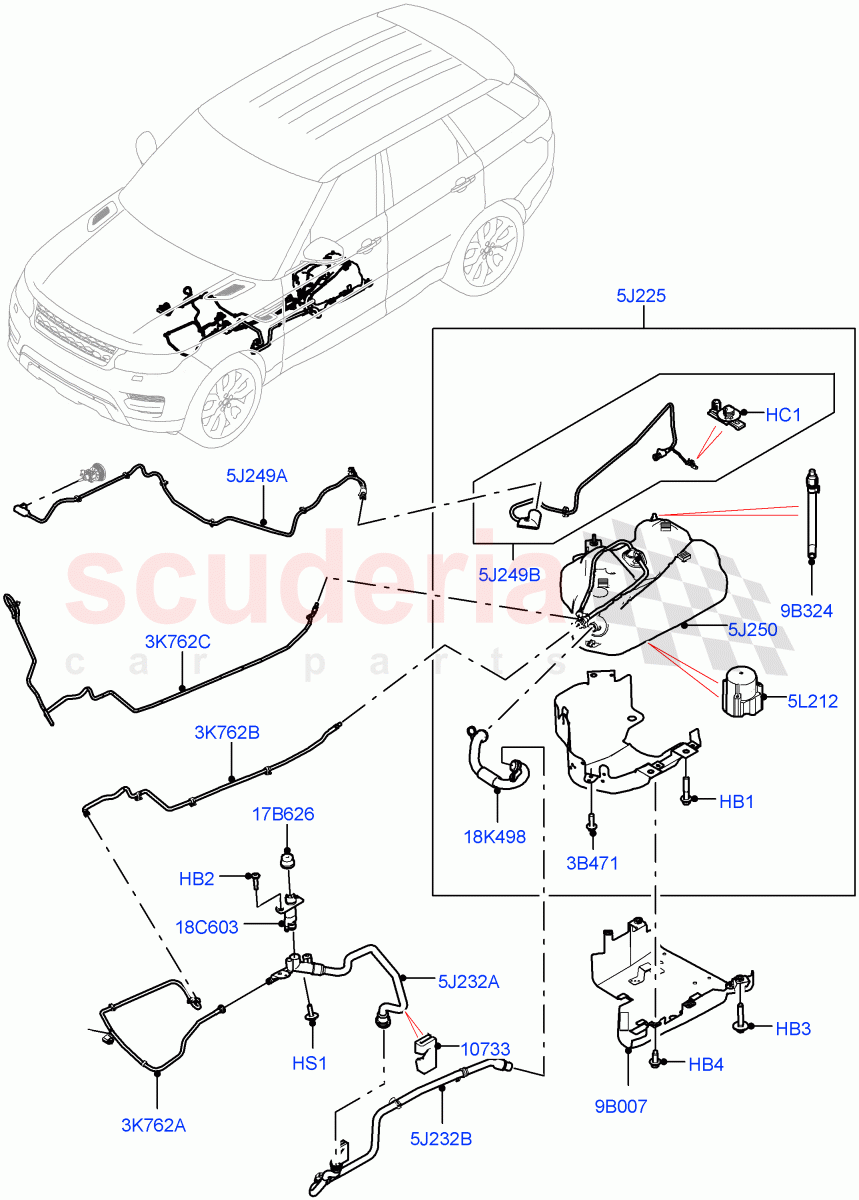

Exhaust Fluid Injection System (Tank and Lines) (2.0L I4 DSL HIGH DOHC AJ200, With Diesel Exh Fluid Emission Tank) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000628
BOLT
Cradle To Body, Hexagonal Head, M8 x 40MM / From: HA000001 		$4.60 3
HB2 LR034354
BOLT - PAN - TORX
Filler Neck, M6 x 19MM, Torx / From: HA000001 		$1.06 2
HB3 LR078393
BOLT AND WASHER - HEX.HEAD
Cradle To Body, M8 x 40MM / From: HA000001 		$1.54 2
HB4 RYG500200
BOLT
Cradle To Body, Hexagonal Head, M8 X 16MM / From: HA000001 		$0.67 1
HC1 LR036382
CLIP
6.5 x 5MM / From: HA000001 		$0.59 1
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: HA000001
IN STOCK 		$0.96 1
3B471 LR104346
BOLT - HEX. HEAD - FLANGED
From: HA000001 		$6.03 1
3K762A LR088517
TUBE - BREATHER
Front / From: HA000001 		$74.37 1
3K762B LR071240
TUBE - BREATHER
Centre / From: HA000001 		$63.59 1
3K762C LR082323
PIPE - TANK VENT
From: HA000001 		$47.94 1
5J225 LR081708
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: HA000001 / To: HA127797 		$1,135.69 1
5J225 LR096827
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: HA127798 / To: JA182244 		$1,033.10 1
5J225 LR112101
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: JA182245 / To: MA794086 		$1,051.46 1
5J225 LR160433
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: MA794087 		$1,135.57 1
5J232A LR071891
HOSE - TANK
Front, Pipe / From: HA000001
IN STOCK 		$68.58 1
5J232B LR071243
HOSE - TANK
Centre, Pipe / From: HA000001 		$52.71 1
5J249A LR086325
TUBE - DIESEL EXHAUST FLUID FEED
To Diesel Exhaust Fluid Injector / From: HA000001 / To: HA179027 		$122.90 1
5J249A LR111541
TUBE - DIESEL EXHAUST FLUID FEED
To Diesel Exhaust Fluid Injector / From: HA179028 		$116.41 1
5J249B LR104347
TUBE
Feed / From: HA000001 / To: JA182244 		$239.89 1
5J249B 109123535
TUBE - DIESEL EXHAUST FLUID FEED
Feed / From: JA182245
IN STOCK 		$181.34 1
5J250 LR160433
TANK&SHIELD - DIESEL EXHAUST FLUID
With Pump / From: HA000001 		$1,135.57 1
5L212 LR084743
PUMP - DIESEL EXHAUST FLUID
Service Kit / From: HA000001 		$556.76 1
9B007 LR090186
SHIELD - TANK
With Fixing Parts / From: HA000001 		$161.49 1
9B324 LR104348
TUBE - FUEL
From: HA000001 		$111.62 1
17B626 LR078768
CAP - FILLER
Filler Neck / From: HA000001 		$27.07 1
18C603 LR092720
PIPE - FILLER
Filler Neck / From: HA000001 		$143.20 1
18K498 LR062403
HOSE - TANK
To Tank / From: HA000001 		$37.87 1
10733 LR101817
GROMMET - WIRING
From: GA000001 		$4.11 1
