Front Suspension Struts And Springs ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Front Suspension Struts And Springs ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FY114047 NUT (NON HAZ) $3.02 IN STOCK
Photo Part No Description Price (each) Stock
FY110056 NUT $4.25 IN STOCK
Photo Part No Description Price (each) Stock
RNS000041 PLATE (NON HAZ) $7.22 IN STOCK
RNS500040 WASHER - DAMPER LOCKING (NON HAZ) $7.54 To Order
Photo Part No Description Price (each) Stock
RNS500010 WASHER - DAMPER LOCKING (NON HAZ) $4.43 IN STOCK
Photo Part No Description Price (each) Stock
REB500060 SPRING - FRONT $678.55 To Order
REB500180 SPRING - SUSPENSION - FRONT $601.63 To Order
REB500190 SPRING - SUSPENSION - FRONT $568.37 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RAE500010 KIT - DAMPER SEALS $30.00 To Order
LR016412 KIT (NON HAZ) $34.15 IN STOCK
Photo Part No Description Price (each) Stock
RBG500010 KIT - BOOT (NON HAZ) $155.52 IN STOCK
Photo Part No Description Price (each) Stock
RPC500080 DAMPER (NON HAZ) $34.86 To Order
Photo Part No Description Price (each) Stock
RNB501460 DAMPER $720.30 To Order
RNB501480 DAMPER $725.48 To Order
RNB501470 DAMPER $725.48 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RSC500050 AIR SUSPENSION $498.14 To Order
RSC500080 DAMPER $450.22 To Order
RSC500250 DAMPER $706.72 To Order
...and 6 more part variants. See table on right for more details.
View All

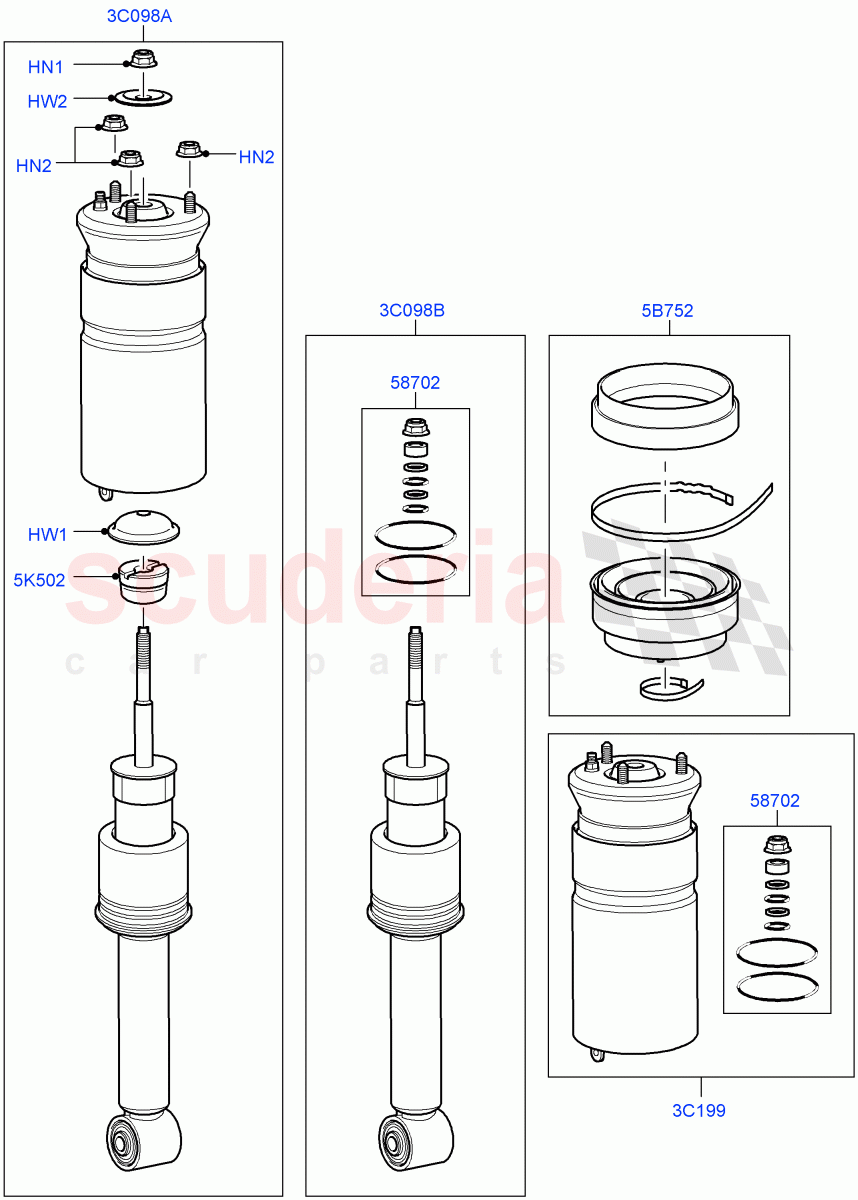

Front Suspension Struts And Springs ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FY114047
NUT (NON HAZ)
M14
IN STOCK 		$3.02 2
HN2 FY110056
NUT
M10
IN STOCK 		$4.25 6
HW1 RNS000041
PLATE (NON HAZ)
Lion Diesel 2.7 V6 (140KW) / Bump Washer
IN STOCK 		$7.22 2
HW1 RNS500040
WASHER - DAMPER LOCKING (NON HAZ)
3.6L V8 32V DOHC EFi Diesel Lion / Bump Washer / From: 7A000001 		$7.54 2
HW2 RNS500010
WASHER - DAMPER LOCKING (NON HAZ)
IN STOCK 		$4.43 2
3C098A RNB501460
DAMPER
Less ACE Suspension, Less Roll Stability Control, Lion Diesel 2.7 V6 (140KW) / Complete Assembly / To: 7A999999 		$720.30 2
3C098A RNB501480
DAMPER
3.6L V8 32V DOHC EFi Diesel Lion / Complete Assembly / To: 8A184670 		$725.48 2
3C098A RNB501470
DAMPER
AJ Petrol 4.4 V8 EFI (220KW), With ACE Suspension, With Roll Stability Control / Complete Assembly / To: 8A184670 		$725.48 2
3C098A RNB501600
MACPHERSON STRUT
AJ Petrol 4.4 V8 EFI (220KW), With ACE Suspension, With Roll Stability Control / Complete Assembly / From: 8A184671 		$1,312.79 2
3C098A RNB501610
DAMPER
3.6L V8 32V DOHC EFi Diesel Lion / Complete Assembly / From: 8A184671 		$1,100.92 2
3C098A RNB501620
MACPHERSON STRUT
AJ Petrol 4.2 V8 Supercharged, Less ACE Suspension, Less Roll Stability Control / Complete Assembly / From: 8A184671 		$1,312.79 2
3C098A RNB501590
DAMPER
AJ Petrol 4.2 V8 Supercharged, Less ACE Suspension, Less Roll Stability Control / Complete Assembly / From: 8A000001 / To: 8A184670 		$789.13 2
3C098B RSC500050
AIR SUSPENSION
Less ACE Suspension, Less Roll Stability Control, Lion Diesel 2.7 V6 (140KW) / Includes Seal, Service Kit / To: 6A999999 		$498.14 2
3C098B RSC500080
DAMPER
AJ Petrol 4.2 V8 Supercharged, With ACE Suspension, With Roll Stability Control / Includes Seal, Service Kit / To: 6A999999 		$450.22 2
3C098B RSC500250
DAMPER
3.6L V8 32V DOHC EFi Diesel Lion / Includes Seal, Service Kit / From: 7A000001 / To: 7A117183 		$706.72 2
3C098B RSC500280
DAMPER
3.6L V8 32V DOHC EFi Diesel Lion / Includes Seal, Service Kit / From: 7A117184 / To: 8A999999 		$706.72 2
3C098B RSC500260
DAMPER
AJ Petrol 4.4 V8 EFI (220KW), Less ACE Suspension, Less Roll Stability Control / Includes Seal, Service Kit / From: 7A000001 / To: 8A999999 		$466.59 2
3C098B RSC500270
DAMPER
Lion Diesel 2.7 V6 (140KW), With ACE Suspension, With Roll Stability Control / Includes Seal, Service Kit / From: 7A000001 / To: 8A999999 		$450.22 2
3C098B LR016426
DAMPER (NON HAZ)
AJ Petrol 4.2 V8 Supercharged, Less ACE Suspension, Less Roll Stability Control / Includes Seal, Service Kit / From: 9A000001 		$698.76 2
3C098B LR016427
DAMPER (NON HAZ)
AJ Petrol 4.4 V8 EFI (220KW), With ACE Suspension, With Roll Stability Control / Includes Seal, Service Kit / From: 9A000001 		$746.04 2
3C098B LR016428
DAMPER (NON HAZ)
3.6L V8 32V DOHC EFi Diesel Lion / Includes Seal, Service Kit / From: 9A000001 		$705.02 2
3C199 REB500060
SPRING - FRONT
AJ Petrol 4.2 V8 Supercharged / To: 6A974287 		$678.55 2
3C199 REB500180
SPRING - SUSPENSION - FRONT
3.6L V8 32V DOHC EFi Diesel Lion / From: 7A000001 / To: 8A999999 		$601.63 2
3C199 REB500190
SPRING - SUSPENSION - FRONT
AJ Petrol 4.4 V8 EFI (220KW) / From: 6A974288 / To: 8A999999 		$568.37 2
3C199 LR016421
SPRING - SUSPENSION - FRONT (NON HAZ)
3.6L V8 32V DOHC EFi Diesel Lion / From: 9A000001 / To: 9A500001 		$795.46 2
3C199 LR016403
SPRING - SUSPENSION - FRONT (NON HAZ)
AJ Petrol 4.2 V8 Supercharged / From: 9A000001 		$815.24 2
3C199 LR058043
SPRING - SUSPENSION - FRONT
3.6L V8 32V DOHC EFi Diesel Lion / From: 9A500002 		$816.59 2
5B752 RBG500010
KIT - BOOT (NON HAZ)
IN STOCK 		$155.52 2
5K502 RPC500080
DAMPER (NON HAZ) 		$34.86 2
58702 RAE500010
KIT - DAMPER SEALS
Includes O-Rings, Spacers And A Nut / To: 8A999999 		$30.00 2
58702 LR016412
KIT (NON HAZ)
Includes O-Rings, Spacers And A Nut / From: 9A000001
IN STOCK 		$34.15 2
