Active Anti-Roll Bar System (Arc Pipes, Rear) (With Roll Stability Control) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Active Anti-Roll Bar System (ARC Pipes, Rear) (With Roll Stability Control) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SN106127L BOLT $0.66 To Order
Photo Part No Description Price (each) Stock
ANR6702 CLIP $50.88 To Order
Photo Part No Description Price (each) Stock
RYA500020 GROMMET $2.51 To Order
Photo Part No Description Price (each) Stock
FN106047L NUT - FLANGED $1.79 IN STOCK
Photo Part No Description Price (each) Stock
FY108046 NUT M8 FLANGED HEX HEAD $1.12 IN STOCK
FY108046 NUT M8 FLANGED HEX HEAD $1.12 IN STOCK
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
RYP500060 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
RQB500011 CLIP $12.67 To Order
Photo Part No Description Price (each) Stock
RQA000049 TUBE $267.31 To Order
RQA000049 TUBE $267.31 To Order
Photo Part No Description Price (each) Stock
LR038632 INSULATOR - ARB PIPE $27.43 To Order
Photo Part No Description Price (each) Stock
RQR500010 COLLET - ARB PIPE $11.66 IN STOCK
Photo Part No Description Price (each) Stock
RQB500312 PIPE $140.52 To Order
RQB500313 TUBE $175.68 To Order
Photo Part No Description Price (each) Stock
RQB500333 PIPE $141.05 To Order
RQB500334 TUBE $175.68 To Order
Photo Part No Description Price (each) Stock
ANR6704 MOUNTING - RUBBER $2.95 To Order
Photo Part No Description Price (each) Stock
RQU500080 BRACKET $17.74 To Order
Photo Part No Description Price (each) Stock
LR085487 KIT - SEAL $10.52 IN STOCK
LR085487 KIT - SEAL $10.52 IN STOCK
View All

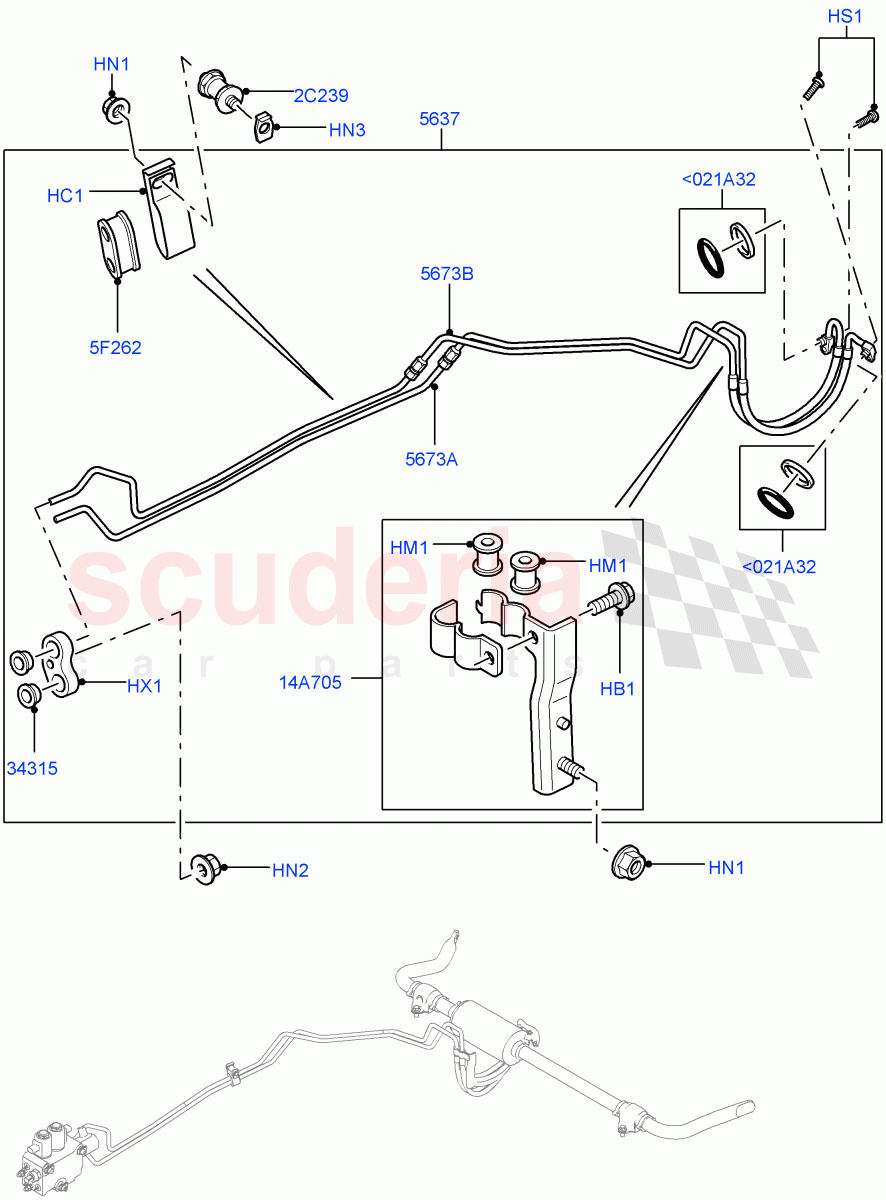

Active Anti-Roll Bar System (ARC Pipes, Rear) (With Roll Stability Control) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR085487
KIT - SEAL
To: 8A999999
IN STOCK 		$10.52 2
<021A32 LR085487
KIT - SEAL
From: 9A000001
IN STOCK 		$10.52 2
HB1 SN106127L
BOLT
M6 		$0.66 1
HC1 ANR6702
CLIP
Double 		$50.88 1
HM1 RYA500020
GROMMET
Grommet 		$2.51 2
HN1 FN106047L
NUT - FLANGED
M6
IN STOCK 		$1.79 2
HN2 FY108046
NUT M8 FLANGED HEX HEAD
M8 / To: 7A108443
IN STOCK 		$1.12 1
HN2 FY108046
NUT M8 FLANGED HEX HEAD
M8 / From: 7A108444
IN STOCK 		$1.12 1
HN3 LR000053
NUT - FLANGED
M6
IN STOCK 		$1.63 1
HS1 RYP500060
SCREW
M8 X 16MM, Torx 		$0.79 2
HX1 RQB500011
CLIP
ARC Pipes 		$12.67 1
2C239 LR038632
INSULATOR - ARB PIPE 		$27.43 1
5F262 ANR6704
MOUNTING - RUBBER 		$2.95 1
14A705 RQU500080
BRACKET 		$17.74 1
5637 RQA000049
TUBE
To: 6A999999 		$267.31 1
5637 RQA000049
TUBE
From: 7A000001 		$267.31 1
5673A RQB500312
PIPE
Rear Pipe Actuator A / To: 6A999999 		$140.52 1
5673A RQB500313
TUBE
Rear Pipe Actuator A / From: 7A000001 		$175.68 1
5673B RQB500333
PIPE
Rear Pipe Actuator B / To: 6A999999 		$141.05 1
5673B RQB500334
TUBE
Rear Pipe Actuator B / From: 7A000001 		$175.68 1
34315 RQR500010
COLLET - ARB PIPE
IN STOCK 		$11.66 2
