Rear Axle ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Rear Axle ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG000240 BOLT $10.05 To Order
Photo Part No Description Price (each) Stock
KYG500020 BOLT $5.35 To Order
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. $1.25 IN STOCK
FY114056 NUT - HEX. $1.25 IN STOCK
Photo Part No Description Price (each) Stock
TYP500130 SCREW $2.68 To Order
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL $22.87 To Order
Photo Part No Description Price (each) Stock
FTC5431 PLUG - OIL DRAIN $11.77 To Order
Photo Part No Description Price (each) Stock
TVK500240 DIFFERENTIAL - REAR $2,382.14 To Order
TVK500260 DIFFERENTIAL - REAR $2,382.14 To Order
TVK500440 AXLE - REAR $4,168.70 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR032711 MOTOR - REAR DIFFERENTIAL $621.74 To Order
Photo Part No Description Price (each) Stock
TES500050 Hose Enquire To Order
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER $3.53 To Order
Photo Part No Description Price (each) Stock
NSC500590 SENSOR - TRANS. FLUID TEMP. - TFT $66.69 IN STOCK
Photo Part No Description Price (each) Stock
KQB000133 INSULATOR - DIFFERENTIAL $133.81 To Order
Photo Part No Description Price (each) Stock
KQB500151 INSULATOR - DIFFERENTIAL $141.94 To Order
Photo Part No Description Price (each) Stock
LR174475 SEAL - OIL $21.72 To Order
Photo Part No Description Price (each) Stock
TVK500200 HOUSING - DIFF. LOCK SHIFT $1,636.18 To Order
LR011036 HOUSING - DIFF. LOCK SHIFT $437.14 To Order
Photo Part No Description Price (each) Stock
LR041063 HOUSING-DIFFERENTIAL LOCKING MOTOR $552.66 To Order
View All

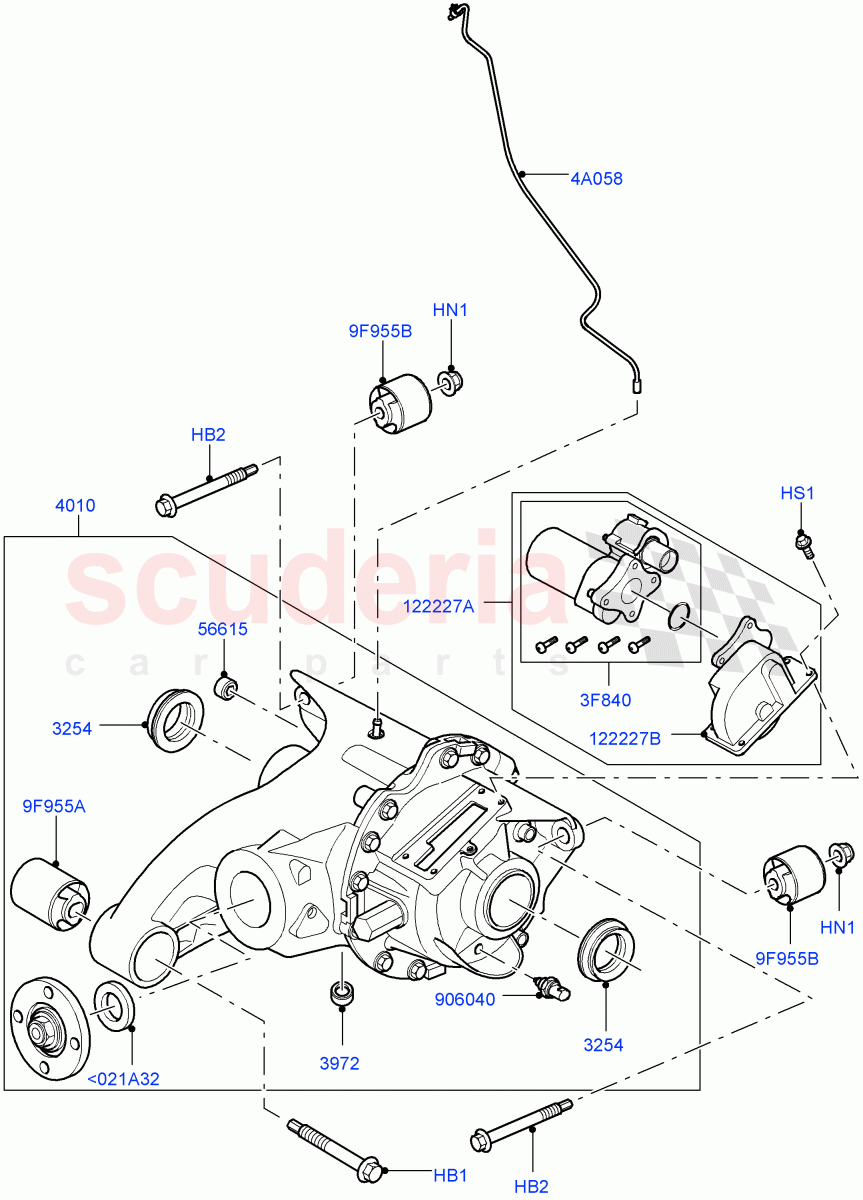

Rear Axle ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR174475
SEAL - OIL
Pinion Seal kit, Please See Service Bulletin No. LTB00178 For Repair Procedure 		$21.72 1
HB1 KYG000240
BOLT
M16 X 120MM 		$10.05 1
HB2 KYG500020
BOLT
M14 x 120 		$5.35 2
HN1 FY114056
NUT - HEX.
M14 / To: 7A108443
IN STOCK 		$1.25 2
HN1 FY114056
NUT - HEX.
Hexagonal Head, M14 / From: 7A108444
IN STOCK 		$1.25 2
HS1 TYP500130
SCREW
M6 x 1.00 x 16.0 		$2.68 4
3F840 LR032711
MOTOR - REAR DIFFERENTIAL
Rear Axle Locking Differential / Service Kit - Motor, Fixing And O-ring 		$621.74 1
4A058 TES500050
Hose
Breather 		- 1 Enquire
9F955A KQB000133
INSULATOR - DIFFERENTIAL 		$133.81 1
9F955B KQB500151
INSULATOR - DIFFERENTIAL 		$141.94 2
3254 LR158113
SEAL - OIL
Driveshaft 		$22.87 2
3972 FTC5431
PLUG - OIL DRAIN 		$11.77 1
4010 TVK500240
DIFFERENTIAL - REAR
Less Rear Axle Locking Differential, Lion Diesel 2.7 V6 (140KW) / New Part-Please Check For Reman Version 		$2,382.14 1
4010 TVK500260
DIFFERENTIAL - REAR
AJ Petrol 4.4 V8 EFI (220KW), Less Rear Axle Locking Differential / New Part-Please Check For Reman Version 		$2,382.14 1
4010 TVK500440
AXLE - REAR
3.6L V8 32V DOHC EFi Diesel Lion, Rear Axle Locking Differential / New Part-Please Check For Reman Version / To: 7A999999 		$4,168.70 1
4010 TVK500420
DIFFERENTIAL - REAR
AJ Petrol 4.4 V8 EFI (220KW), Rear Axle Locking Differential / New Part-Please Check For Reman Version / To: 7A999999 		$4,168.70 1
4010 LR009439
DIFFERENTIAL - REAR
Less Rear Axle Locking Differential, Lion Diesel 2.7 V6 (140KW) / Remanufactured Part 		$1,139.59 1
4010 LR009440
DIFFERENTIAL - REAR
AJ Petrol 4.4 V8 EFI (220KW), Less Rear Axle Locking Differential / Remanufactured Part 		$1,139.59 1
4010 LR006013
DIFFERENTIAL - REAR
AJ Petrol 4.4 V8 EFI (220KW), Rear Axle Locking Differential / Remanufactured Part / To: 7A106915 		$2,549.53 1
4010 LR009444
DIFFERENTIAL - REAR
AJ Petrol 4.4 V8 EFI (220KW), Rear Axle Locking Differential / Remanufactured Part / From: 7A106916 / To: 7A999999 		$2,549.53 1
4010 LR009442
AXLE - REAR
Lion Diesel 2.7 V6 (140KW), Rear Axle Locking Differential / Remanufactured Part / To: 7A106915 		$2,549.53 1
4010 LR009625
AXLE - REAR
3.6L V8 32V DOHC EFi Diesel Lion, Rear Axle Locking Differential / Remanufactured Part / From: 7A106916 / To: 7A999999 		$2,549.53 1
4010 LR059435
DIFFERENTIAL - REAR
AJ Petrol 4.2 V8 Supercharged, Rear Axle Locking Differential / New Part-Please Check For Reman Version / From: 8A000001 		$4,168.70 1
4010 LR059439
DIFFERENTIAL - REAR
AJ Petrol 4.4 V8 EFI (220KW), Rear Axle Locking Differential / New Part-Please Check For Reman Version / From: 8A000001 		$3,431.41 1
4010 LR059446
DIFFERENTIAL - REAR
Lion Diesel 2.7 V6 (140KW), Rear Axle Locking Differential / Remanufactured Part / From: 8A000001 		$2,134.64 1
4010 LR059448
DIFFERENTIAL - REAR
AJ Petrol 4.4 V8 EFI (220KW), Rear Axle Locking Differential / Remanufactured Part / From: 8A000001 		$2,134.64 1
56615 TYB500060
PLUG - FILLER
Filler Plug 		$3.53 1
122227A TVK500200
HOUSING - DIFF. LOCK SHIFT
Rear Axle Locking Differential / Includes Motor, New Part-Please Check For Reman Version 		$1,636.18 1
122227A LR011036
HOUSING - DIFF. LOCK SHIFT
Rear Axle Locking Differential / Includes Motor, Remanufactured Part 		$437.14 1
122227B LR041063
HOUSING-DIFFERENTIAL LOCKING MOTOR
Rear Axle Locking Differential / Less Motor 		$552.66 1
906040 NSC500590
SENSOR - TRANS. FLUID TEMP. - TFT
Rear Axle Locking Differential / Sensor - Oil Temperature
IN STOCK 		$66.69 1
