Throttle Housing (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Throttle Housing (AJ Petrol 4.2 V8 Supercharged)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4662918 BOLT $3.53 To Order
Photo Part No Description Price (each) Stock
LR000299 BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
FS108201 Bolt $0.15 To Order
Photo Part No Description Price (each) Stock
4662763 CLAMP $5.89 To Order
Photo Part No Description Price (each) Stock
4629194 CLAMP $0.32 To Order
Photo Part No Description Price (each) Stock
4380670 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
1105338 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR002790 TUBE $53.14 To Order
Photo Part No Description Price (each) Stock
4662750 ELBOW - AIR INLET $504.50 To Order
LR009386 ELBOW - AIR INLET $1,077.46 To Order
Photo Part No Description Price (each) Stock
4628233 BRACKET $6.52 To Order
Photo Part No Description Price (each) Stock
4680317 Bracket Enquire To Order
4741284 BRACKET $13.92 To Order
Photo Part No Description Price (each) Stock
4701288 LEVER $40.41 To Order
Photo Part No Description Price (each) Stock
4637031 THROTTLE BODY AND MOTOR $401.58 To Order
LR006142 THROTTLE BODY AND MOTOR $400.76 To Order
Photo Part No Description Price (each) Stock
4536886 GASKET $22.60 IN STOCK
Photo Part No Description Price (each) Stock
1141598 SENSOR $134.80 To Order
LR008935 SENSOR - ABSOLUTE PRESSURE $192.13 To Order
LR076019 SENSOR - ABSOLUTE PRESSURE $149.14 To Order
Photo Part No Description Price (each) Stock
4629188 BOLT $9.29 To Order
Photo Part No Description Price (each) Stock
4629185 TUBE - AIR INLET $285.46 To Order
4696103 TUBE - AIR INLET $211.35 To Order
LR005192 TUBE - AIR INLET $943.87 To Order
Photo Part No Description Price (each) Stock
4628234 GASKET $17.00 IN STOCK
View All

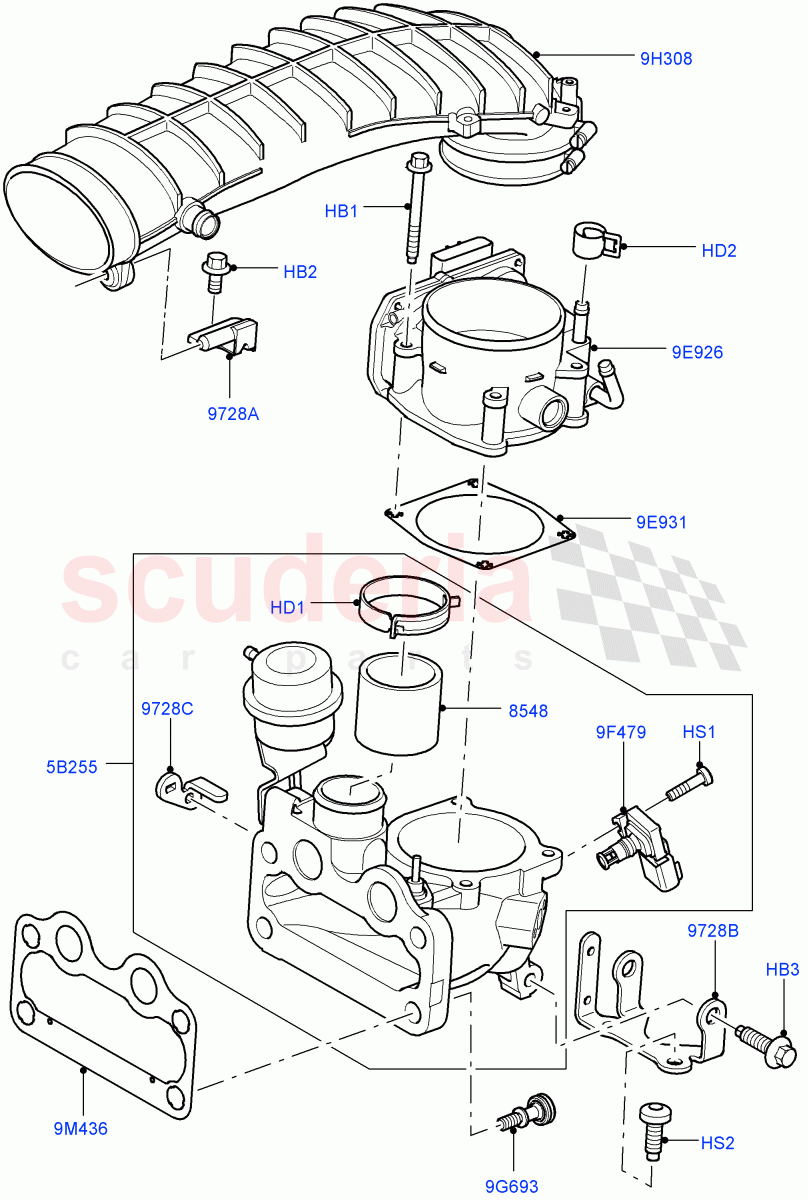

Throttle Housing (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4662918
BOLT
M6 x 55MM 		$3.53 4
HB2 LR000299
BOLT
M8 X 16MM 		$1.02 1
HB3 FS108201
Bolt
M8 X 20MM 		$0.15 2
HD1 4662763
CLAMP 		$5.89 1
HD2 4629194
CLAMP
"Spring", 12MM, 14MM 		$0.32 -
HS1 4380670
SCREW
Hexagonal Head, M6 X 16MM 		$0.76 1
HS2 1105338
SCREW
M8 X 20MM 		$0.59 2
5B255 4662750
ELBOW - AIR INLET
To: 6A999999 		$504.50 1
5B255 LR009386
ELBOW - AIR INLET
From: 7A000001 		$1,077.46 1
9E926 4637031
THROTTLE BODY AND MOTOR
To: 6A999999 		$401.58 1
9E926 LR006142
THROTTLE BODY AND MOTOR
From: 7A000001 		$400.76 1
9E931 4536886
GASKET
IN STOCK 		$22.60 1
9F479 1141598
SENSOR
To: 6A999999 		$134.80 1
9F479 LR008935
SENSOR - ABSOLUTE PRESSURE
From: 7A000001 / To: AA215634 		$192.13 1
9F479 LR076019
SENSOR - ABSOLUTE PRESSURE
From: AA215635 		$149.14 1
9G693 4629188
BOLT
M8, Torx 		$9.29 4
9H308 4629185
TUBE - AIR INLET
To: 6A940840 		$285.46 1
9H308 4696103
TUBE - AIR INLET
From: 6A940840 / To: 6A999999 		$211.35 1
9H308 LR005192
TUBE - AIR INLET
From: 7A000001 		$943.87 1
9M436 4628234
GASKET
IN STOCK 		$17.00 1
8548 LR002790
TUBE 		$53.14 1
9728A 4628233
BRACKET 		$6.52 1
9728B 4680317
Bracket
To: 6A916350 		- 1 Enquire
9728B 4741284
BRACKET
From: 6A916351 		$13.92 1
9728C 4701288
LEVER 		$40.41 1
