Fuel Injectors And Pipes (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Fuel Injectors And Pipes (AJ Petrol 4.2 V8 Supercharged)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS105087 BOLT $0.77 To Order
Photo Part No Description Price (each) Stock
1354399 BOLT $4.71 To Order
Photo Part No Description Price (each) Stock
3600290 SEAL $1.78 To Order
Photo Part No Description Price (each) Stock
TYP500030 SCREW $1.06 To Order
Photo Part No Description Price (each) Stock
4628235 GASKET - INTAKE MANIFOLD $24.79 To Order
Photo Part No Description Price (each) Stock
4650545 CLIP $6.71 To Order
Photo Part No Description Price (each) Stock
4650542 MANIFOLD - FUEL SUPPLY $930.46 To Order
4743607 MANIFOLD - FUEL SUPPLY $990.03 To Order
Photo Part No Description Price (each) Stock
MLH500024 PIPE - FUEL $94.47 To Order
MLH500160 PIPE - FUEL $387.86 To Order
Photo Part No Description Price (each) Stock
4650544 INJECTOR $184.00 To Order
Photo Part No Description Price (each) Stock
MHU500060 BRACKET $2.17 To Order
Photo Part No Description Price (each) Stock
4458309 SENSOR - FUEL INJECTOR PRESSURE $126.98 To Order
Photo Part No Description Price (each) Stock
MAP500110 TUBE - FUEL SUPPLY $124.74 To Order
MAP500180 TUBE - FUEL SUPPLY $461.01 To Order
Photo Part No Description Price (each) Stock
LR000291 SENDER $55.10 To Order
Photo Part No Description Price (each) Stock
4629180 ADAPTOR $128.41 To Order
Photo Part No Description Price (each) Stock
4629181 ADAPTOR $128.41 To Order
Photo Part No Description Price (each) Stock
LR012785 SEAL $7.69 To Order
Photo Part No Description Price (each) Stock
LR012827 SEAL $6.48 To Order
View All

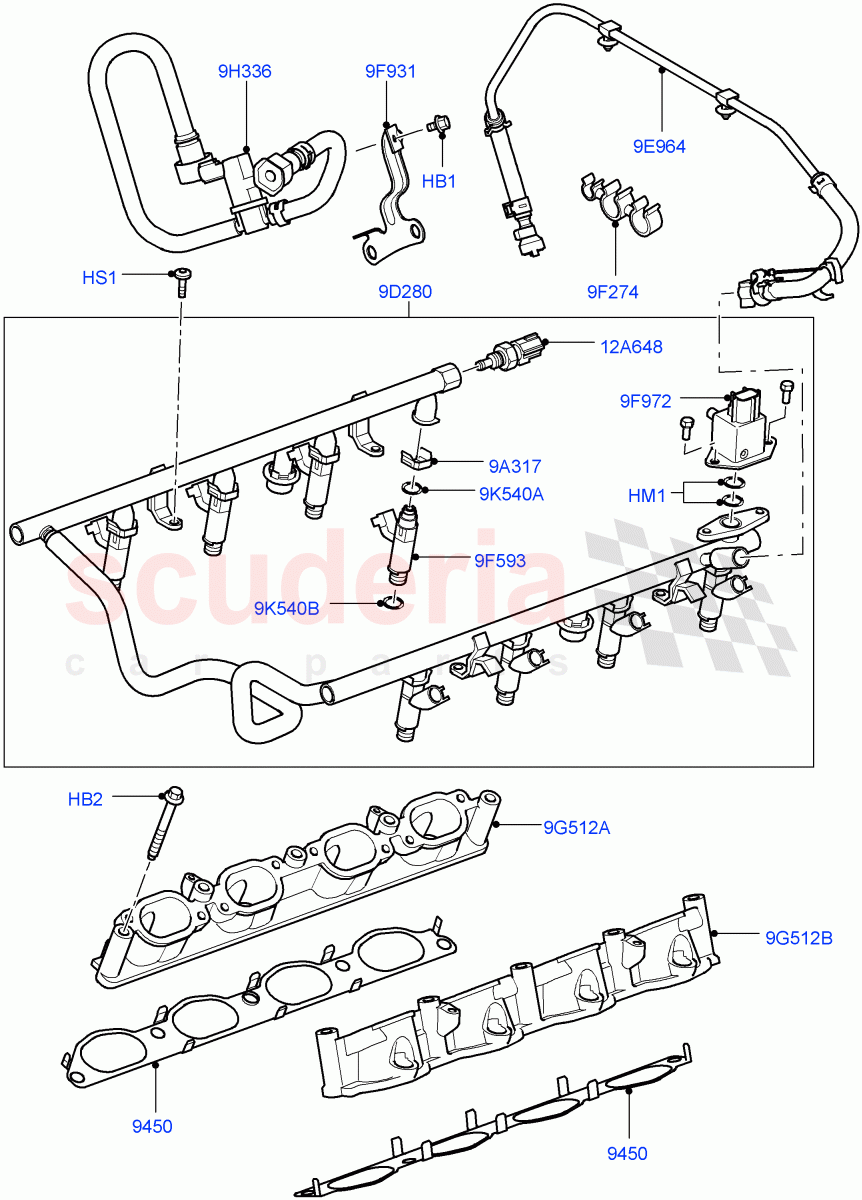

Fuel Injectors And Pipes (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS105087
BOLT
M5 x 8MM 		$0.77 1
HB2 1354399
BOLT
M8 x 70MM 		$4.71 10
HM1 3600290
SEAL
7.0X1.98 O, O-Ring, Pack Of Four (4) 		$1.78 2
HS1 TYP500030
SCREW
M6 X 16MM, Torx 		$1.06 4
9A317 4650545
CLIP 		$6.71 8
9D280 4650542
MANIFOLD - FUEL SUPPLY
To: 6A916350 		$930.46 1
9D280 4743607
MANIFOLD - FUEL SUPPLY
From: 6A916351 		$990.03 1
9E964 MLH500024
PIPE - FUEL
To: 5A913524 		$94.47 1
9E964 MLH500160
PIPE - FUEL
From: 5A913525 		$387.86 1
9F593 4650544
INJECTOR 		$184.00 8
9F931 MHU500060
BRACKET
Valve Assembly 		$2.17 1
9F972 4458309
SENSOR - FUEL INJECTOR PRESSURE 		$126.98 1
9G512A 4629180
ADAPTOR
RH 		$128.41 1
9G512B 4629181
ADAPTOR
LH 		$128.41 1
9H336 MAP500110
TUBE - FUEL SUPPLY
Fuel Vapor Cannister Purge - Outlet, Valve Assembly / To: 5A913524 		$124.74 1
9H336 MAP500180
TUBE - FUEL SUPPLY
Fuel Vapor Cannister Purge - Outlet, Valve Assembly / From: 5A913525 		$461.01 1
9K540A LR012785
SEAL
Fuel Injector, Upper 		$7.69 8
9K540B LR012827
SEAL
Fuel Injector, Lower 		$6.48 8
12A648 LR000291
SENDER
Fuel Rail 		$55.10 1
9450 4628235
GASKET - INTAKE MANIFOLD 		$24.79 2
