Fuel Pump And Sender Unit (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Fuel Pump And Sender Unit (AJ Petrol 4.2 V8 Supercharged)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106127L SCREW $2.01 To Order
Photo Part No Description Price (each) Stock
WFL500010 FILTER $130.55 To Order
Photo Part No Description Price (each) Stock
WGQ000031 GASKET $17.68 To Order
Photo Part No Description Price (each) Stock
LR015377 FLOAT $153.59 To Order
Photo Part No Description Price (each) Stock
LR021911 FLOAT $146.31 To Order
Photo Part No Description Price (each) Stock
LR015376 BRACKET - FUEL TANK $114.40 To Order
Photo Part No Description Price (each) Stock
WQM500020 CONTROL - FUEL PUMP DRIVE $265.93 To Order
WQM500010 MODULE ASSY - ECU $250.18 To Order
Photo Part No Description Price (each) Stock
WGS500010 MODULE $1,260.94 To Order
WGS500012 PUMP - FUEL $524.66 To Order
Photo Part No Description Price (each) Stock
LR043385 SENDER AND PUMP $519.57 To Order
Photo Part No Description Price (each) Stock
WGI500080 SENDER - FUEL TANK $161.78 To Order
Photo Part No Description Price (each) Stock
WGI500090 SENDER - FUEL TANK $91.31 To Order
View All

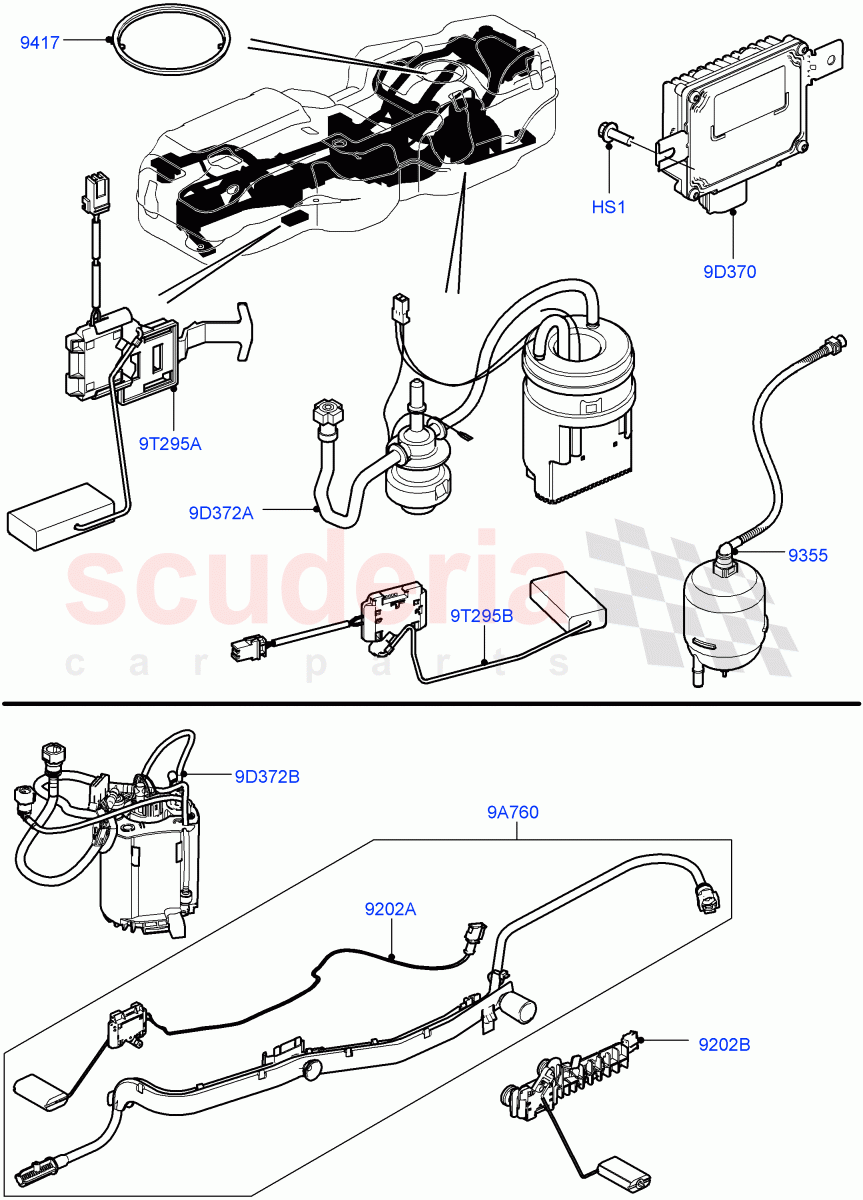

Fuel Pump And Sender Unit (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106127L
SCREW
M6 x 12MM 		$2.01 2
9A760 LR015376
BRACKET - FUEL TANK
Vehicles Fitted With 10MY Fuel Tank, With Fuel Sender 		$114.40 1
9D370 WQM500020
CONTROL - FUEL PUMP DRIVE
From: 8A119898 		$265.93 1
9D370 WQM500010
MODULE ASSY - ECU
To: 8A119897 		$250.18 1
9D372A WGS500010
MODULE
To: 6A999999 		$1,260.94 1
9D372A WGS500012
PUMP - FUEL
From: 7A000001 		$524.66 1
9D372B LR043385
SENDER AND PUMP
Vehicles Fitted With 10MY Fuel Tank 		$519.57 1
9T295A WGI500080
SENDER - FUEL TANK
Front 		$161.78 1
9T295B WGI500090
SENDER - FUEL TANK
Includes Mounting Bracket, Rear 		$91.31 1
9202A LR015377
FLOAT
Front, Vehicles Fitted With 10MY Fuel Tank 		$153.59 1
9202B LR021911
FLOAT
Rear, Vehicles Fitted With 10MY Fuel Tank 		$146.31 1
9355 WFL500010
FILTER
Filter Only 		$130.55 1
9417 WGQ000031
GASKET 		$17.68 1
