Oil Pan/Oil Level Indicator (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Oil Pan/Oil Level Indicator (AJ Petrol 4.2 V8 Supercharged)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4652060 BOLT $5.61 To Order
Photo Part No Description Price (each) Stock
4652045 BOLT $8.76 To Order
Photo Part No Description Price (each) Stock
FN105042 NUT - HEX. - FLANGED $0.52 IN STOCK
Photo Part No Description Price (each) Stock
4652041 SCREW $1.33 To Order
Photo Part No Description Price (each) Stock
4556040 SCREW $0.72 To Order
Photo Part No Description Price (each) Stock
4467593 BOLT - HEX.HEAD $0.71 To Order
Photo Part No Description Price (each) Stock
4619687 SCREW $1.78 To Order
Photo Part No Description Price (each) Stock
4526536 TUBE - OIL PUMP INLET $104.38 To Order
4728612 TUBE - OIL PUMP INLET $219.99 To Order
Photo Part No Description Price (each) Stock
4646370 BODY $448.57 To Order
4728388 PAN - ENGINE OIL $1,476.84 To Order
Photo Part No Description Price (each) Stock
4526550 TRAY - OIL $28.34 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $8.34 To Order
Photo Part No Description Price (each) Stock
1005593 GASKET $21.69 To Order
Photo Part No Description Price (each) Stock
LQM500030 INDICATOR - OIL LEVEL $67.21 To Order
Photo Part No Description Price (each) Stock
4536872 TUBE - OIL LEVEL INDICATOR $31.75 To Order
Photo Part No Description Price (each) Stock
NSC500160 SENSOR - CRANKSHAFT POSITION - CPS $188.02 To Order
Photo Part No Description Price (each) Stock
TQC500021 PLUG - INSPECTION OPENING $1.24 To Order
Photo Part No Description Price (each) Stock
4623980 CLIP - WIRING $5.54 To Order
View All

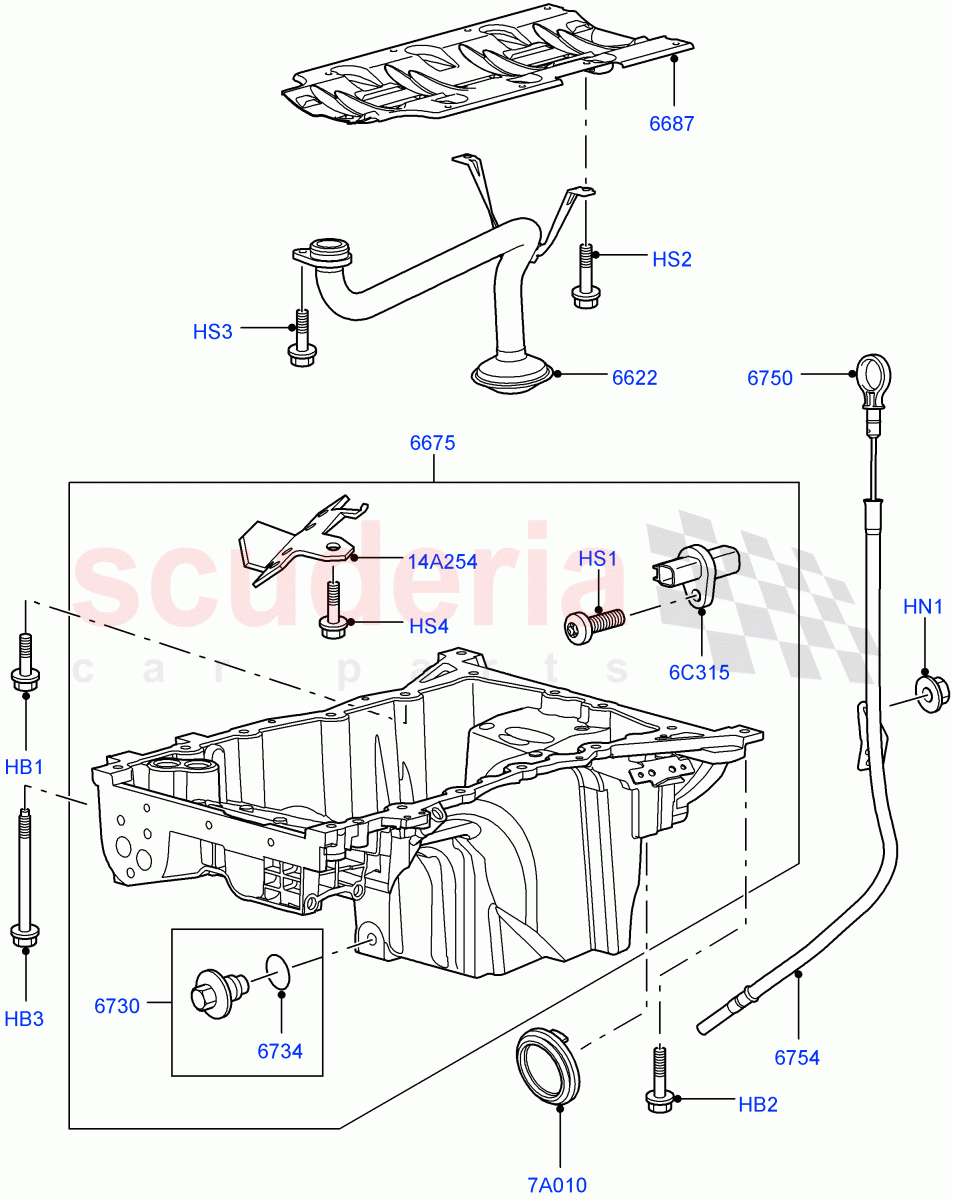

Oil Pan/Oil Level Indicator (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4652060
BOLT
M8 x 28MM 		$5.61 5
HB2 4652045
BOLT
M8 X 45MM 		$8.76 11
HN1 FN105042
NUT - HEX. - FLANGED
M5
IN STOCK 		$0.52 1
HS1 4652041
SCREW
M6 X 20MM 		$1.33 1
HS2 4556040
SCREW
M6 x 22MM 		$0.72 8
HS3 4467593
BOLT - HEX.HEAD
Hexagonal Head, M6 X 20MM 		$0.71 1
HS4 4619687
SCREW
M6 X 16MM 		$1.78 2
6C315 NSC500160
SENSOR - CRANKSHAFT POSITION - CPS 		$188.02 1
7A010 TQC500021
PLUG - INSPECTION OPENING
Converter Access Plug 		$1.24 1
14A254 4623980
CLIP - WIRING
AJ Petrol 4.4 V8 EFI (220KW) 		$5.54 2
6622 4526536
TUBE - OIL PUMP INLET
To: 5A910671 		$104.38 1
6622 4728612
TUBE - OIL PUMP INLET
From: 5A910672 		$219.99 1
6675 4646370
BODY
To: 5A910671 		$448.57 1
6675 4728388
PAN - ENGINE OIL
From: 5A910672 		$1,476.84 1
6687 4526550
TRAY - OIL 		$28.34 1
6730 LR073675
PLUG - OIL DRAIN
For Japan Only Order With LR Prefix, Head Size: 13mm, Includes Seal, M14 X 1.5 		$8.34 1
6734 1005593
GASKET 		$21.69 1
6750 LQM500030
INDICATOR - OIL LEVEL 		$67.21 1
6754 4536872
TUBE - OIL LEVEL INDICATOR 		$31.75 1
