Name: Oil Cooler And Filter (AJ Petrol 4.2 V8 Supercharged)
Rating: 4.0 (1 reviews)

View All

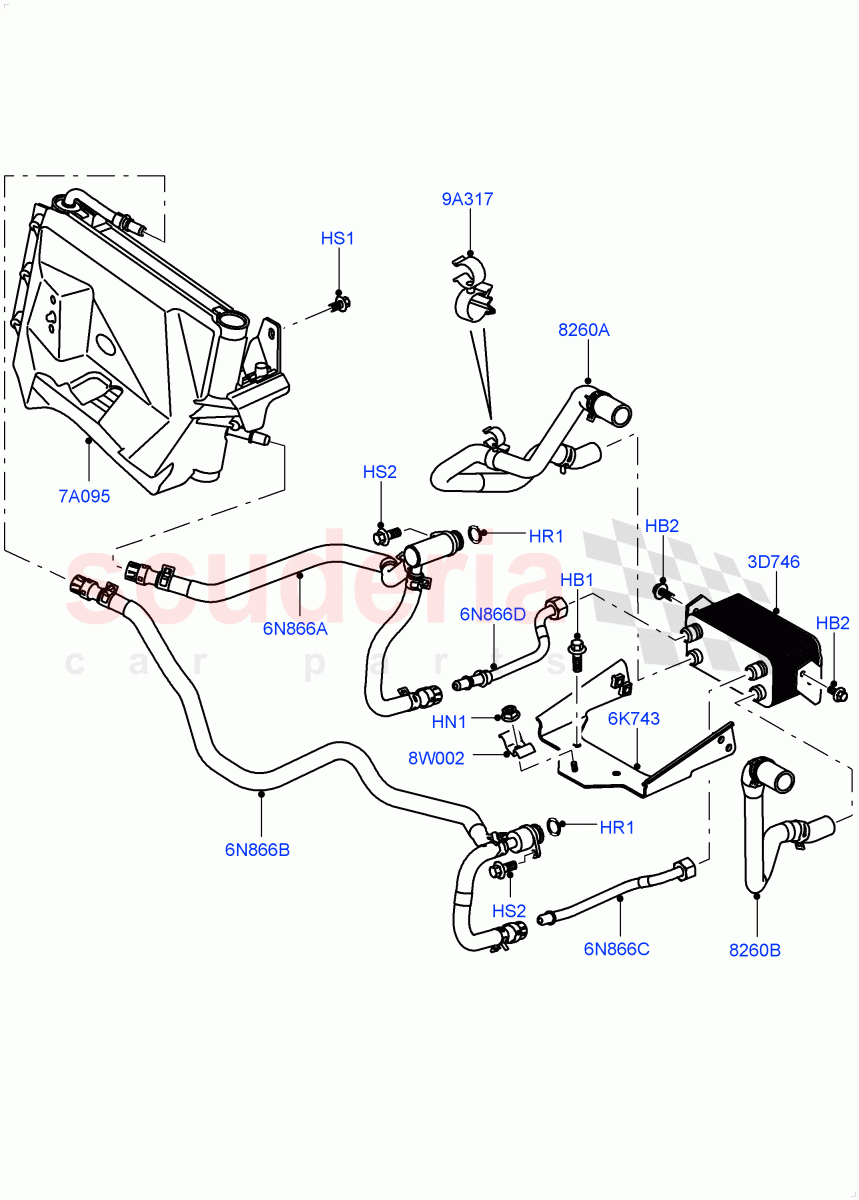

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYP500020	BOLT	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108167	SCREW	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106047L	NUT - FLANGED	$1.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PYX500030	RING - SEALING	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106127L	SCREW	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106167	Screw	$0.17	To Order

Photo	Part No	Description	Price (each)	Stock
	PBC500051	OIL COOLER	$423.59	To Order

Photo	Part No	Description	Price (each)	Stock
	UBU500092	BRACKET	$54.85	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH501112	HOSE - RADIATOR	$36.63	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH501122	HOSE - RADIATOR	$31.73	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR2806	CLAMP	$7.35	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC500110	CLIP	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	PBP500091	TUBE	$129.60	To Order

Photo	Part No	Description	Price (each)	Stock
	PBP500072	TUBE	$59.42	To Order

Photo	Part No	Description	Price (each)	Stock
	PBP500081	TUBE	$57.96	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	DYP500020	BOLT IN STOCK	DYP500020 BOLT M8 X 21MM IN STOCK	$0.77	3
HB2	FS108167	SCREW	FS108167 SCREW M8 X 16MM	$0.77	4
HN1	FN106047L	NUT - FLANGED IN STOCK	FN106047L NUT - FLANGED M6 IN STOCK	$1.78	1
HR1	PYX500030	RING - SEALING	PYX500030 RING - SEALING 11.78 X 2.7MM	$1.30	1
HS1	FS106127L	SCREW	FS106127L SCREW M6 x 12MM	$2.01	3
HS2	FS106167	Screw	FS106167 Screw M6 X 16MM	$0.17	2
3D746	PBC500051	OIL COOLER	PBC500051 OIL COOLER	$423.59	1
6K743	UBU500092	BRACKET	UBU500092 BRACKET	$54.85	1
6N866A	PBP500091	TUBE	PBP500091 TUBE	$129.60	1
6N866B	PBP500102	TUBE	PBP500102 TUBE To: 6A964493	$129.60	1
6N866B	PBP500105	TUBE IN STOCK	PBP500105 TUBE From: 6A964494 IN STOCK	$130.04	1
6N866C	PBP500072	TUBE	PBP500072 TUBE	$59.42	1
6N866D	PBP500081	TUBE	PBP500081 TUBE	$57.96	1
7A095	PBC500063	OIL COOLER	PBC500063 OIL COOLER To: 5A919828	$494.92	1
7A095	PBC500200	OIL COOLER	PBC500200 OIL COOLER From: 5A919829	$557.43	1
8W002	ESR2806	CLAMP	ESR2806 CLAMP	$7.35	1
9A317	PYC500110	CLIP	PYC500110 CLIP	$2.07	1
8260A	PCH501112	HOSE - RADIATOR	PCH501112 HOSE - RADIATOR	$36.63	1
8260B	PCH501122	HOSE - RADIATOR	PCH501122 HOSE - RADIATOR	$31.73	1

Oil Cooler And Filter (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]
