Name: Oil Cooler And Filter (AJ Petrol 4.2 V8 Supercharged)
Rating: 4.4 (1 reviews)

View All

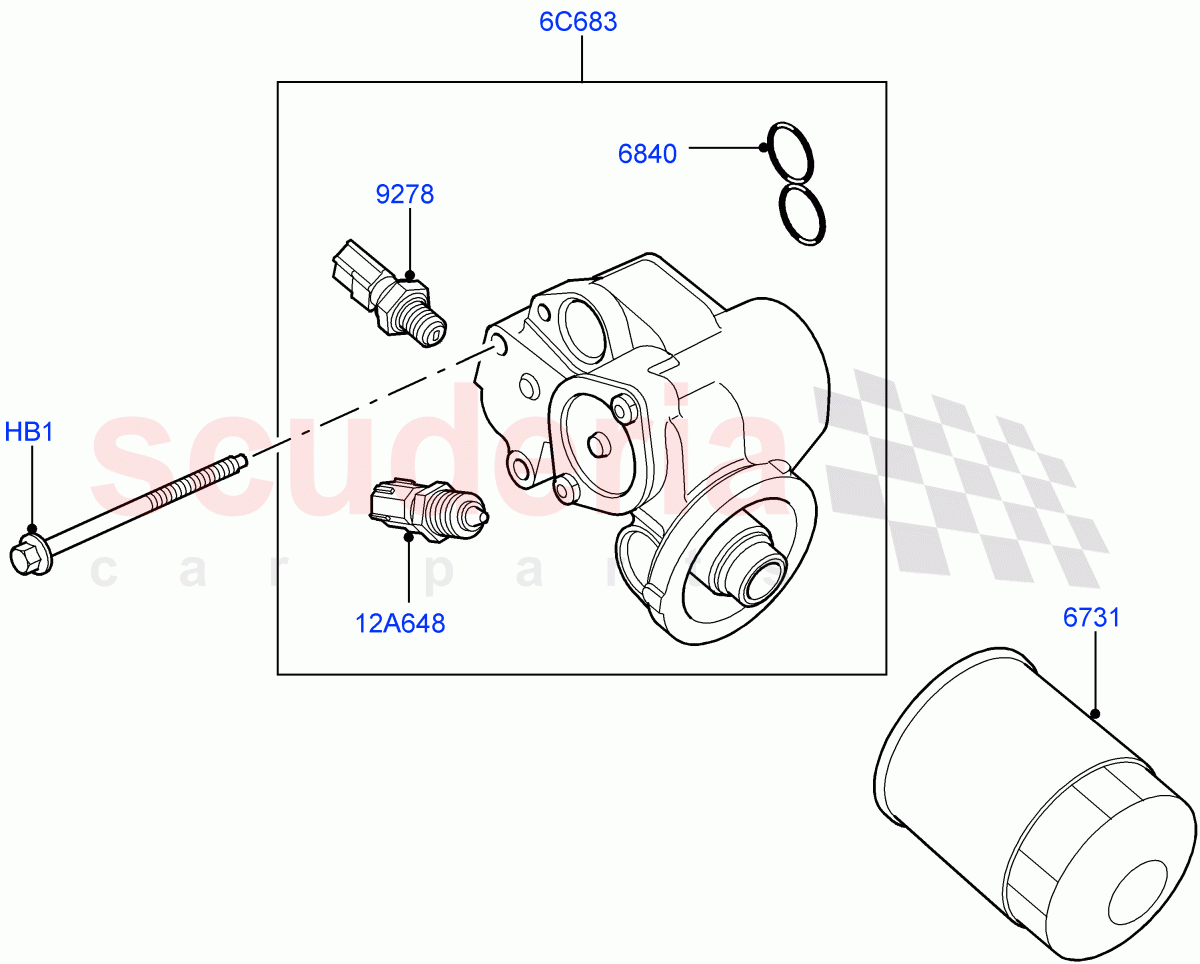

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4556041	BOLT	$6.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LVF500010	GASKET	$5.80	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4556041	BOLT	4556041 BOLT M8 X 101MM	$6.80	3
6C683	4629173	FILTER	4629173 FILTER To: 6A916350	$230.91	1
6C683	4740869	FILTER	4740869 FILTER From: 6A916351 / To: 6A999999	$230.72	1
6C683	LR003833	FILTER	LR003833 FILTER From: 7A000001	$942.79	1
12A648	4337456	SENDER	4337456 SENDER Used As Coolant Temp Sensor And Engine Oil Temp Sensor On Some Applications / To: 8A170886	$30.83	1
12A648	LR018397	SENDER	LR018397 SENDER Used As Coolant Temp Sensor And Engine Oil Temp Sensor On Some Applications / From: 8A170887	$58.20	1
6731	LR031439	FILTER - OIL	LR031439 FILTER - OIL To: 6A999999	$29.31	1
6731	LR007160	FILTER - OIL	LR007160 FILTER - OIL From: 7A000001 / To: CA744359	$34.14	1
6731	LR031439	FILTER - OIL	LR031439 FILTER - OIL From: CA744360	$29.31	1
6840	LVF500010	GASKET	LVF500010 GASKET	$5.80	1
9278	4176809	SWITCH - OIL PRESSURE	4176809 SWITCH - OIL PRESSURE To: 6A916350	$19.59	1
9278	4737666	SWITCH - OIL PRESSURE	4737666 SWITCH - OIL PRESSURE From: 6A916351	$28.03	1

Oil Cooler And Filter (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]
