Heater Hoses (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Heater Hoses (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108167 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
PEK500080 CLIP - DOUBLE $10.72 To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW $2.01 To Order
Photo Part No Description Price (each) Stock
PCH502150 SHIELD - SPLASH $5.86 To Order
PCH502850 SHIELD $7.79 To Order
Photo Part No Description Price (each) Stock
PEU500051 BRACKET $1.96 To Order
Photo Part No Description Price (each) Stock
WAP500380 TUBE - EGR VALVE TO EXHAUST MANIFLD $248.14 To Order
PEH500034 HOSE - HEATER WATER $219.65 To Order
PEH500033 HOSE - HEATER WATER $78.11 To Order
Photo Part No Description Price (each) Stock
PCH503320 HOSE AND CONNECTOR $112.74 To Order
PCH502320 HOSE - RADIATOR $793.85 To Order
Photo Part No Description Price (each) Stock
JHB500822 HOSE - HEATER WATER $163.61 To Order
JHB501670 HOSE AND CONNECTOR $396.39 To Order
Photo Part No Description Price (each) Stock
PCH502091 HOSE - HEATER WATER $608.60 To Order
JHB501690 HOSE - VENT $626.26 To Order
View All

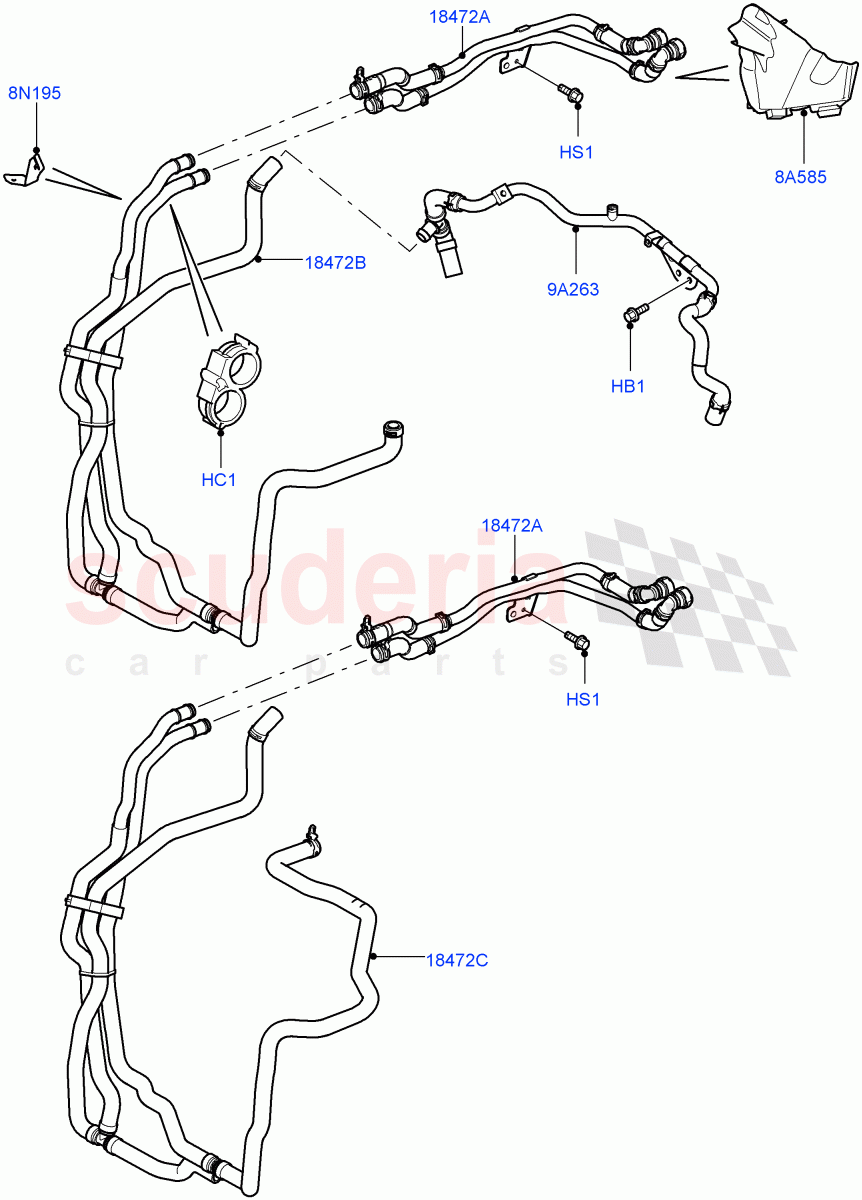

Heater Hoses (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108167
SCREW
M8 X 16MM 		$0.77 1
HC1 PEK500080
CLIP - DOUBLE
Double 		$10.72 1
HS1 FS106127L
SCREW
M6 x 12MM 		$2.01 1
8A585 PCH502150
SHIELD - SPLASH
To: 5A914111 		$5.86 1
8A585 PCH502850
SHIELD
From: 5A914112 		$7.79 1
8N195 PEU500051
BRACKET 		$1.96 1
9A263 WAP500380
TUBE - EGR VALVE TO EXHAUST MANIFLD
Stage IV + DPF Emissions / Cooled EGR, Outlet / From: 7A000001 		$248.14 1
9A263 PEH500034
HOSE - HEATER WATER
EU2 / Cooled EGR, Outlet / From: 5A914112 		$219.65 1
9A263 PEH500033
HOSE - HEATER WATER
Euro Consolidated Directive 3 / Cooled EGR, Outlet / To: 5A914111 		$78.11 1
18472A PCH503320
HOSE AND CONNECTOR
To Heater Hoses, To Heater Matrix / From: 8A176541 		$112.74 1
18472A PCH502320
HOSE - RADIATOR
To Heater Hoses, To Heater Matrix / To: 8A176540 		$793.85 1
18472B JHB500822
HOSE - HEATER WATER
EU2, With Fuel Fired Heater / Thermostat Housing To Heater Tube 		$163.61 1
18472B JHB501670
HOSE AND CONNECTOR
Euro Stage 4 Emissions, With Fuel Fired Heater / Thermostat Housing To Heater Tube / From: 7A000001 		$396.39 1
18472C PCH502091
HOSE - HEATER WATER
Euro Consolidated Directive 3, With Fresh Air Heater / Thermostat Housing To Heater Tube 		$608.60 1
18472C JHB501690
HOSE - VENT
Euro Stage 4 Emissions, With Fresh Air Heater / Thermostat Housing To Heater Tube / From: 7A000001 		$626.26 1
