Heater/Air Cond.internal Components ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Heater/Air Cond.Internal Components ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
JYG500011 BOLT $0.77 To Order
Photo Part No Description Price (each) Stock
JEC000753 HEATER $1,525.79 To Order
JEC000743 HEATER $1,525.79 To Order
JEC501480 AIR-CON UNIT $1,518.07 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
PCE500010 MODULE-CONTROL $103.35 To Order
Photo Part No Description Price (each) Stock
JEZ500020 TUBE - HEATER WATER $180.38 To Order
Photo Part No Description Price (each) Stock
JGC500050 MOTOR AND FAN - BLOWER $229.06 To Order
JGC500010 MOTOR AND FAN - BLOWER $251.98 To Order
Photo Part No Description Price (each) Stock
JQD500010 VALVE - EVAPORATOR EXPANSION $248.95 To Order
Photo Part No Description Price (each) Stock
JQB500010 EVAPORATOR $592.49 To Order
Photo Part No Description Price (each) Stock
JEP500010 SEAL $41.29 To Order
Photo Part No Description Price (each) Stock
JGK500010 WIRING $127.70 To Order
JGK500030 WIRING $123.40 To Order
JGK500090 WIRING $129.60 To Order
Photo Part No Description Price (each) Stock
JTF500020 SENSOR - HEATER TEMPERATURE CONTROL $55.06 To Order
Photo Part No Description Price (each) Stock
JQR500040 CLAMP $149.51 To Order
Photo Part No Description Price (each) Stock
JHO500010 O-RING $10.15 To Order
Photo Part No Description Price (each) Stock
JKR500020 FILTER - POLLEN $115.83 To Order
JKR500010 FILTER - POLLEN $85.32 To Order
Photo Part No Description Price (each) Stock
JQS500030 GROMMET $20.64 To Order
Photo Part No Description Price (each) Stock
LR017030 CORE - HEATER $623.34 To Order
Photo Part No Description Price (each) Stock
JEP500020 MATRIX - HEATER $202.98 To Order
Photo Part No Description Price (each) Stock
JNC500010 MOTOR $73.33 To Order
JNC500020 MOTOR $73.33 To Order
JNC500040 MOTOR - COOLING BLOWER $142.90 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JWO500010 MOTOR $52.49 To Order
Photo Part No Description Price (each) Stock
JWO500020 MOTOR $111.49 To Order
Photo Part No Description Price (each) Stock
JWO500030 MOTOR $111.85 To Order
Photo Part No Description Price (each) Stock
JWO500040 MOTOR $78.73 To Order
View All

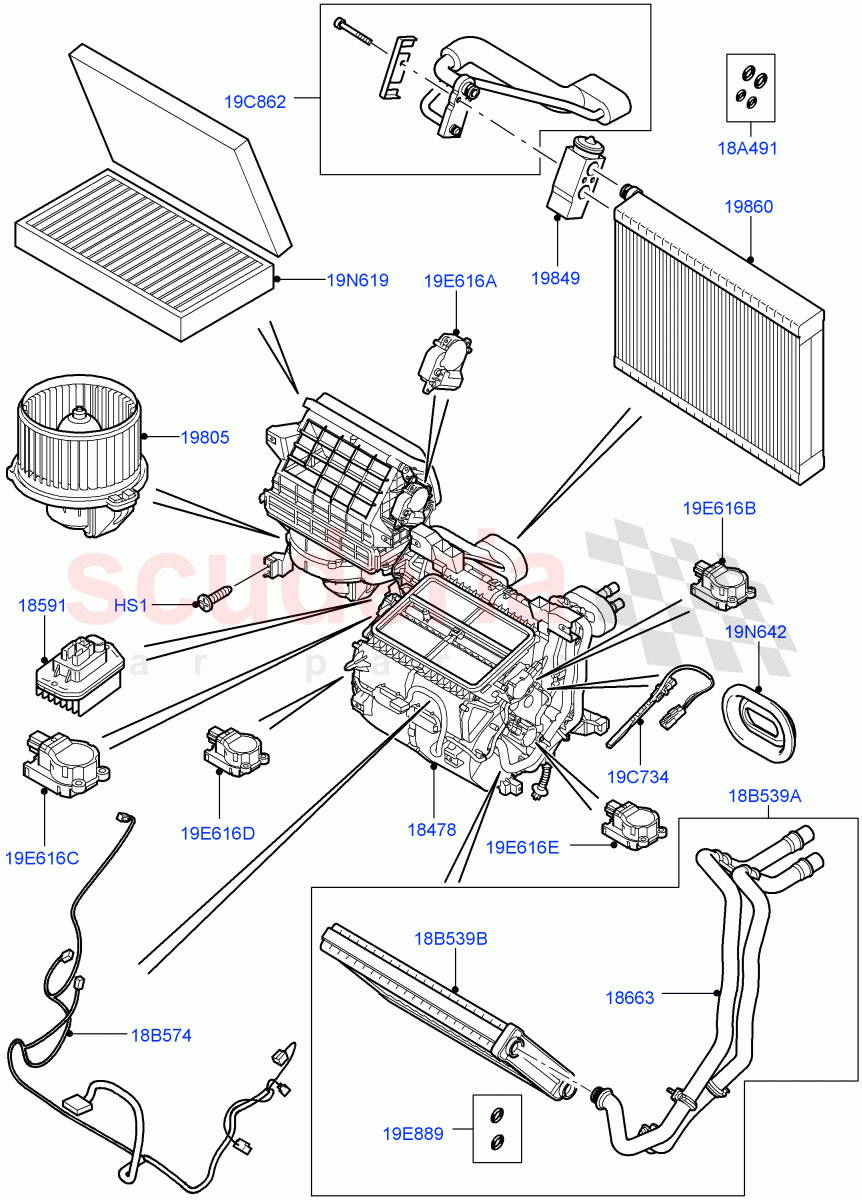

Heater/Air Cond.Internal Components ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 JYG500011
BOLT
M6 X 33 		$0.77 2
18A491 JEP500010
SEAL
With Air Conditioning / Pack Of Four (4) 		$41.29 1
18B539A LR017030
CORE - HEATER
With Air Conditioning / From: 9A200661 		$623.34 1
18B539B JEP500020
MATRIX - HEATER
With Air Conditioning / To: 9A200660 		$202.98 1
18B574 JGK500010
WIRING
(-)"J", LHD, With Air Conditioning / To: 6A999999 		$127.70 1
18B574 JGK500030
WIRING
RHD, With Air Conditioning 		$123.40 1
18B574 JGK500090
WIRING
(-)"J", LHD, With Air Conditioning / From: 7A000001 		$129.60 1
19C734 JTF500020
SENSOR - HEATER TEMPERATURE CONTROL
With Air Conditioning 		$55.06 1
19C862 JQR500040
CLAMP
Dual Tube Assy 		$149.51 1
19E616A JNC500010
MOTOR
LHD / To: 7A999999 		$73.33 1
19E616A JNC500020
MOTOR
RHD, With Air Conditioning / For The Lever Please Order The Blower Assy, Recirculation / To: 7A999999 		$73.33 1
19E616A JNC500040
MOTOR - COOLING BLOWER
LHD / From: 8A000001 		$142.90 1
19E616A JNC500050
MOTOR - COOLING BLOWER
RHD, With Air Conditioning / For The Lever Please Order The Blower Assy, Recirculation / From: 8A000001 		$88.18 1
19E616B JWO500010
MOTOR
Defrost Stepper 		$52.49 1
19E616C JWO500020
MOTOR
Face/Footwell Stepper 		$111.49 1
19E616D JWO500030
MOTOR
Air Mix Left Stepper 		$111.85 1
19E616E JWO500040
MOTOR
Air Mix Right Stepper 		$78.73 1
19E889 JHO500010
O-RING
With Air Conditioning 		$10.15 2
19N619 JKR500020
FILTER - POLLEN
Air Intake, Filter - Odour And Particles, Production Replacement, Standard 		$115.83 1
19N619 JKR500010
FILTER - POLLEN
Air Intake, Production Installed, Standard 		$85.32 1
19N642 JQS500030
GROMMET 		$20.64 1
18478 JEC000753
HEATER
LHD, With Air Conditioning / To: 6A999999 		$1,525.79 1
18478 JEC000743
HEATER
RHD, With Air Conditioning / To: 6A999999 		$1,525.79 1
18478 JEC501480
AIR-CON UNIT
LHD, With Air Conditioning / From: 7A000001 / To: 8A146993 		$1,518.07 1
18478 JEC501470
SEAL
RHD, With Air Conditioning / From: 7A000001 / To: 8A146993 		$1,518.07 1
18478 JEC501650
HEATER
RHD, With Air Conditioning / From: 8A146994 / To: 9A200660 		$1,495.63 1
18478 JEC501660
HEATER
LHD, With Air Conditioning / From: 8A146994 / To: 9A200660 		$1,518.79 1
18478 LR016858
HEATER
RHD, With Air Conditioning / From: 9A200661 / To: 9A206018 		$1,445.79 1
18478 LR016859
HEATER
LHD, With Air Conditioning / From: 9A200661 / To: 9A206018 		$1,446.50 1
18478 LR018855
HEATER
ATC Air Conditioning, RHD / From: 9A206019 / To: 9A213750 		$1,574.01 1
18478 LR018856
HEATER
ATC Air Conditioning, LHD / From: 9A206019 / To: 9A213750 		$1,574.01 1
18478 LR031675
HEATER
ATC Air Conditioning, RHD / From: 9A213751 / To: 9A214751 		$1,460.14 1
18478 LR031676
HEATER
ATC Air Conditioning, LHD / From: 9A213751 / To: 9A214751 		$1,428.88 1
18478 LR066832
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, RHD / From: 9A214752 		$1,818.42 1
18478 LR066833
HEATER & EVAPORATOR UNIT
ATC Air Conditioning, LHD / From: 9A214752 		$1,737.85 1
18591 PCE500010
MODULE-CONTROL
With Air Conditioning 		$103.35 1
18663 JEZ500020
TUBE - HEATER WATER
With Air Conditioning 		$180.38 1
19805 JGC500050
MOTOR AND FAN - BLOWER
LHD, With Air Conditioning 		$229.06 1
19805 JGC500010
MOTOR AND FAN - BLOWER
RHD, With Air Conditioning 		$251.98 1
19849 JQD500010
VALVE - EVAPORATOR EXPANSION
With Air Conditioning 		$248.95 1
19860 JQB500010
EVAPORATOR
With Air Conditioning 		$592.49 1
