Name: Heater/Air Cond.External Components ((V) TO9A999999)
Rating: 4.2 (1 reviews)

View All

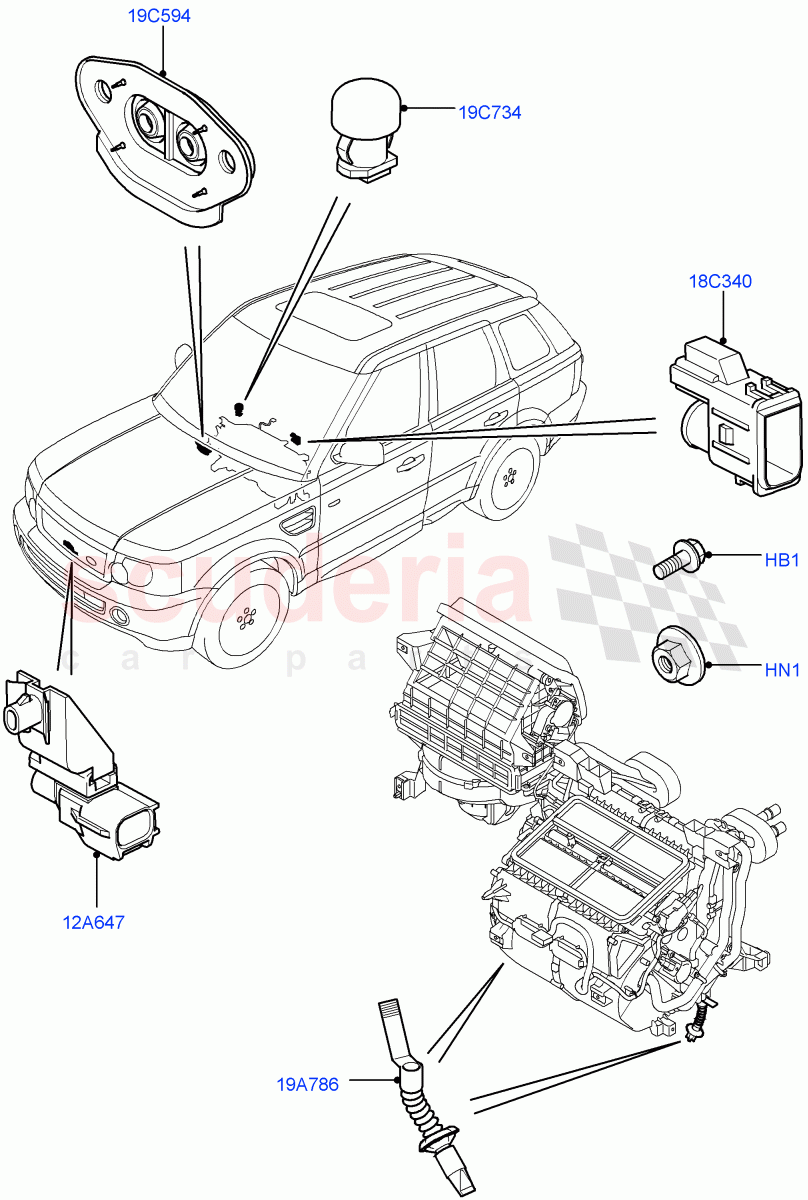

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB106067L	BOLT	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR1560	NUT - FLANGED	$2.79	To Order

Photo	Part No	Description	Price (each)	Stock
	JTF000052	SENSOR - AIR COND. AMBIENT AIR	$25.03	To Order

Photo	Part No	Description	Price (each)	Stock
	JTF500010	SENSOR - HEATER TEMPERATURE CONTROL	$39.87	To Order
	JTF000060	SENSOR - HEATER TEMPERATURE CONTROL	$119.79	To Order

Photo	Part No	Description	Price (each)	Stock
	JTF000070	SENSOR - HEATER TEMPERATURE CONTROL	$40.28	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB106067L	BOLT	FB106067L BOLT (M6)	$1.22	1
HN1	ESR1560	NUT - FLANGED	ESR1560 NUT - FLANGED M6	$2.79	2
12A647	JTF000052	SENSOR - AIR COND. AMBIENT AIR	JTF000052 SENSOR - AIR COND. AMBIENT AIR Pollution Sensor	$25.03	1
18C340	JTF500010	SENSOR - HEATER TEMPERATURE CONTROL	JTF500010 SENSOR - HEATER TEMPERATURE CONTROL (-)"J"	$39.87	1
18C340	JTF000060	SENSOR - HEATER TEMPERATURE CONTROL	JTF000060 SENSOR - HEATER TEMPERATURE CONTROL (+)"J", With Air Conditioning	$119.79	1
19A786	JUB500021	TUBE - WATER DRAIN	JUB500021 TUBE - WATER DRAIN To: 9A206018	$5.27	2
19A786	JUB500170	TUBE - WATER DRAIN	JUB500170 TUBE - WATER DRAIN From: 9A206019	$7.94	2
19C594	JEE000022	SEAL	JEE000022 SEAL To: 6A999999	$20.98	1
19C594	JEE500030	GROMMET	JEE500030 GROMMET From: 7A000001	$24.64	1
19C734	JTF000070	SENSOR - HEATER TEMPERATURE CONTROL	JTF000070 SENSOR - HEATER TEMPERATURE CONTROL With Air Conditioning	$40.28	1

Heater/Air Cond.external Components ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]
