Name: Splash And Heat Shields (Body) ((V) TO9A999999)
Rating: 5.0 (1 reviews)

Splash And Heat Shields (Body) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Splash And Heat Shields (Body) ((V) TO9A999999)

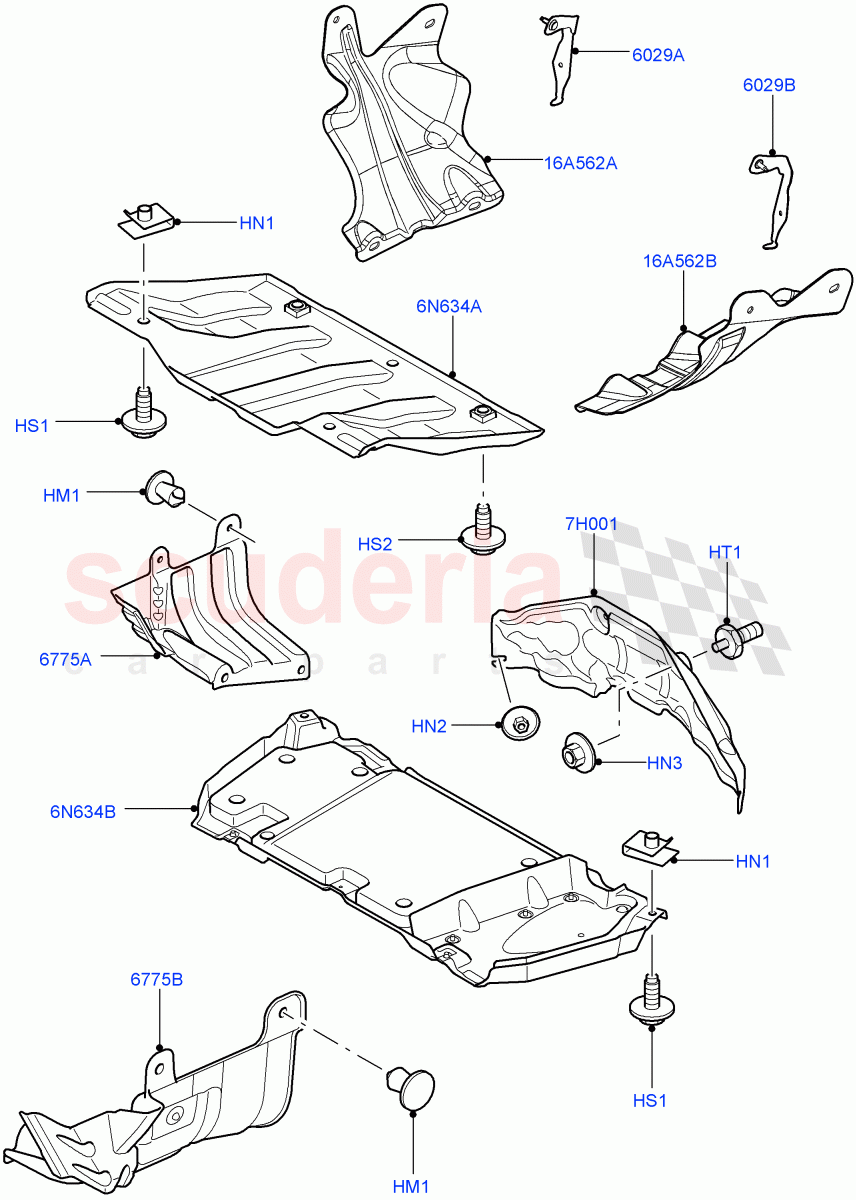

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	$2.67	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	$1.24	To Order
	AYH100790	NUT - SPECIAL	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	$2.67	IN STOCK
	WYH500050	NUT - LOCKING	$2.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ESR1560	NUT - FLANGED	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.36	IN STOCK
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS110206	BOLT - HEX.HEAD	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	WYR500020	STUD	$5.31	To Order
	WYR500021	STUD	$5.42	To Order

Photo	Part No	Description	Price (each)	Stock
	KKJ500080	BRACKET	$7.49	To Order

Photo	Part No	Description	Price (each)	Stock
	KKJ500090	BRACKET	$7.49	To Order

Photo	Part No	Description	Price (each)	Stock
	KRN500071	SHIELD - ENGINE LOWER	$170.65	To Order
	KRN500042	SHIELD - ENGINE LOWER	$44.62	To Order

Photo	Part No	Description	Price (each)	Stock
	KRN500052	SHIELD - ENGINE LOWER	$44.62	To Order
	KRN500062	SHIELD - ENGINE LOWER	$44.62	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500233	HEAT SHIELD	$99.66	To Order

Photo	Part No	Description	Price (each)	Stock
	KRB000122	SHIELD	$42.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	KRB500032	SHIELD	$135.82	To Order
	KRB500033	SHIELD - ENGINE COMPARTMENT SPLASH	$165.67	To Order
	KRB500280	SHIELD - ENGINE COMPARTMENT SPLASH	$175.61	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CLE500040	GUARD - FRONT SPLASH	$12.18	To Order

Photo	Part No	Description	Price (each)	Stock
	CLE500050	GUARD - FRONT SPLASH	$12.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin, Shield, Side, Undertray	$2.67	8
HN1	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring, Radiator, Shield	$1.24	2
HN1	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL Lion Diesel 2.7 V6 (140KW) / M6 X 0.5-4, Nut "U" Spring, Shield, Transmission	$1.24	4
HN2	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING Lion Diesel 2.7 V6 (140KW) / Bulkhead, Heat Shield, M5 / To: 6A999999 IN STOCK	$2.67	2
HN2	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING Lion Diesel 2.7 V6 (140KW) / Bulkhead, Heat Shield, M5 / From: 7A000001 IN STOCK	$2.67	2
HN3	ESR1560	NUT - FLANGED	ESR1560 NUT - FLANGED Lion Diesel 2.7 V6 (140KW) / Bulkhead, Heat Shield, M6	$2.77	2
HS1	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Lion Diesel 2.7 V6 (140KW) / Hexagonal Head, M6 X 13.5MM, Shield, Transmission IN STOCK	$0.36	6
HS1	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM, Radiator, Shield IN STOCK	$0.36	5
HS2	FS110206	BOLT - HEX.HEAD	FS110206 BOLT - HEX.HEAD Hexagonal Head, M10 X 20MM, Radiator, Shield	$0.78	2
HT1	WYR500020	STUD	WYR500020 STUD Lion Diesel 2.7 V6 (140KW) / Bulkhead, Heat Shield / To: 6A999999	$5.31	2
HT1	WYR500021	STUD	WYR500021 STUD Bulkhead, Heat Shield, M6 / From: 7A000001	$5.42	3
6N634A	KRB000122	SHIELD IN STOCK	KRB000122 SHIELD Radiator IN STOCK	$42.73	1
6N634B	KRB500032	SHIELD	KRB500032 SHIELD Lion Diesel 2.7 V6 (140KW) / Transmission / To: 6A917952	$135.82	1
6N634B	KRB500033	SHIELD - ENGINE COMPARTMENT SPLASH	KRB500033 SHIELD - ENGINE COMPARTMENT SPLASH Lion Diesel 2.7 V6 (140KW) / Transmission / From: 6A917953 / To: 7A102151	$165.67	1
6N634B	KRB500280	SHIELD - ENGINE COMPARTMENT SPLASH	KRB500280 SHIELD - ENGINE COMPARTMENT SPLASH 3.6L V8 32V DOHC EFi Diesel Lion / Transmission / From: 7A000001 / To: 8A127075	$175.61	1
6N634B	KRB500300	SHIELD - ENGINE COMPARTMENT SPLASH	KRB500300 SHIELD - ENGINE COMPARTMENT SPLASH 3.6L V8 32V DOHC EFi Diesel Lion / Transmission / From: 8A127076	$191.36	1
6N634B	KRB500290	SHIELD - ENGINE COMPARTMENT SPLASH	KRB500290 SHIELD - ENGINE COMPARTMENT SPLASH Lion Diesel 2.7 V6 (140KW) / Transmission / From: 7A102152	$163.87	1
7H001	WEB500233	HEAT SHIELD	WEB500233 HEAT SHIELD Lion Diesel 2.7 V6 (140KW) / Bulkhead	$99.66	1
16A562A	CLE500040	GUARD - FRONT SPLASH	CLE500040 GUARD - FRONT SPLASH 3.6L V8 32V DOHC EFi Diesel Lion / RH / From: 7A000001	$12.18	1
16A562B	CLE500050	GUARD - FRONT SPLASH	CLE500050 GUARD - FRONT SPLASH 3.6L V8 32V DOHC EFi Diesel Lion / LH / From: 7A000001	$12.18	1
6029A	KKJ500080	BRACKET	KKJ500080 BRACKET 3.6L V8 32V DOHC EFi Diesel Lion, With ACE Suspension / RH, Heat Shield / From: 7A000001	$7.49	1
6029B	KKJ500090	BRACKET	KKJ500090 BRACKET 3.6L V8 32V DOHC EFi Diesel Lion, With ACE Suspension / LH, Heat Shield / From: 7A000001	$7.49	1
6775A	KRN500071	SHIELD - ENGINE LOWER	KRN500071 SHIELD - ENGINE LOWER 3.6L V8 32V DOHC EFi Diesel Lion / RH, Side, Undertray	$170.65	1
6775A	KRN500042	SHIELD - ENGINE LOWER	KRN500042 SHIELD - ENGINE LOWER Lion Diesel 2.7 V6 (140KW) / RH, Side, Undertray	$44.62	1
6775B	KRN500052	SHIELD - ENGINE LOWER	KRN500052 SHIELD - ENGINE LOWER With Fresh Air Heater / LH, Side, Undertray	$44.62	1
6775B	KRN500062	SHIELD - ENGINE LOWER	KRN500062 SHIELD - ENGINE LOWER With Fuel Fired Heater / LH, Side, Undertray	$44.62	1

Splash And Heat Shields (Body) ((V) To9A999999)
