Front Panels, Aprons & Side Members (Front End Carrier) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Front Panels, Aprons & Side Members (Front End Carrier) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DYP500090 BOLT - HEX.HEAD $0.52 To Order
Photo Part No Description Price (each) Stock
DYG000022 BOLT $10.61 To Order
DYG000023 BOLT $9.20 To Order
LR015148 BOLT $5.15 To Order
Photo Part No Description Price (each) Stock
BYP100190 BOLT $1.37 To Order
Photo Part No Description Price (each) Stock
AYU500011 DOWEL $2.08 To Order
Photo Part No Description Price (each) Stock
DYB500020 PLUG $9.35 To Order
Photo Part No Description Price (each) Stock
DYG000033 BOLT $9.95 To Order
DYG000034 SCREW $9.31 To Order
LR015149 SCREW $5.02 To Order
Photo Part No Description Price (each) Stock
DYF500082 SPACER $44.03 To Order
DYF500092 SPACER $44.03 To Order
Photo Part No Description Price (each) Stock
DYF500202 SPACER $55.90 To Order
Photo Part No Description Price (each) Stock
DYF500101 SPACER $64.67 To Order
Photo Part No Description Price (each) Stock
ASU780221 BRACKET $29.46 To Order
ASU780231 BRACKET $29.46 To Order
Photo Part No Description Price (each) Stock
DIN500020 FRONT END $732.36 To Order
LR013044 FRONT END $716.48 To Order
View All

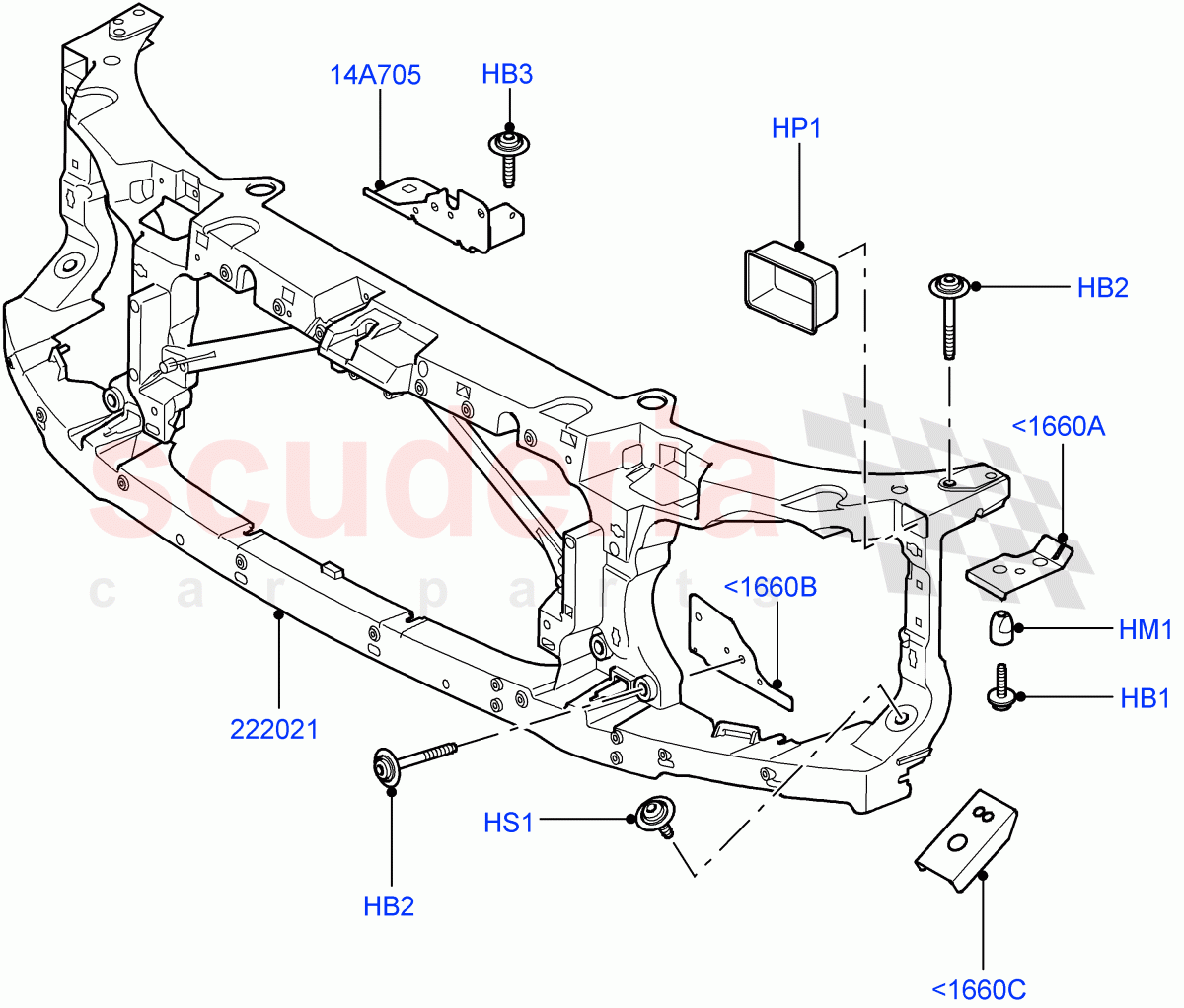

Front Panels, Aprons & Side Members (Front End Carrier) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<1660A DYF500082
SPACER
RH, Upper Valance 		$44.03 1
<1660A DYF500092
SPACER
LH, Upper Valance 		$44.03 1
<1660B DYF500202
SPACER
Frame Mounted, Rear 		$55.90 2
<1660C DYF500101
SPACER
Lower Valance 		$64.67 2
HB1 DYP500090
BOLT - HEX.HEAD
M4 x 14MM 		$0.52 2
HB2 DYG000022
BOLT
Upper Valance / To: 6A913228 		$10.61 4
HB2 DYG000023
BOLT
Upper Valance / From: 6A913229 / To: 9A205813 		$9.20 4
HB2 LR015148
BOLT
M8 X 1.25, Upper Valance / From: 9A205814 		$5.15 4
HB3 BYP100190
BOLT
Bracket, M8 x 28MM 		$1.37 4
HM1 AYU500011
DOWEL
M4, Pin - Dowell 		$2.08 2
HP1 DYB500020
PLUG
Blanking 		$9.35 2
HS1 DYG000033
BOLT
Lower Valance, M8 x 30MM / To: 6A913228 		$9.95 2
HS1 DYG000034
SCREW
Lower Valance, M8 x 30MM / From: 6A913229 / To: 9A207452 		$9.31 2
HS1 LR015149
SCREW
Lower Valance, M8 x 30MM / From: 9A207453 		$5.02 2
14A705 ASU780221
BRACKET
RH, Front End Carrier 		$29.46 1
14A705 ASU780231
BRACKET
LH, Front End Carrier 		$29.46 1
222021 DIN500020
FRONT END
To: 9A210232 		$732.36 1
222021 LR013044
FRONT END
From: 9A210233 		$716.48 1
