Air Deflectors ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Air Deflectors ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AZ610081 SCREW $2.46 To Order
Photo Part No Description Price (each) Stock
WJ105001 Washer $0.09 To Order
WJ105004 WASHER $0.59 To Order
Photo Part No Description Price (each) Stock
DHN000093 DUCT - AIR $14.08 To Order
DHN500033 DUCT - AIR $10.41 To Order
DHN500012 DUCT - AIR $18.31 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
DHN000082 DUCT - AIR $19.57 To Order
DHN500071 DUCT - AIR $14.53 To Order
LR013042 DEFLECTOR - AIR $39.85 To Order
Photo Part No Description Price (each) Stock
DXJ500060 DUCT - AIR $244.00 To Order
DXJ500070 DUCT - AIR $221.29 To Order
DXJ500121 DUCT - AIR $352.24 To Order
Photo Part No Description Price (each) Stock
DZL500011 PAD - RADIATOR BAFFLE $10.26 To Order
DZL500050 PAD - FOAM $9.48 To Order
Photo Part No Description Price (each) Stock
DZL500030 PAD - FOAM $9.52 To Order
Photo Part No Description Price (each) Stock
DZL500040 PAD - FOAM $35.02 To Order
View All

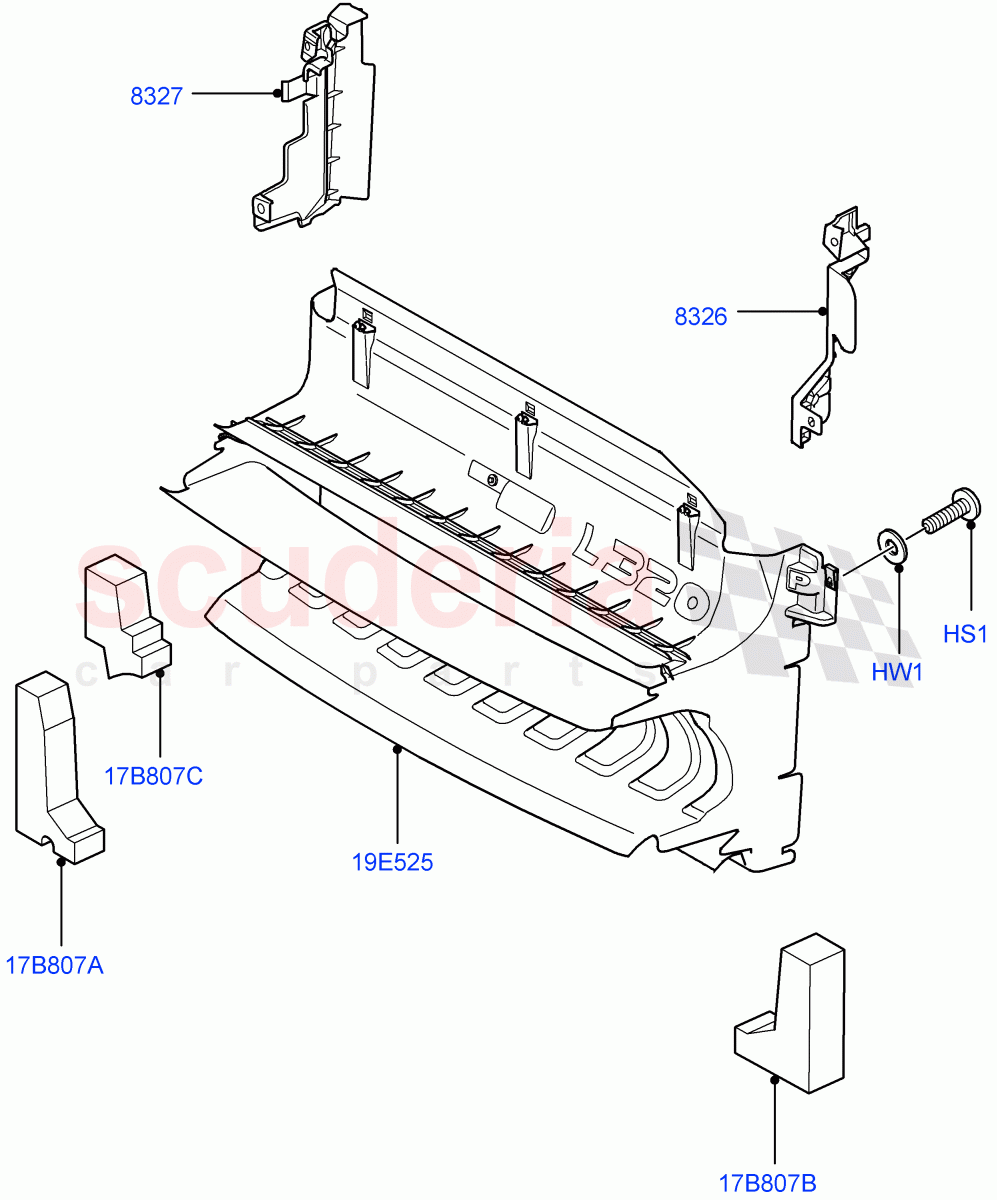

Air Deflectors ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 AZ610081
SCREW
Centre Air Cooling Duct, No.10 		$2.46 2
HW1 WJ105001
Washer
Centre Air Cooling Duct, M5, Plain / To: 7A118541 		$0.09 2
HW1 WJ105004
WASHER
Centre Air Cooling Duct, M5, Plain / From: 7A118542 		$0.59 2
17B807A DZL500011
PAD - RADIATOR BAFFLE
Lion Diesel 2.7 V6 (140KW) / RH, Lower 		$10.26 1
17B807A DZL500050
PAD - FOAM
AJ Petrol 4.4 V8 EFI (220KW) / RH, Lower 		$9.48 1
17B807B DZL500030
PAD - FOAM
LH 		$9.52 1
17B807C DZL500040
PAD - FOAM
Lion Diesel 2.7 V6 (140KW) / RH, Upper 		$35.02 1
19E525 DXJ500060
DUCT - AIR
AJ Petrol 4.4 V8 EFI (220KW) / Centre Air Cooling Duct, Contains Ambient Air Temperature Sensor 		$244.00 1
19E525 DXJ500070
DUCT - AIR
Lion Diesel 2.7 V6 (140KW) / Centre Air Cooling Duct, Contains Ambient Air Temperature Sensor 		$221.29 1
19E525 DXJ500121
DUCT - AIR
3.6L V8 32V DOHC EFi Diesel Lion / Centre Air Cooling Duct, Contains Ambient Air Temperature Sensor / From: 7A000001 		$352.24 1
8326 DHN000093
DUCT - AIR
AJ Petrol 4.4 V8 EFI (220KW) / LH, Upper / To: 5A900045 		$14.08 1
8326 DHN500033
DUCT - AIR
Lion Diesel 2.7 V6 (140KW) / LH, Upper / To: 5A900045 		$10.41 1
8326 DHN500012
DUCT - AIR
AJ Petrol 4.2 V8 Supercharged / LH, Upper / To: 5A900185 		$18.31 1
8326 DHN500013
DEFLECTOR - AIR
AJ Petrol 4.2 V8 Supercharged / LH, Upper / From: 5A900186 		$39.54 1
8326 DHN000094
DEFLECTOR - AIR
AJ Petrol 4.4 V8 EFI (220KW) / LH, Upper / From: 5A900046 		$12.98 1
8326 DHN500034
DEFLECTOR - AIR
Lion Diesel 2.7 V6 (140KW) / LH, Upper / From: 5A900046 / To: 9A205839 		$14.00 1
8326 DHN500081
DEFLECTOR - AIR
3.6L V8 32V DOHC EFi Diesel Lion / LH, Upper / From: 7A000001 / To: 9A206906 		$12.43 1
8326 LR016838
DEFLECTOR - AIR
Lion Diesel 2.7 V6 (140KW) / LH, Upper / From: 9A205840 		$41.27 1
8326 LR013543
DEFLECTOR - AIR
3.6L V8 32V DOHC EFi Diesel Lion / LH, Upper / From: 9A206907 		$38.52 1
8327 DHN000082
DUCT - AIR
RH, Upper 		$19.57 1
8327 DHN500071
DUCT - AIR
3.6L V8 32V DOHC EFi Diesel Lion / RH, Upper / From: 7A000001 / To: 9A211365 		$14.53 1
8327 LR013042
DEFLECTOR - AIR
3.6L V8 32V DOHC EFi Diesel Lion / RH, Upper / From: 9A211366 		$39.85 1
