Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB108131 Bolt $0.67 To Order
LR000620 BOLT $3.89 To Order
LR014364 BOLT $1.44 To Order
Photo Part No Description Price (each) Stock
6746838 BOLT - HEX.HEAD $0.76 To Order
LR000300 BOLT $6.51 To Order
Photo Part No Description Price (each) Stock
4364422 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
SQB000222 TUBE - VACUUM $35.41 To Order
LR018326 HOSE - VACUUM $35.53 To Order
Photo Part No Description Price (each) Stock
SQB000233 TUBE - VACUUM $15.29 To Order
Photo Part No Description Price (each) Stock
SQB000232 TUBE - VACUUM $14.94 To Order
LR018327 HOSE - VACUUM $23.69 To Order
Photo Part No Description Price (each) Stock
LR019757 HOSE - VACUUM $18.68 To Order
Photo Part No Description Price (each) Stock
LR019756 HOSE - VACUUM $61.15 To Order
LR019700 HOSE - VACUUM $79.94 To Order
Photo Part No Description Price (each) Stock
LR019758 HOSE - VACUUM $74.59 To Order
LR019701 HOSE - VACUUM $80.34 To Order
Photo Part No Description Price (each) Stock
1337470 PUMP - VACUUM $580.67 To Order
LR006649 PUMP - VACUUM $1,267.65 To Order
LR019761 PUMP - VACUUM $1,415.98 To Order
Photo Part No Description Price (each) Stock
LR019960 O-RING $42.43 To Order
Photo Part No Description Price (each) Stock
LR096060 GASKET - VACUUM PUMP $14.74 IN STOCK
Photo Part No Description Price (each) Stock
1334813 CAP $6.90 To Order
Photo Part No Description Price (each) Stock
TRU500020 BRACKET $2.93 To Order
Photo Part No Description Price (each) Stock
1331363 BRACKET $5.15 To Order
View All

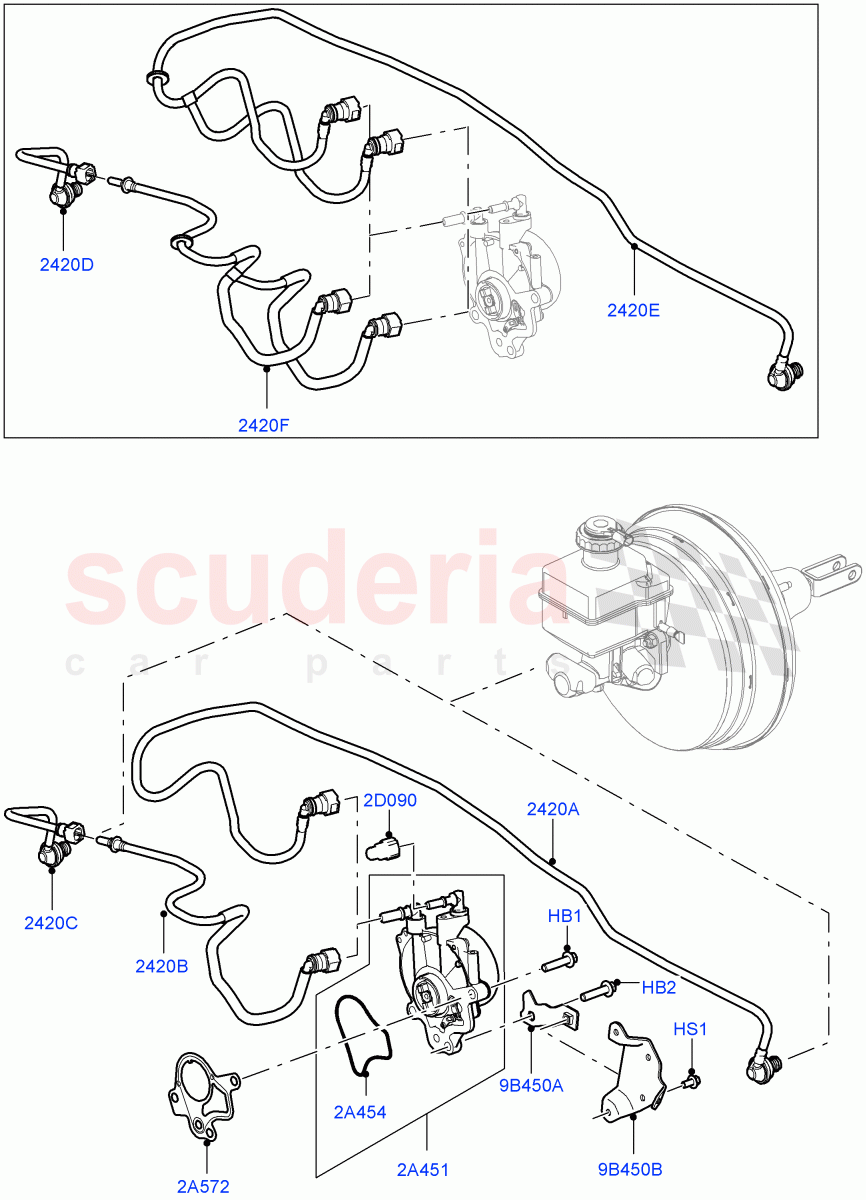

Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB108131
Bolt
M8 x 65MM / To: 6A999999 		$0.67 2
HB1 LR000620
BOLT
M8 x 65MM / From: 7A000001 / To: 8A999999 		$3.89 2
HB1 LR014364
BOLT
M8 x 65MM / From: 9A000001 		$1.44 2
HB2 6746838
BOLT - HEX.HEAD
M8 x 30MM / To: 7A999999 		$0.76 1
HB2 LR000300
BOLT
M8 X 30 / From: 8A000001 		$6.51 1
HS1 4364422
SCREW
M6 X 16MM 		$1.36 2
2A451 1337470
PUMP - VACUUM
To: 7A117727 		$580.67 1
2A451 LR006649
PUMP - VACUUM
From: 7A117728 / To: 9A888887 		$1,267.65 1
2A451 LR019761
PUMP - VACUUM
Service Kit / From: 9A888888 		$1,415.98 1
2A454 LR019960
O-RING
Pump - Vacuum 		$42.43 1
2A572 LR096060
GASKET - VACUUM PUMP
IN STOCK 		$14.74 1
2D090 1334813
CAP 		$6.90 1
9B450A TRU500020
BRACKET 		$2.93 1
9B450B 1331363
BRACKET 		$5.15 1
2420A SQB000222
TUBE - VACUUM
LHD, Lion Diesel 2.7 V6 (140KW) / To: 6A916812 		$35.41 1
2420A LR018326
HOSE - VACUUM
LHD, Lion Diesel 2.7 V6 (140KW) / From: 6A916813 		$35.53 1
2420B SQB000233
TUBE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD 		$15.29 1
2420C SQB000232
TUBE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD / To: 6A916812 		$14.94 1
2420C LR018327
HOSE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD / From: 6A916813 		$23.69 1
2420D LR019757
HOSE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		$18.68 1
2420E LR019756
HOSE - VACUUM
Euro Stage 4 Emissions, LHD, Lion Diesel 2.7 V6 (140KW) / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		$61.15 1
2420E LR019700
HOSE - VACUUM
LHD, Lion Diesel 2.7 V6 (140KW) / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		$79.94 1
2420F LR019758
HOSE - VACUUM
Euro Stage 4 Emissions, Lion Diesel 2.7 V6 (140KW), RHD / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		$74.59 1
2420F LR019701
HOSE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		$80.34 1
