Emission Control - Crankcase (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Emission Control - Crankcase (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4537592 BOLT - HEX.HEAD $2.52 To Order
LR003642 BOLT $1.43 To Order
Photo Part No Description Price (each) Stock
6726224 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
1337060 SEAL - OIL SEPARATOR $6.72 IN STOCK
Photo Part No Description Price (each) Stock
1335277 TUBE $186.97 To Order
LR006000 TUBE $216.16 To Order
LR005999 TUBE $200.19 To Order
Photo Part No Description Price (each) Stock
LR006392 TUBE $34.60 To Order
Photo Part No Description Price (each) Stock
1336520 BRACKET $13.12 To Order
Photo Part No Description Price (each) Stock
LLH500140 HOSE $17.53 To Order
Photo Part No Description Price (each) Stock
LR003386 SEPARATOR - OIL $55.87 To Order
LR006204 SEPARATOR - OIL $185.43 To Order
LR003386 SEPARATOR - OIL $55.87 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LSD500020 HEAT SHIELD $8.08 To Order
Photo Part No Description Price (each) Stock
LR000272 PIPE $14.48 To Order
View All

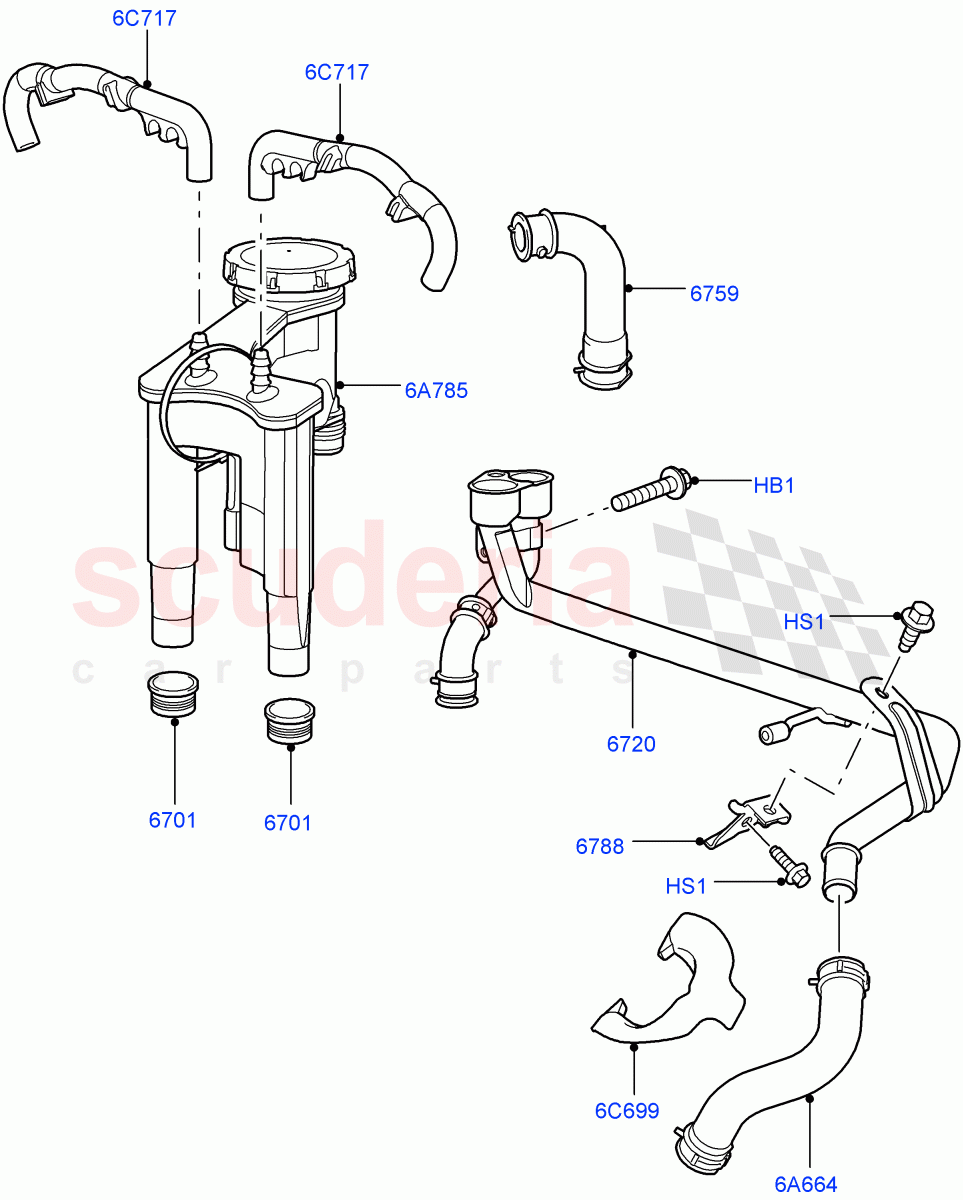

Emission Control - Crankcase (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4537592
BOLT - HEX.HEAD
M6 x 50MM / To: 6A999999 		$2.52 1
HB1 LR003642
BOLT
M6 X 45MM / From: 7A000001 		$1.43 1
HS1 6726224
SCREW
M6 X 16MM 		$0.64 2
6A664 LLH500140
HOSE 		$17.53 1
6A785 LR003386
SEPARATOR - OIL
EU2 / To: 6A999999 		$55.87 1
6A785 LR006204
SEPARATOR - OIL
Euro Stage 4 Emissions / From: 7A000001 / To: 9A213422 		$185.43 1
6A785 LR003386
SEPARATOR - OIL
Euro Consolidated Directive 3 / From: 7A000001 		$55.87 1
6A785 LR074003
SEPARATOR - OIL
Euro Stage 4 Emissions / From: 9A213423 		$173.98 1
6C699 LSD500020
HEAT SHIELD 		$8.08 1
6C717 LR000272
PIPE 		$14.48 2
6701 1337060
SEAL - OIL SEPARATOR
To Oil Separator
IN STOCK 		$6.72 2
6720 1335277
TUBE
EU2 / To: 6A999999 		$186.97 1
6720 LR006000
TUBE
Stage IV + DPF Emissions / From: 7A000001 		$216.16 1
6720 LR005999
TUBE
Euro Consolidated Directive 3 / From: 7A000001 		$200.19 1
6759 LR006392
TUBE
Stage IV + DPF Emissions / From: 7A000001 		$34.60 1
6788 1336520
BRACKET 		$13.12 1
