Name: Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)
Rating: 4.1 (1 reviews)

Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

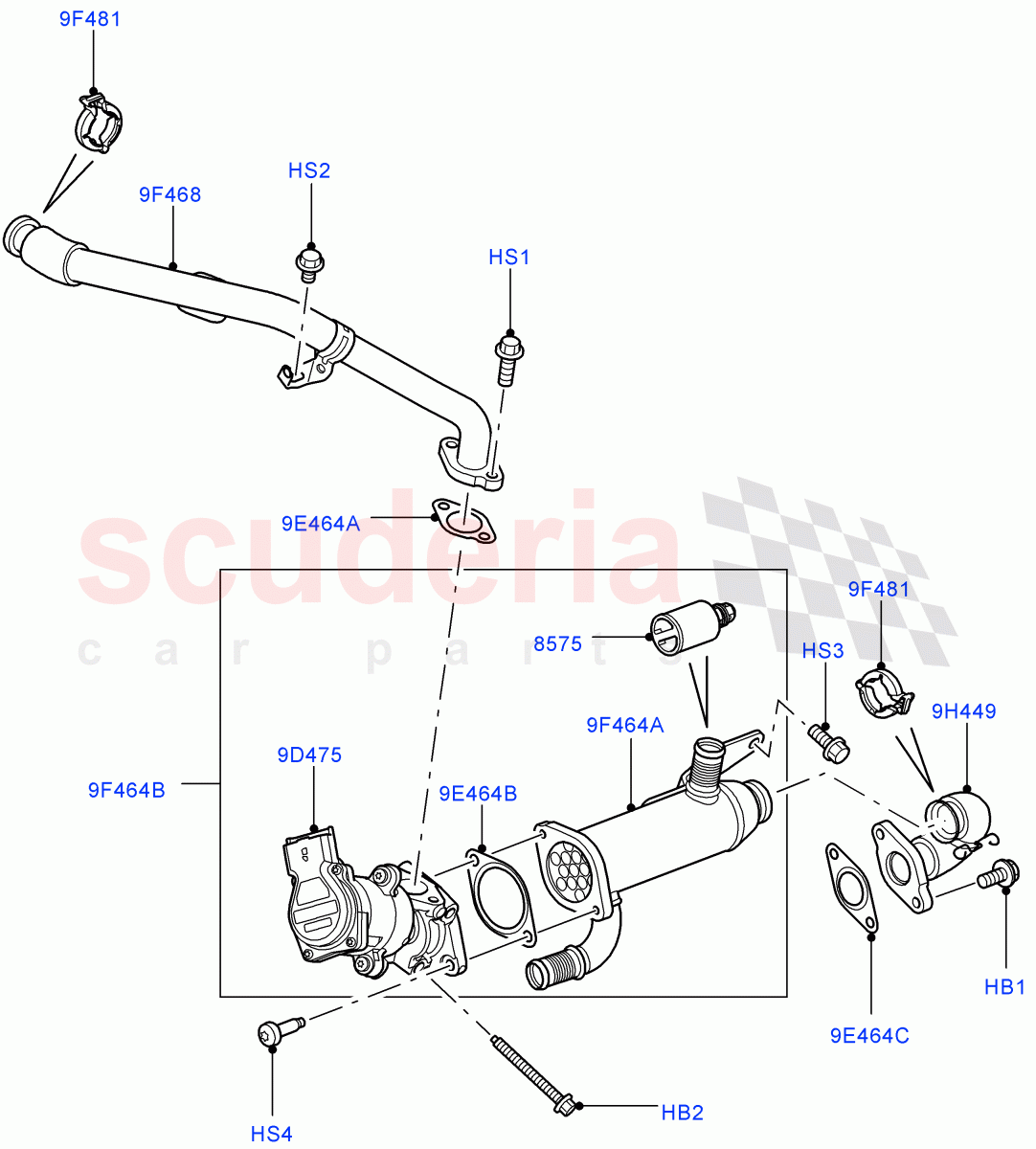

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1316028	BOLT	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	1325879	BOLT	$0.48	To Order

Photo	Part No	Description	Price (each)	Stock
	6729404	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	1148055	SCREW	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	6726224	SCREW	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	4126933	SCREW	$1.64	To Order

Photo	Part No	Description	Price (each)	Stock
	1418970	THERMOSTAT - EGR	$16.29	To Order
	LR006115	THERMOSTAT - EGR	$21.53	To Order

Photo	Part No	Description	Price (each)	Stock
	1316149	VALVE - EXHAUST GAS RECIRCULATION	$363.90	To Order
	WAV500210	VALVE - EXHAUST GAS RECIRCULATION	$385.28	To Order
	LR010125	VALVE - EXHAUST GAS RECIRCULATION	$338.70	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1338650	TUBE - EGR VALVE TO INLET MANIFOLD	$81.29	To Order
	1316131	TUBE - EGR VALVE TO INLET MANIFOLD	$77.60	To Order
	LR066841	TUBE - EXHAUST GAS RECIRCULATION	$376.26	To Order

Photo	Part No	Description	Price (each)	Stock
	1311338	CLAMP - TUBE	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	1348612	TUBE - EGR VALVE TO EXHAUST MANIFLD	$54.01	To Order
	1348624	TUBE - EGR VALVE TO EXHAUST MANIFLD	$64.20	To Order
	LR066840	TUBE - EGR VALVE TO EXHAUST MANIFLD	$251.18	To Order

Photo	Part No	Description	Price (each)	Stock
	1331267	GASKET	$10.93	To Order

Photo	Part No	Description	Price (each)	Stock
	1336561	GASKET	$11.16	To Order
	LR004532	GASKET	$13.56	To Order

Photo	Part No	Description	Price (each)	Stock
	1331270	GASKET	$10.90	To Order

Photo	Part No	Description	Price (each)	Stock
	1336562	COOLER - EGR	$403.72	To Order
	1336563	COOLER - EGR	$403.67	To Order
	LR004535	COOLER - EGR	$509.55	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR004539	COOLER - EGR	$809.61	To Order
	LR004538	COOLER - EGR	$809.61	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1316028	BOLT	1316028 BOLT M6 X 16MM	$1.30	4
HB2	1325879	BOLT	1325879 BOLT M6 x 60MM	$0.48	6
HS1	6729404	SCREW	6729404 SCREW M6 X 20MM	$0.76	4
HS2	1148055	SCREW	1148055 SCREW M6 x 12MM	$0.41	2
HS3	6726224	SCREW	6726224 SCREW M6 X 16MM	$0.64	2
HS4	4126933	SCREW	4126933 SCREW M6 X 16MM	$1.64	4
9D475	1316149	VALVE - EXHAUST GAS RECIRCULATION	1316149 VALVE - EXHAUST GAS RECIRCULATION EU2 / RH / To: 6A999999	$363.90	1
9D475	WAV500210	VALVE - EXHAUST GAS RECIRCULATION	WAV500210 VALVE - EXHAUST GAS RECIRCULATION EU2 / LH / To: 6A999999	$385.28	1
9D475	LR010125	VALVE - EXHAUST GAS RECIRCULATION	LR010125 VALVE - EXHAUST GAS RECIRCULATION Euro Consolidated Directive 3 / RH / From: 7A000001 / To: 9A209066	$338.70	1
9D475	LR010124	VALVE - EXHAUST GAS RECIRCULATION	LR010124 VALVE - EXHAUST GAS RECIRCULATION Euro Consolidated Directive 3 / LH / From: 7A000001 / To: 9A209066	$338.70	1
9D475	LR009809	VALVE - EXHAUST GAS RECIRCULATION	LR009809 VALVE - EXHAUST GAS RECIRCULATION Stage IV + DPF Emissions / LH / From: 7A000001	$297.88	1
9D475	LR009810	VALVE - EXHAUST GAS RECIRCULATION	LR009810 VALVE - EXHAUST GAS RECIRCULATION Stage IV + DPF Emissions / RH / From: 7A000001	$297.88	1
9D475	LR018465	VALVE - EXHAUST GAS RECIRCULATION	LR018465 VALVE - EXHAUST GAS RECIRCULATION Euro Consolidated Directive 3 / LH / From: 9A209067	$437.43	1
9D475	LR018466	VALVE - EXHAUST GAS RECIRCULATION	LR018466 VALVE - EXHAUST GAS RECIRCULATION Euro Consolidated Directive 3 / RH / From: 9A209067	$437.43	1
9E464A	1331267	GASKET	1331267 GASKET Outlet	$10.93	2
9E464B	1336561	GASKET	1336561 GASKET EU2 / Inlet	$11.16	2
9E464B	LR004532	GASKET	LR004532 GASKET Stage IV + DPF Emissions / Inlet / From: 7A000001	$13.56	2
9E464C	1331270	GASKET	1331270 GASKET	$10.90	2
9F464A	1336562	COOLER - EGR	1336562 COOLER - EGR EU2 / LH / To: 9A209066	$403.72	1
9F464A	1336563	COOLER - EGR	1336563 COOLER - EGR EU2 / RH / To: 9A209066	$403.67	1
9F464A	LR004535	COOLER - EGR	LR004535 COOLER - EGR Stage IV + DPF Emissions / LH / From: 7A000001	$509.55	1
9F464A	LR004536	COOLER - EGR	LR004536 COOLER - EGR Stage IV + DPF Emissions / RH / From: 7A000001	$509.55	1
9F464A	LR014412	COOLER - EGR	LR014412 COOLER - EGR Euro Consolidated Directive 3 / LH / From: 9A209067	$407.75	1
9F464A	LR014413	COOLER - EGR	LR014413 COOLER - EGR Euro Consolidated Directive 3 / RH / From: 9A209067	$407.75	1
9F464B	LR004539	COOLER - EGR	LR004539 COOLER - EGR Stage IV + DPF Emissions / RH / From: 7A000001	$809.61	1
9F464B	LR004538	COOLER - EGR	LR004538 COOLER - EGR Stage IV + DPF Emissions / LH / From: 7A000001	$809.61	1
9F468	1338650	TUBE - EGR VALVE TO INLET MANIFOLD	1338650 TUBE - EGR VALVE TO INLET MANIFOLD LH	$81.29	1
9F468	1316131	TUBE - EGR VALVE TO INLET MANIFOLD	1316131 TUBE - EGR VALVE TO INLET MANIFOLD RH / To: 8A999999	$77.60	1
9F468	LR066841	TUBE - EXHAUST GAS RECIRCULATION	LR066841 TUBE - EXHAUST GAS RECIRCULATION RH / From: 9A000001	$376.26	1
9F481	1311338	CLAMP - TUBE	1311338 CLAMP - TUBE EGR Tube	$3.84	2
9H449	1348612	TUBE - EGR VALVE TO EXHAUST MANIFLD	1348612 TUBE - EGR VALVE TO EXHAUST MANIFLD LH / To: 9A666672	$54.01	1
9H449	1348624	TUBE - EGR VALVE TO EXHAUST MANIFLD	1348624 TUBE - EGR VALVE TO EXHAUST MANIFLD RH	$64.20	1
9H449	LR066840	TUBE - EGR VALVE TO EXHAUST MANIFLD	LR066840 TUBE - EGR VALVE TO EXHAUST MANIFLD LH / From: 9A666673	$251.18	1
8575	1418970	THERMOSTAT - EGR	1418970 THERMOSTAT - EGR Euro Stage 4 Emissions / From: 7A000001 / To: 7A989639	$16.29	1
8575	LR006115	THERMOSTAT - EGR	LR006115 THERMOSTAT - EGR Euro Stage 4 Emissions / From: 7A989640	$21.53	1

Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)
