Front Brake Discs And Calipers (Itatiaia (Brazil), Disc Brake Size Frt 17/Rr 16, Front Disc And...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Front Brake Discs And Calipers (Itatiaia (Brazil), Disc Brake Size Frt 17/RR 16, Front Disc And...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR090697 BOLT $3.55 To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR139520 BOLT $1.72 To Order
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR115005 DISC - BRAKE - VENTED $177.30 To Order
Photo Part No Description Price (each) Stock
LR118006 BRAKE PADS - LESS SPRINGS $179.95 To Order
Photo Part No Description Price (each) Stock
LR061377 SCREW - BLEED $13.51 To Order
Photo Part No Description Price (each) Stock
LR090821 GREASE - CHASSIS LUBRICATION $8.34 To Order
Photo Part No Description Price (each) Stock
LR147024 CALIPER - BRAKE - LESS PADS $499.17 To Order
LR147025 CALIPER - BRAKE - LESS PADS $499.17 To Order
Photo Part No Description Price (each) Stock
LR061366 BRACKET - BRAKE CALIPER $88.35 To Order
Photo Part No Description Price (each) Stock
LR061374 SPRING - BRAKE CALIPER $11.70 IN STOCK
Photo Part No Description Price (each) Stock
LR118813 SHIELD - BRAKE DISC SPLASH $63.95 To Order
LR118814 SHIELD - BRAKE DISC SPLASH $63.95 To Order
Photo Part No Description Price (each) Stock
LR027312 CAP - BLEED SCREW $1.32 IN STOCK
Photo Part No Description Price (each) Stock
LR061375 KIT - RETAINING PIN $26.38 IN STOCK
Photo Part No Description Price (each) Stock
LR061376 KIT - BUSH $29.23 To Order
Photo Part No Description Price (each) Stock
LR115019 WIRE - BRAKE PAD WEAR WARNING $40.26 To Order
Photo Part No Description Price (each) Stock
LR118035 BRACKET - WIRING $25.94 To Order
Photo Part No Description Price (each) Stock
LR115016 BRACKET - WIRING $26.62 To Order
View All

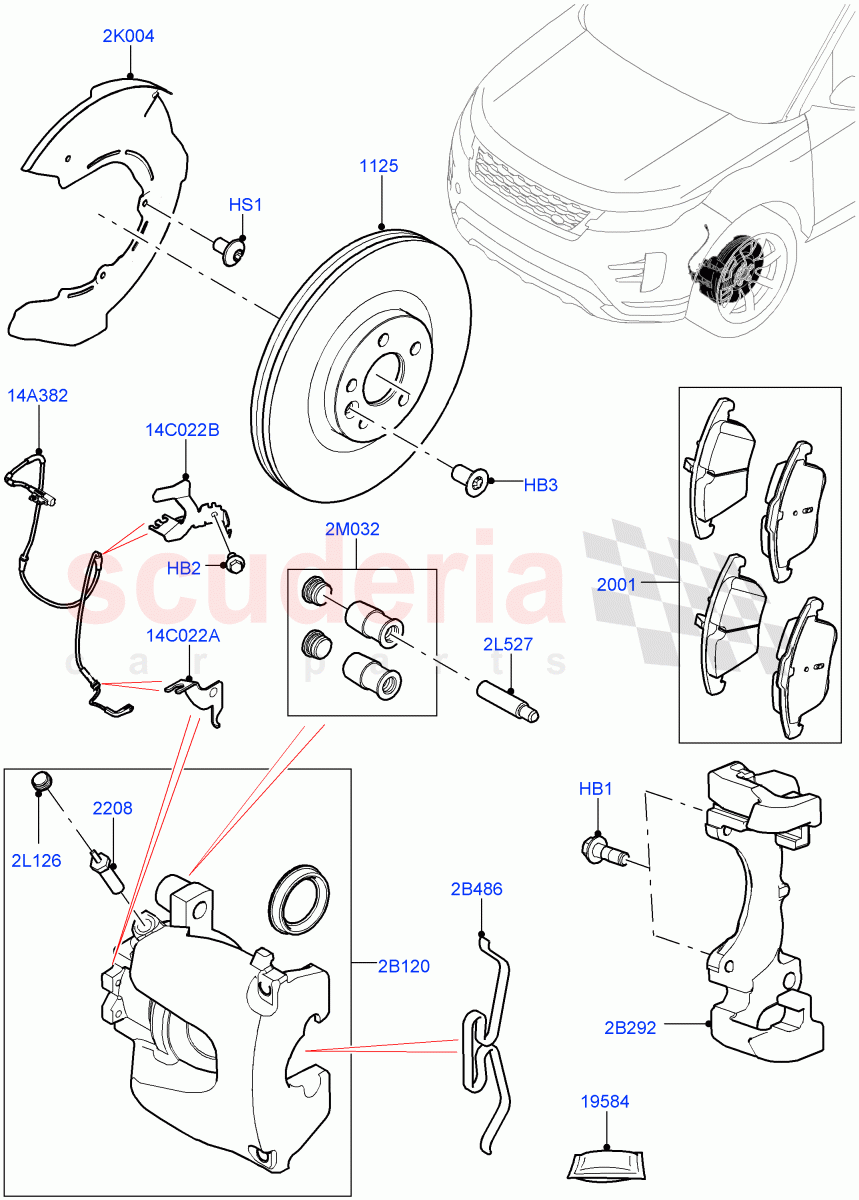

Front Brake Discs And Calipers (Itatiaia (Brazil), Disc Brake Size Frt 17/RR 16, Front Disc And Caliper Size 17) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR090697
BOLT
Hexagonal Head, M14 X 43mm 		$3.55 4
HB2 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.68 2
HB3 LR139520
BOLT
M8 X 12, Torx 		$1.72 2
HS1 LR018509
SCREW
M6 X 10MM, Torx
IN STOCK 		$1.24 6
2B120 LR147024
CALIPER - BRAKE - LESS PADS
RH, For 17" Brakes 		$499.17 1
2B120 LR147025
CALIPER - BRAKE - LESS PADS
LH, For 17" Brakes 		$499.17 1
2B292 LR061366
BRACKET - BRAKE CALIPER
For 17" Brakes, RH/LH, To Caliper 		$88.35 2
2B486 LR061374
SPRING - BRAKE CALIPER
For 17" Brakes
IN STOCK 		$11.70 2
2K004 LR118813
SHIELD - BRAKE DISC SPLASH
RH 		$63.95 1
2K004 LR118814
SHIELD - BRAKE DISC SPLASH
LH 		$63.95 1
2L126 LR027312
CAP - BLEED SCREW
IN STOCK 		$1.32 2
2L527 LR061375
KIT - RETAINING PIN
Pin - Slide
IN STOCK 		$26.38 4
2M032 LR061376
KIT - BUSH
Includes 2 Slide Pin Bushes And 2 Caps 		$29.23 2
14A382 LR115019
WIRE - BRAKE PAD WEAR WARNING 		$40.26 1
14C022A LR118035
BRACKET - WIRING
Mounted To Caliper 		$25.94 1
14C022B LR115016
BRACKET - WIRING
RH, Front, Mounted To Damper 		$26.62 1
1125 LR115005
DISC - BRAKE - VENTED
325MM, For 17" Brakes, RH/LH 		$177.30 2
2001 LR118006
BRAKE PADS - LESS SPRINGS
Axle Set, For 17" Brakes, Less Clips 		$179.95 1
2208 LR061377
SCREW - BLEED
With Cap 		$13.51 2
19584 LR090821
GREASE - CHASSIS LUBRICATION 		$8.34 1
