Name: Brake And Clutch Controls (8 Speed Automatic Trans 8G30, Halewood (UK)) ((V) FROMLH000001)
Rating: 5.0 (1 reviews)

View All

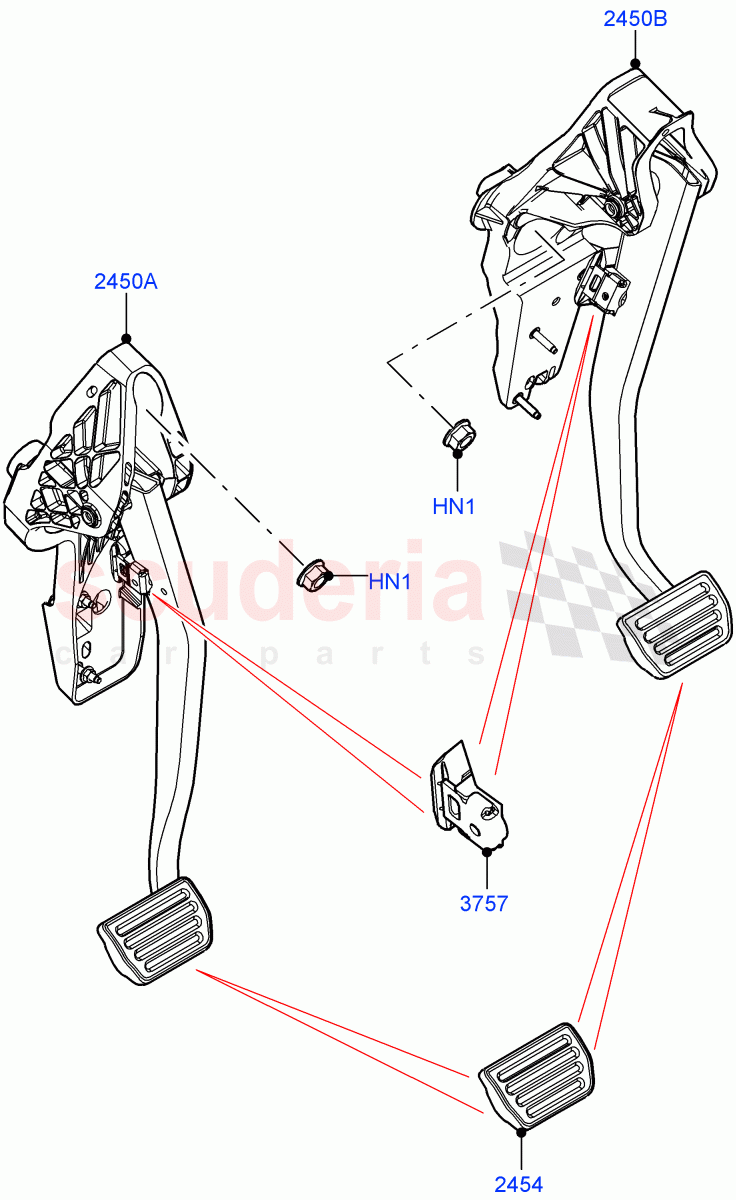

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR005345	NUT	LR005345 NUT Hexagonal Head, M8 / From: LH000001 / To: LH999999	$0.44	3
HN1	LR140056	NUT	LR140056 NUT Hexagonal Head, M8 / From: MH000001	$1.35	3
2450A	LR135567	PEDAL AND BRACKET	LR135567 PEDAL AND BRACKET LHD / From: LH000001 / To: MH149400	$292.96	1
2450A	LR153942	PEDAL AND BRACKET	LR153942 PEDAL AND BRACKET LHD / From: MH149401	$305.26	1
2450B	LR135568	PEDAL AND BRACKET	LR135568 PEDAL AND BRACKET RHD / From: LH000001 / To: MH153607	$285.98	1
2450B	LR153943	PEDAL AND BRACKET	LR153943 PEDAL AND BRACKET RHD / From: MH153608	$268.90	1
2454	LR138279	PAD - PEDAL	LR138279 PAD - PEDAL Unique Met Finish Foot Pedals Pads / Brake Pedal / From: LH000001	$55.93	1
2454	LR138093	PAD - PEDAL	LR138093 PAD - PEDAL Standard Foot Pedal Pad Design / Brake Pedal / From: LH000001 / To: LH999999	$56.50	1
2454	LR147383	PAD - PEDAL	LR147383 PAD - PEDAL Standard Foot Pedal Pad Design / Brake Pedal / From: MH000001	$55.93	1
3757	LR137635	CLIP	LR137635 CLIP Brake Pedal / From: LH000001 / To: LH999999	$7.13	1
3757	LR147284	CLIP IN STOCK	LR147284 CLIP Brake Pedal / From: MH000001 IN STOCK	$6.69	1

Brake And Clutch Controls (8 Speed Automatic Trans 8G30, Halewood (Uk)) ((V) Fromlh000001)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]
