Name: Front Brake Pipes (RHD, Halewood (UK), Electric Engine Battery-MHEV, Less Electric Engine Battery) ((V) TOLH999999)
Rating: 5.0 (1 reviews)

Front Brake Pipes (RHD, Halewood (UK), Electric Engine Battery-MHEV, Less Electric Engine Battery) ((V) TOLH999999) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Front Brake Pipes (RHD, Halewood (UK), Electric Engine Battery-MHEV, Less Electric Engine Battery)...

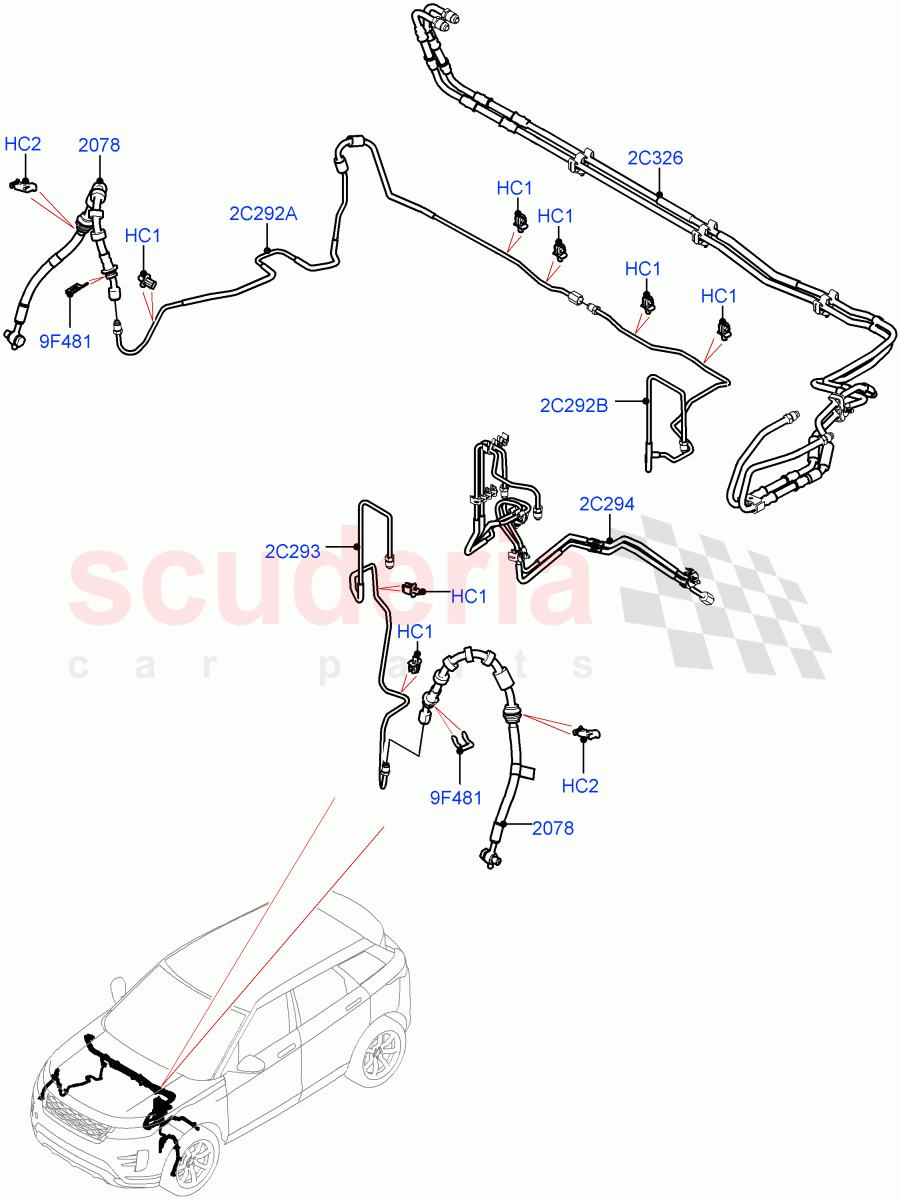

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR113126	CLIP - BRAKE PIPE	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114825	CLIP - SPECIAL	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133935	HOSE - BRAKE	$58.67	To Order
	LR133936	HOSE - BRAKE	$58.67	To Order
	LR133934	HOSE - BRAKE	$58.67	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR114814	KIT - BRAKE TUBES	$43.77	To Order
	LR146410	KIT - BRAKE TUBES	$43.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114649	PIPE - BRAKE	$52.21	To Order
	LR136577	PIPE - BRAKE	$53.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114816	TUBE - BRAKE - NYLON	$60.87	To Order
	LR132385	TUBE - BRAKE - NYLON	$62.30	To Order
	LR136579	TUBE - BRAKE - NYLON	$72.17	To Order

Photo	Part No	Description	Price (each)	Stock
	EJP7813	CLIP - HOSE	$2.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR114054	TUBE - BRAKE	$51.45	To Order
	LR135960	TUBE - BRAKE	$48.78	To Order
	LR137405	TUBE - BRAKE	$49.97	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR114813	TUBE - BRAKE	$53.79	To Order
	LR143162	TUBE - BRAKE	$53.19	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR113126	CLIP - BRAKE PIPE	LR113126 CLIP - BRAKE PIPE 4.75X8X0.8-4, Single	$0.61	7
HC2	LR114825	CLIP - SPECIAL	LR114825 CLIP - SPECIAL Brake Hose	$1.29	2
2C292A	LR114054	TUBE - BRAKE	LR114054 TUBE - BRAKE RH, ABS Modulator To Caliper Hose / To: LH049501	$51.45	1
2C292A	LR135960	TUBE - BRAKE	LR135960 TUBE - BRAKE RH, ABS Modulator To Caliper Hose / From: LH049502 / To: LH057430	$48.78	1
2C292A	LR137405	TUBE - BRAKE	LR137405 TUBE - BRAKE RH, ABS Modulator To Caliper Hose / From: LH057431 / To: LH118663	$49.97	1
2C292A	LR146407	TUBE - BRAKE	LR146407 TUBE - BRAKE RH, ABS Modulator To Caliper Hose / From: LH118664	$52.13	1
2C292B	LR114813	TUBE - BRAKE	LR114813 TUBE - BRAKE ABS Modulator To Caliper Hose, Modulator To RH Front / To: LH115908	$53.79	1
2C292B	LR143162	TUBE - BRAKE	LR143162 TUBE - BRAKE ABS Modulator To Caliper Hose, Modulator To RH Front / From: LH115909	$53.19	1
2C293	LR114814	KIT - BRAKE TUBES	LR114814 KIT - BRAKE TUBES ABS Modulator To Caliper Hose, Modulator To LH Front / To: LH118663	$43.77	1
2C293	LR146410	KIT - BRAKE TUBES	LR146410 KIT - BRAKE TUBES ABS Modulator To Caliper Hose, Modulator To LH Front / From: LH118664	$43.32	1
2C294	LR114649	PIPE - BRAKE	LR114649 PIPE - BRAKE Modulator To Rear Brake Pipe / To: LH066255	$52.21	1
2C294	LR136577	PIPE - BRAKE	LR136577 PIPE - BRAKE Modulator To Rear Brake Pipe / From: LH066256	$53.74	1
2C326	LR114816	TUBE - BRAKE - NYLON	LR114816 TUBE - BRAKE - NYLON Modulator To Brake Master Cylinder / To: LH026936	$60.87	1
2C326	LR132385	TUBE - BRAKE - NYLON	LR132385 TUBE - BRAKE - NYLON Modulator To Brake Master Cylinder / From: LH026937 / To: LH066256	$62.30	1
2C326	LR136579	TUBE - BRAKE - NYLON	LR136579 TUBE - BRAKE - NYLON Modulator To Brake Master Cylinder / From: LH066257	$72.17	1
9F481	EJP7813	CLIP - HOSE IN STOCK	EJP7813 CLIP - HOSE Brake Hose, Retainer IN STOCK	$2.48	2
2078	LR133935	HOSE - BRAKE	LR133935 HOSE - BRAKE Front Disc And Caliper Size 17 / LH, Flexible, To Caliper / From: LH017677	$58.67	1
2078	LR133936	HOSE - BRAKE	LR133936 HOSE - BRAKE Disc And Caliper Size-Frt 18/RR 16 / LH, Flexible, To Caliper / From: LH031704	$58.67	1
2078	LR133934	HOSE - BRAKE	LR133934 HOSE - BRAKE Front Disc And Caliper Size 17 / RH, Flexible, To Caliper / From: LH017677	$58.67	1
2078	LR124820	HOSE - BRAKE	LR124820 HOSE - BRAKE Front Disc And Caliper Size 17 / RH, Flexible, To Caliper / To: LH017676	$60.52	1
2078	LR124823	HOSE - BRAKE	LR124823 HOSE - BRAKE Front Disc And Caliper Size 17 / LH, Flexible, To Caliper / To: LH017676	$60.52	1
2078	LR124824	HOSE - BRAKE	LR124824 HOSE - BRAKE Disc And Caliper Size-Frt 18/RR 16 / LH, Flexible, To Caliper / To: LH031703	$60.52	1
2078	LR124822	HOSE - BRAKE	LR124822 HOSE - BRAKE Disc And Caliper Size-Frt 18/RR 16 / RH, Flexible, To Caliper / To: KH999999	$99.56	1
2078	LR133933	HOSE - BRAKE	LR133933 HOSE - BRAKE Disc And Caliper Size-Frt 18/RR 17 / RH, Flexible, To Caliper / From: LH000001	$57.02	1
