Side Trim (Luggage Compartment) (Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Side Trim (Luggage Compartment) (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD $1.51 To Order
Photo Part No Description Price (each) Stock
LR031782 CLIP - TRIM $1.64 To Order
Photo Part No Description Price (each) Stock
LR036129 CLIP - TRIM $0.97 To Order
Photo Part No Description Price (each) Stock
LR006101 CLIP - TRIM $2.28 IN STOCK
Photo Part No Description Price (each) Stock
LR161214 CAP - BLANKING $1.77 To Order
Photo Part No Description Price (each) Stock
LR063976 SCREW $2.93 To Order
Photo Part No Description Price (each) Stock
LR005896 RETAINER - RIVET $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR034050 LAMP - INTERIOR $41.96 To Order
Photo Part No Description Price (each) Stock
LR138310 STRAP - RETENSION $49.07 To Order
Photo Part No Description Price (each) Stock
LR114739 POCKET - LOAD COMPARTMENT $26.63 To Order
Photo Part No Description Price (each) Stock
LR081968 HOOK - LOADING COMPARTMENT $11.46 To Order
Photo Part No Description Price (each) Stock
LR114737 CAP - PILLAR TRIM AIR BAG $21.07 To Order
LR114738 CAP - PILLAR TRIM AIR BAG $23.87 To Order
Photo Part No Description Price (each) Stock
LR114740 PANEL - BODY SIDE REAR - INNER $101.29 To Order
LR114741 PANEL - BODY SIDE REAR - INNER $107.42 To Order
LR133159 PANEL - BODY SIDE REAR - INNER $103.64 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114742 PANEL - BODY SIDE REAR - INNER $103.64 To Order
LR114743 PANEL - PACKAGE TRAY $107.42 To Order
LR133160 PANEL - BODY SIDE REAR - INNER $103.64 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114744 COVER - SEAT BELT MOUNTING $10.64 To Order
LR114745 COVER - SEAT BELT MOUNTING $10.64 To Order
Photo Part No Description Price (each) Stock
LR114680 TRIM - LOAD COMPARTMENT - SIDE $428.32 To Order
LR114681 TRIM - LOAD COMPARTMENT - SIDE $406.01 To Order
LR125880 TRIM - LOAD COMPARTMENT - SIDE $403.81 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114682 TRIM - LOAD COMPARTMENT - SIDE $428.32 To Order
LR114683 TRIM - LOAD COMPARTMENT - SIDE $428.32 To Order
LR125882 TRIM - LOAD COMPARTMENT - SIDE $428.32 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114735 BEZEL - LUGGAGE COMPARTMENT SWITCH $88.03 To Order
LR127429 BEZEL - LUGGAGE COMPARTMENT SWITCH $15.77 IN STOCK
LR127429 BEZEL - LUGGAGE COMPARTMENT SWITCH $15.77 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114736 BEZEL - LUGGAGE COMPARTMENT SWITCH $88.03 To Order
LR127428 BEZEL - LUGGAGE COMPARTMENT SWITCH $15.77 To Order
Photo Part No Description Price (each) Stock
LR114733 SUPPORT - LOAD COMPARTMENT PANELS $119.71 To Order
Photo Part No Description Price (each) Stock
LR114734 SUPPORT - LOAD COMPARTMENT PANELS $111.84 To Order
View All

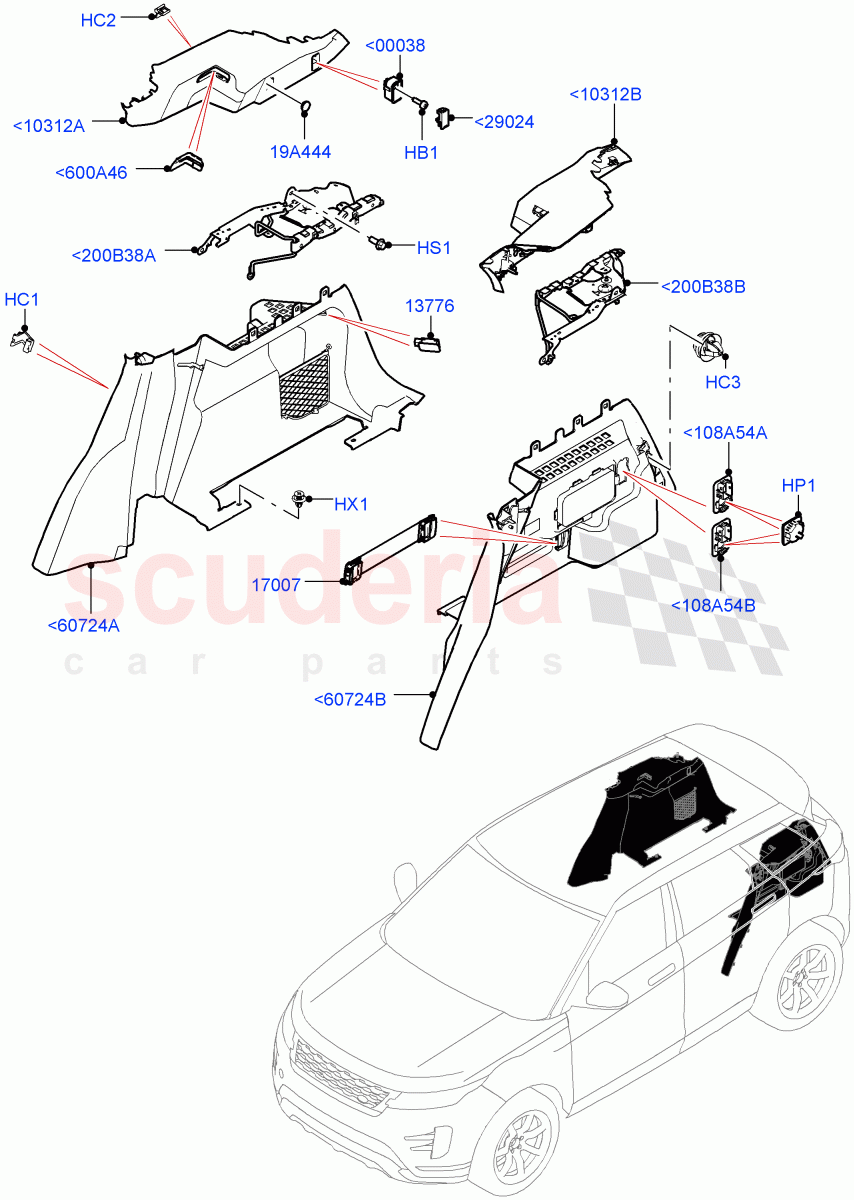

Side Trim (Luggage Compartment) (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<108A54A LR114735
BEZEL - LUGGAGE COMPARTMENT SWITCH
Less Trailer Towing Hitch / To: LH012707 		$88.03 1
<108A54A LR127429
BEZEL - LUGGAGE COMPARTMENT SWITCH
Less Trailer Towing Hitch / From: LH012708
IN STOCK 		$15.77 1
<108A54A LR127429
BEZEL - LUGGAGE COMPARTMENT SWITCH
Towing prep/Bike Carrier Euro / From: MH000001
IN STOCK 		$15.77 1
<108A54A LR127429
BEZEL - LUGGAGE COMPARTMENT SWITCH
Tow Hitch Receiver NAS / From: LH012708 / To: LH999999
IN STOCK 		$15.77 1
<108A54B LR114736
BEZEL - LUGGAGE COMPARTMENT SWITCH
Tow Hitch Elec Deployable Swan Neck / To: LH032370 		$88.03 1
<108A54B LR127428
BEZEL - LUGGAGE COMPARTMENT SWITCH
Tow Hitch Elec Deployable Swan Neck / From: LH032371 		$15.77 1
<200B38A LR114733
SUPPORT - LOAD COMPARTMENT PANELS
RH 		$119.71 1
<200B38B LR114734
SUPPORT - LOAD COMPARTMENT PANELS
LH 		$111.84 1
<600A46 LR114744
COVER - SEAT BELT MOUNTING
RH 		$10.64 1
<600A46 LR114745
COVER - SEAT BELT MOUNTING
LH 		$10.64 1
<00038 LR114739
POCKET - LOAD COMPARTMENT
RH/LH 		$26.63 2
<10312A LR114740
PANEL - BODY SIDE REAR - INNER
Standard Audio (Base) / RH / To: LH007660 		$101.29 1
<10312A LR114741
PANEL - BODY SIDE REAR - INNER
Premium Audio 1280 W / RH / To: LH007660 		$107.42 1
<10312A LR133159
PANEL - BODY SIDE REAR - INNER
Hi Line Audio System - 600 W / RH / From: LH007661 		$103.64 1
<10312A LR133158
PANEL - BODY SIDE REAR - INNER
Premium Audio 1280 W / RH / From: LH007661 		$100.32 1
<10312B LR114742
PANEL - BODY SIDE REAR - INNER
Standard Audio (Base) / LH / To: LH007660 		$103.64 1
<10312B LR114743
PANEL - PACKAGE TRAY
Premium Audio 1280 W / LH / To: LH007660 		$107.42 1
<10312B LR133160
PANEL - BODY SIDE REAR - INNER
Standard Audio (Base) / LH / From: LH007661 		$103.64 1
<10312B LR133161
PANEL - BODY SIDE REAR - INNER
Premium Audio 1280 W / LH / From: LH007661 		$103.64 1
<29024 LR081968
HOOK - LOADING COMPARTMENT
RH/LH 		$11.46 2
<60724A LR114680
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery, Less Load Retainer Luggage / RH / To: LH000699 		$428.32 1
<60724A LR114681
TRIM - LOAD COMPARTMENT - SIDE
Electric Engine Battery-MHEV, Load Retainer Luggage Rails / RH / To: LH000699 		$406.01 1
<60724A LR125880
TRIM - LOAD COMPARTMENT - SIDE
Electric Engine Battery-MHEV, Less Load Retainer Luggage / RH / From: LH000700 / To: LH023022 		$403.81 1
<60724A LR125881
TRIM - LOAD COMPARTMENT - SIDE
Electric Engine Battery-MHEV, Load Retainer Luggage Rails / RH / From: LH000700 / To: LH023022 		$428.32 1
<60724A LR135124
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery, Less Load Retainer Luggage / RH / From: LH023023 / To: LH072002 		$413.03 1
<60724A LR135123
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery, Load Retainer Luggage Rails / RH / From: LH023023 / To: LH072002 		$376.97 1
<60724A LR139392
TRIM - LOAD COMPARTMENT - SIDE
Less Load Retainer Luggage / RH / From: LH072003 / To: LH083644 		$433.43 1
<60724A LR139394
TRIM - LOAD COMPARTMENT - SIDE
Load Retainer Luggage Rails / RH / From: LH072003 / To: LH090124 		$433.43 1
<60724A LR140604
TRIM - LOAD COMPARTMENT - SIDE
Less Load Retainer Luggage / RH / From: LH083645 / To: MH999999 		$428.32 1
<60724A LR140603
TRIM - LOAD COMPARTMENT - SIDE
Load Retainer Luggage Rails / RH / From: LH090125 / To: MH999999 		$428.32 1
<60724A LR140604
TRIM - LOAD COMPARTMENT - SIDE
RH / From: NH000001 		$428.32 1
<60724B LR114682
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery, Less Load Retainer Luggage / LH / To: LH000699 		$428.32 1
<60724B LR114683
TRIM - LOAD COMPARTMENT - SIDE
Electric Engine Battery-MHEV, Load Retainer Luggage Rails / LH / To: LH000699 		$428.32 1
<60724B LR125882
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery, Less Load Retainer Luggage / LH / From: LH000700 / To: LH023022 		$428.32 1
<60724B LR125883
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery, Load Retainer Luggage Rails / LH / From: LH000700 / To: LH023022 		$428.32 1
<60724B LR135125
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery, Less Load Retainer Luggage / LH / From: LH023023 / To: LH072002 		$413.03 1
<60724B LR135126
TRIM - LOAD COMPARTMENT - SIDE
Electric Engine Battery-MHEV, Load Retainer Luggage Rails / LH / From: LH023023 / To: LH072002 		$359.84 1
<60724B LR139395
TRIM - LOAD COMPARTMENT - SIDE
Load Retainer Luggage Rails / LH / From: LH072003 / To: LH090124 		$433.43 1
<60724B LR139393
TRIM - LOAD COMPARTMENT - SIDE
Less Load Retainer Luggage / LH / From: LH072003 / To: LH083644 		$433.43 1
<60724B LR140605
TRIM - LOAD COMPARTMENT - SIDE
Less Load Retainer Luggage / LH / From: LH083645 / To: MH999999 		$402.92 1
<60724B LR140606
TRIM - LOAD COMPARTMENT - SIDE
Load Retainer Luggage Rails / LH / From: LH090125 / To: MH999999 		$428.32 1
<60724B LR140605
TRIM - LOAD COMPARTMENT - SIDE
LH / From: NH000001 		$402.92 1
HB1 LR033002
BOLT AND WASHER - TORX HEAD
M6 X 20.5, Torx 		$1.51 4
HC1 LR031782
CLIP - TRIM
0.8-1.4 		$1.64 10
HC2 LR036129
CLIP - TRIM
Clip 0.8 + 18.4 X 4.5 X 1.25 Push In Steel 		$0.97 2
HC3 LR006101
CLIP - TRIM
8.2 X 0.7-1.5, RH/LH / From: LH000001
IN STOCK 		$2.28 4
HP1 LR161214
CAP - BLANKING
Power Base / From: PH000001 		$1.77 1
HS1 LR063976
SCREW
M10 X 25MM 		$2.93 8
HX1 LR005896
RETAINER - RIVET
10 X 4 - 5
IN STOCK 		$1.47 10
19A444 LR114737
CAP - PILLAR TRIM AIR BAG
Light Oyster Headliner / RH/LH 		$21.07 2
19A444 LR114738
CAP - PILLAR TRIM AIR BAG
Ebony Headliner / RH/LH 		$23.87 2
13776 LR034050
LAMP - INTERIOR
RH/LH 		$41.96 2
17007 LR138310
STRAP - RETENSION
LH / From: LH000001 		$49.07 1
