Headlining And Sun Visors (Less Panorama Roof, Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Headlining And Sun Visors (Less Panorama Roof, Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.91 IN STOCK
Photo Part No Description Price (each) Stock
LR124693 BOLT AND WASHER - HEX.HEAD $1.75 To Order
Photo Part No Description Price (each) Stock
LR117868 CLIP - ROOF TRIM MOUNTING $16.17 To Order
Photo Part No Description Price (each) Stock
LR073582 CLIP - TRIM - PILLARS $1.86 To Order
Photo Part No Description Price (each) Stock
LR038293 CLIP - CENTRE CONSOLE $1.10 To Order
Photo Part No Description Price (each) Stock
LR122752 NUT $12.21 To Order
Photo Part No Description Price (each) Stock
LR003450 SCREW $0.52 IN STOCK
LR003450 SCREW $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR006211 SCREW $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR027710 SPACER - SUNVISOR $2.47 To Order
Photo Part No Description Price (each) Stock
LR091313 LAMP - INTERIOR $147.33 To Order
LR079061 LAMP - INTERIOR $153.71 To Order
Photo Part No Description Price (each) Stock
LR117531 CARGO BRACKET - HEADLINING $11.77 To Order
LR117532 CARGO BRACKET - HEADLINING $11.77 To Order
Photo Part No Description Price (each) Stock
LR091319 RETAINER - SUN VISOR $10.14 To Order
LR091320 RETAINER - SUN VISOR $4.68 To Order
Photo Part No Description Price (each) Stock
LR117805 HEADLINING - ROOF $1,249.15 To Order
LR117806 HEADLINING - ROOF $1,249.15 To Order
LR117809 HEADLINING - ROOF $1,056.98 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117814 CAP - PILLAR TRIM AIR BAG $7.10 To Order
LR117816 CAP - PILLAR TRIM AIR BAG $6.74 To Order
Photo Part No Description Price (each) Stock
LR117803 BRACKET - TRIM PANEL $26.07 To Order
LR117804 BRACKET - TRIM PANEL $29.53 To Order
Photo Part No Description Price (each) Stock
LR155522 BRACKET - HEADLINING SUPPORT $15.25 To Order
LR128373 BRACKET - HEADLINING SUPPORT $13.41 To Order
LR128373 BRACKET - HEADLINING SUPPORT $13.41 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR155520 BRACKET - HEADLINING SUPPORT $28.14 To Order
LR155519 BRACKET - HEADLINING SUPPORT $28.14 To Order
LR117529 BRACKET - HEADLINING SUPPORT $13.41 To Order
...and 3 more part variants. See table on right for more details.
View All

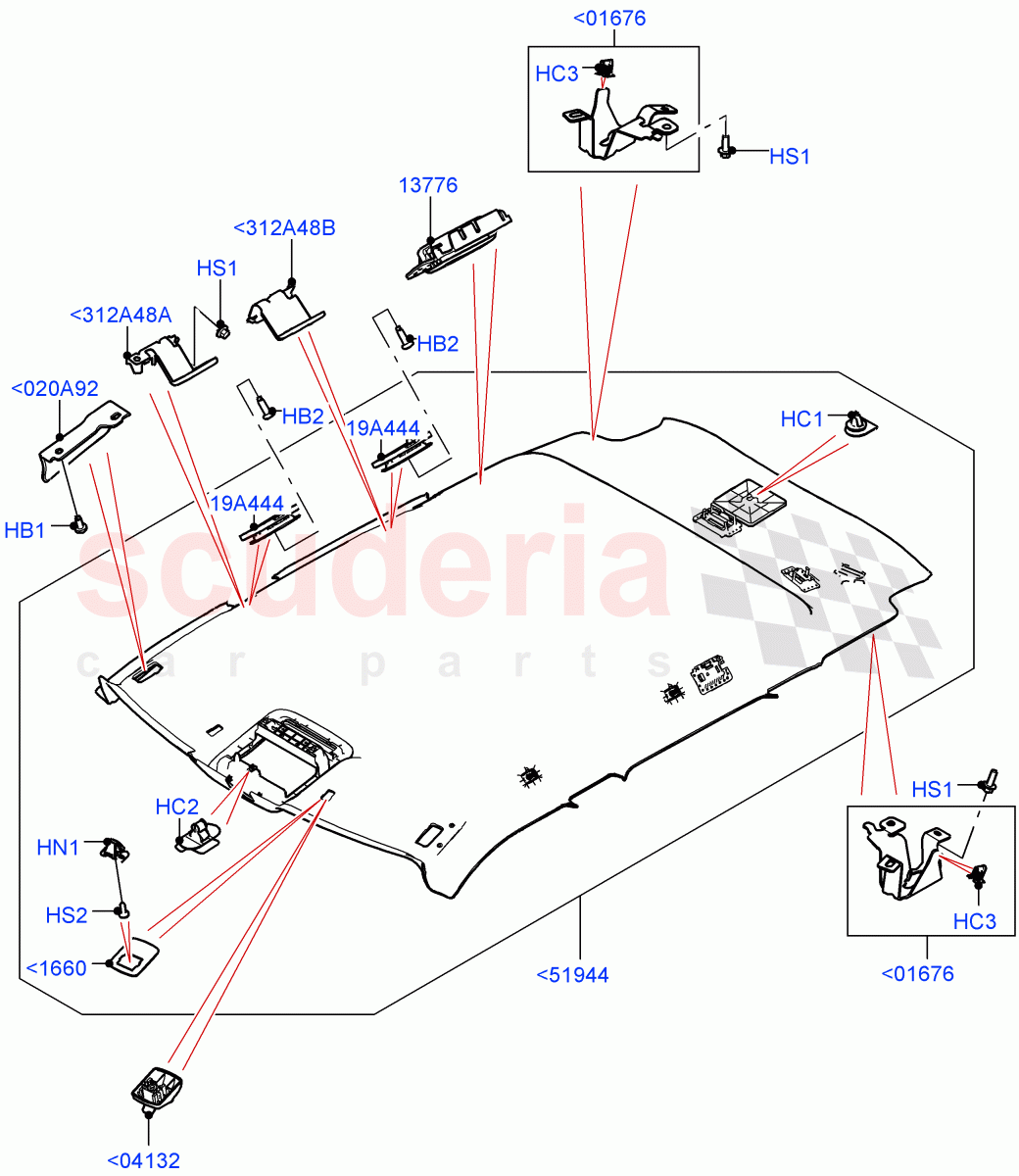

Headlining And Sun Visors (Less Panorama Roof, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<020A92 LR117803
BRACKET - TRIM PANEL
With Head Impact Crash Criteria / RH 		$26.07 1
<020A92 LR117804
BRACKET - TRIM PANEL
With Head Impact Crash Criteria / LH 		$29.53 1
<312A48A LR155522
BRACKET - HEADLINING SUPPORT
Long Wheelbase / RH, Front / From: MG575835 		$15.25 1
<312A48A LR128373
BRACKET - HEADLINING SUPPORT
RH, Front / To: MG575834 		$13.41 1
<312A48A LR128373
BRACKET - HEADLINING SUPPORT
Standard Wheelbase / RH, Front / From: MG575835 		$13.41 1
<312A48A LR128372
BRACKET - HEADLINING SUPPORT
LH, Front / To: MG575834 		$13.41 1
<312A48A LR128372
BRACKET - HEADLINING SUPPORT
Standard Wheelbase / LH, Front / From: MG575835 		$13.41 1
<312A48A LR155521
BRACKET - HEADLINING SUPPORT
Long Wheelbase / LH, Front / From: MG575835 		$15.25 1
<312A48B LR155520
BRACKET - HEADLINING SUPPORT
Long Wheelbase / RH, Front / From: MG575835 		$28.14 1
<312A48B LR155519
BRACKET - HEADLINING SUPPORT
Long Wheelbase / LH, Rear / From: MG575835 		$28.14 1
<312A48B LR117529
BRACKET - HEADLINING SUPPORT
RH, Rear / To: MG575834 		$13.41 1
<312A48B LR117529
BRACKET - HEADLINING SUPPORT
Standard Wheelbase / RH, Rear / From: MG575835 		$13.41 1
<312A48B LR117530
BRACKET - HEADLINING SUPPORT
LH, Rear / To: MG575834 		$13.41 1
<312A48B LR117530
BRACKET - HEADLINING SUPPORT
Standard Wheelbase / LH, Rear / From: MG575835 		$13.41 1
<1660 LR027710
SPACER - SUNVISOR
5 Door / RH/LH 		$2.47 2
<01676 LR117531
CARGO BRACKET - HEADLINING
With Luggage Net / RH 		$11.77 1
<01676 LR117532
CARGO BRACKET - HEADLINING
With Luggage Net / LH 		$11.77 1
<04132 LR091319
RETAINER - SUN VISOR
Light Oyster Headliner / RH/LH 		$10.14 2
<04132 LR091320
RETAINER - SUN VISOR
Ebony Headliner / RH/LH 		$4.68 2
<51944 LR117805
HEADLINING - ROOF
Interior Trim - Morzine, Light Oyster Headliner 		$1,249.15 1
<51944 LR117806
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Morzine 		$1,249.15 1
<51944 LR117809
HEADLINING - ROOF
Interior Trim - Alston, Light Oyster Headliner 		$1,056.98 1
<51944 LR117810
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Alston 		$1,056.98 1
HB1 XYG500160
BOLT
With Head Impact Crash Criteria / M6 x 12MM, Torx
IN STOCK 		$0.91 4
HB2 LR124693
BOLT AND WASHER - HEX.HEAD
Airbag Cap To Bracket, M6 X 18.5 		$1.75 4
HC1 LR117868
CLIP - ROOF TRIM MOUNTING
Center Rear, Headlining 		$16.17 1
HC2 LR073582
CLIP - TRIM - PILLARS
20 X 7.8 + 0.8-1.2, Console 		$1.86 3
HC3 LR038293
CLIP - CENTRE CONSOLE
With Luggage Net / 1.35 X 6 X 22 X 0.7 - 1.2, For Cargo Net Bracket 		$1.10 2
HN1 LR122752
NUT
4.8X12X15X0.7-1.5 		$12.21 1
HS1 LR003450
SCREW
With Luggage Net / For Cargo Net Bracket, M6 X 16MM
IN STOCK 		$0.52 6
HS1 LR003450
SCREW
Bracket To BIW, M6 X 16MM
IN STOCK 		$0.52 4
HS2 LR006211
SCREW
4.2 x 16MM, Torx
IN STOCK 		$0.52 1
19A444 LR117814
CAP - PILLAR TRIM AIR BAG
5 Door, Light Oyster Headliner / RH/LH 		$7.10 4
19A444 LR117816
CAP - PILLAR TRIM AIR BAG
5 Door, Ebony Headliner / RH/LH 		$6.74 4
13776 LR091313
LAMP - INTERIOR
Light Oyster Headliner / Rear Lamp, RH/LH 		$147.33 2
13776 LR079061
LAMP - INTERIOR
Ebony Headliner / Rear Lamp, RH/LH 		$153.71 2
