Name: Glove Box (Halewood (UK))
Rating: 4.5 (1 reviews)

Glove Box (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Glove Box (Halewood (UK))

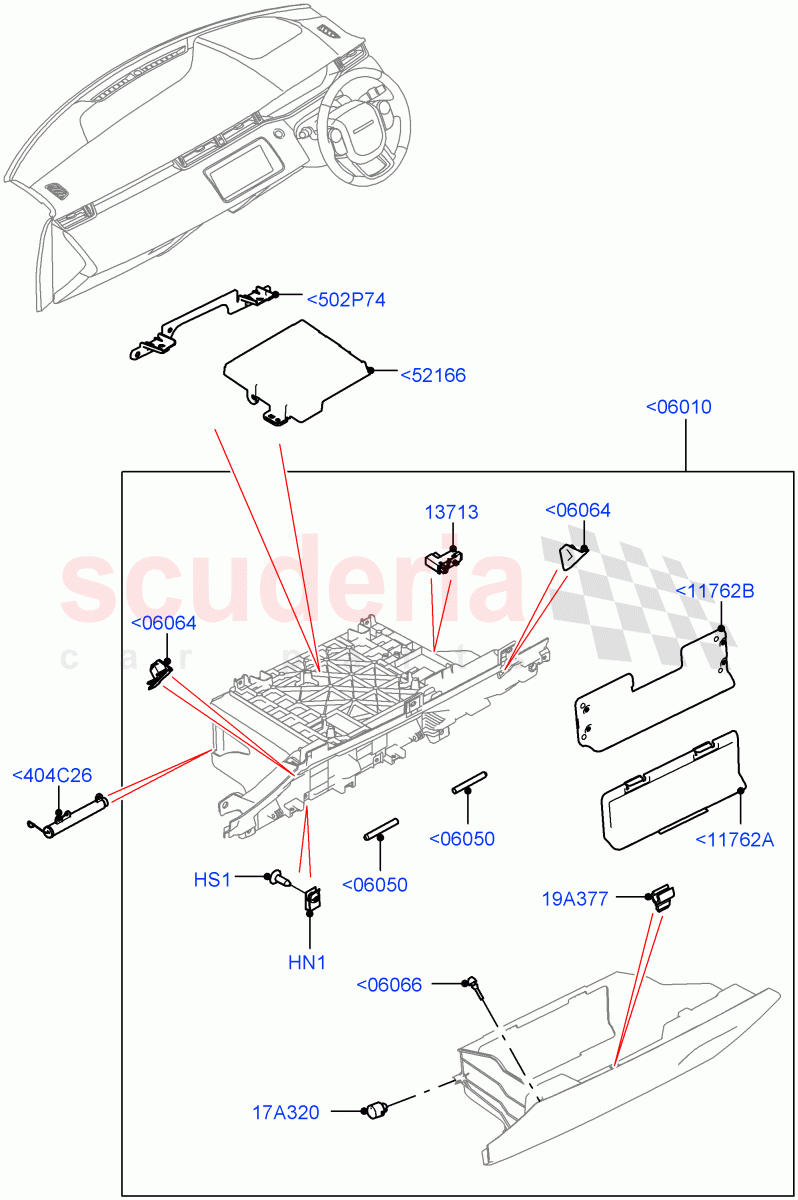

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006214	NUT	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PYP500140	SCREW	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR059873	SWITCH - GLOVE COMPARTMENT LIGHT	$17.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117751	COMPARTMENT - GLOVE - CO-DRIVER	$558.92	To Order
	LR117753	COMPARTMENT - GLOVE - CO-DRIVER	$622.40	To Order
	LR133239	COMPARTMENT - GLOVE - CO-DRIVER	$525.11	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027191	HINGE - STOWAGE BOX	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117764	STRIKER - GLOVE COMPARTMENT DOOR	$39.72	To Order
	LR140361	STRIKER - GLOVE COMPARTMENT DOOR	$36.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117756	BUMP STOP - GLOVE BOX	$9.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117748	BRACKET - SUPPORT	$66.68	To Order
	LR140309	BRACKET - SUPPORT	$65.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117758	STOP PIN	$6.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059885	HOLDER - PENCIL	$13.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117749	PANEL - GLOVE COMPMNT DOOR INNER	$64.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR119536	PANEL - GLOVE COMPMNT DOOR INNER	$70.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117750	DAMPER - GLOVE BOX DOOR	$31.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117723	BRACKET - STOWAGE MOUNTING	$37.08	To Order
	LR117724	BRACKET - STOWAGE MOUNTING	$37.08	To Order
	LR133996	BRACKET - STOWAGE MOUNTING	$35.79	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<404C26	LR117750	DAMPER - GLOVE BOX DOOR	LR117750 DAMPER - GLOVE BOX DOOR	$31.80	1
<502P74	LR117723	BRACKET - STOWAGE MOUNTING	LR117723 BRACKET - STOWAGE MOUNTING LHD / Mounting Bracket / To: LH029673	$37.08	1
<502P74	LR117724	BRACKET - STOWAGE MOUNTING	LR117724 BRACKET - STOWAGE MOUNTING RHD / Mounting Bracket / To: LH029673	$37.08	1
<502P74	LR133996	BRACKET - STOWAGE MOUNTING	LR133996 BRACKET - STOWAGE MOUNTING LHD / Mounting Bracket / From: LH029674	$35.79	1
<502P74	LR133997	BRACKET - STOWAGE MOUNTING	LR133997 BRACKET - STOWAGE MOUNTING RHD / Mounting Bracket / From: LH029674	$35.79	1
<06010	LR117751	COMPARTMENT - GLOVE - CO-DRIVER	LR117751 COMPARTMENT - GLOVE - CO-DRIVER LHD / To: LH010421	$558.92	1
<06010	LR117753	COMPARTMENT - GLOVE - CO-DRIVER	LR117753 COMPARTMENT - GLOVE - CO-DRIVER RHD / To: LH010421	$622.40	1
<06010	LR133239	COMPARTMENT - GLOVE - CO-DRIVER	LR133239 COMPARTMENT - GLOVE - CO-DRIVER LHD / From: LH010422 / To: LH029313	$525.11	1
<06010	LR133240	COMPARTMENT - GLOVE - CO-DRIVER	LR133240 COMPARTMENT - GLOVE - CO-DRIVER RHD / From: LH010422 / To: LH029313	$538.88	1
<06010	LR133999	COMPARTMENT - GLOVE - CO-DRIVER	LR133999 COMPARTMENT - GLOVE - CO-DRIVER LHD / From: LH029314 / To: LH033474	$499.91	1
<06010	LR133998	COMPARTMENT - GLOVE - CO-DRIVER	LR133998 COMPARTMENT - GLOVE - CO-DRIVER RHD / From: LH029314 / To: LH033474	$499.91	1
<06010	LR134643	COMPARTMENT - GLOVE - CO-DRIVER	LR134643 COMPARTMENT - GLOVE - CO-DRIVER LHD / From: LH033475 / To: LH114507	$465.52	1
<06010	LR134642	COMPARTMENT - GLOVE - CO-DRIVER	LR134642 COMPARTMENT - GLOVE - CO-DRIVER RHD / From: LH033475 / To: LH110385	$459.46	1
<06010	LR140375	COMPARTMENT - GLOVE - CO-DRIVER	LR140375 COMPARTMENT - GLOVE - CO-DRIVER RHD / From: LH110386	$489.90	1
<06010	LR140376	COMPARTMENT - GLOVE - CO-DRIVER	LR140376 COMPARTMENT - GLOVE - CO-DRIVER LHD / From: LH114508	$477.18	1
<06050	LR027191	HINGE - STOWAGE BOX	LR027191 HINGE - STOWAGE BOX Pin	$4.25	2
<06064	LR117764	STRIKER - GLOVE COMPARTMENT DOOR	LR117764 STRIKER - GLOVE COMPARTMENT DOOR To: LH114507	$39.72	2
<06064	LR140361	STRIKER - GLOVE COMPARTMENT DOOR	LR140361 STRIKER - GLOVE COMPARTMENT DOOR From: LH114508	$36.11	2
<06066	LR117756	BUMP STOP - GLOVE BOX	LR117756 BUMP STOP - GLOVE BOX	$9.46	1
<11762A	LR117749	PANEL - GLOVE COMPMNT DOOR INNER	LR117749 PANEL - GLOVE COMPMNT DOOR INNER Access Panel	$64.36	1
<11762B	LR119536	PANEL - GLOVE COMPMNT DOOR INNER	LR119536 PANEL - GLOVE COMPMNT DOOR INNER (+)"J" / Access Panel, Japan Dealer Fit Only	$70.80	1
<52166	LR117748	BRACKET - SUPPORT	LR117748 BRACKET - SUPPORT Mounted On The Top Of Glove Compartment Housing / To: LH080983	$66.68	1
<52166	LR140309	BRACKET - SUPPORT	LR140309 BRACKET - SUPPORT Mounted On The Top Of Glove Compartment Housing / From: LH080984	$65.99	1
HN1	LR006214	NUT IN STOCK	LR006214 NUT 4.2 X 2.25 - 3 IN STOCK	$1.12	-
HS1	PYP500140	SCREW IN STOCK	PYP500140 SCREW 4.2 x 13MM, Torx IN STOCK	$0.77	4
17A320	LR117758	STOP PIN	LR117758 STOP PIN	$6.12	2
19A377	LR059885	HOLDER - PENCIL	LR059885 HOLDER - PENCIL	$13.90	1
13713	LR059873	SWITCH - GLOVE COMPARTMENT LIGHT	LR059873 SWITCH - GLOVE COMPARTMENT LIGHT	$17.51	1

Glove Box (Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Glove Box (Halewood (UK))
