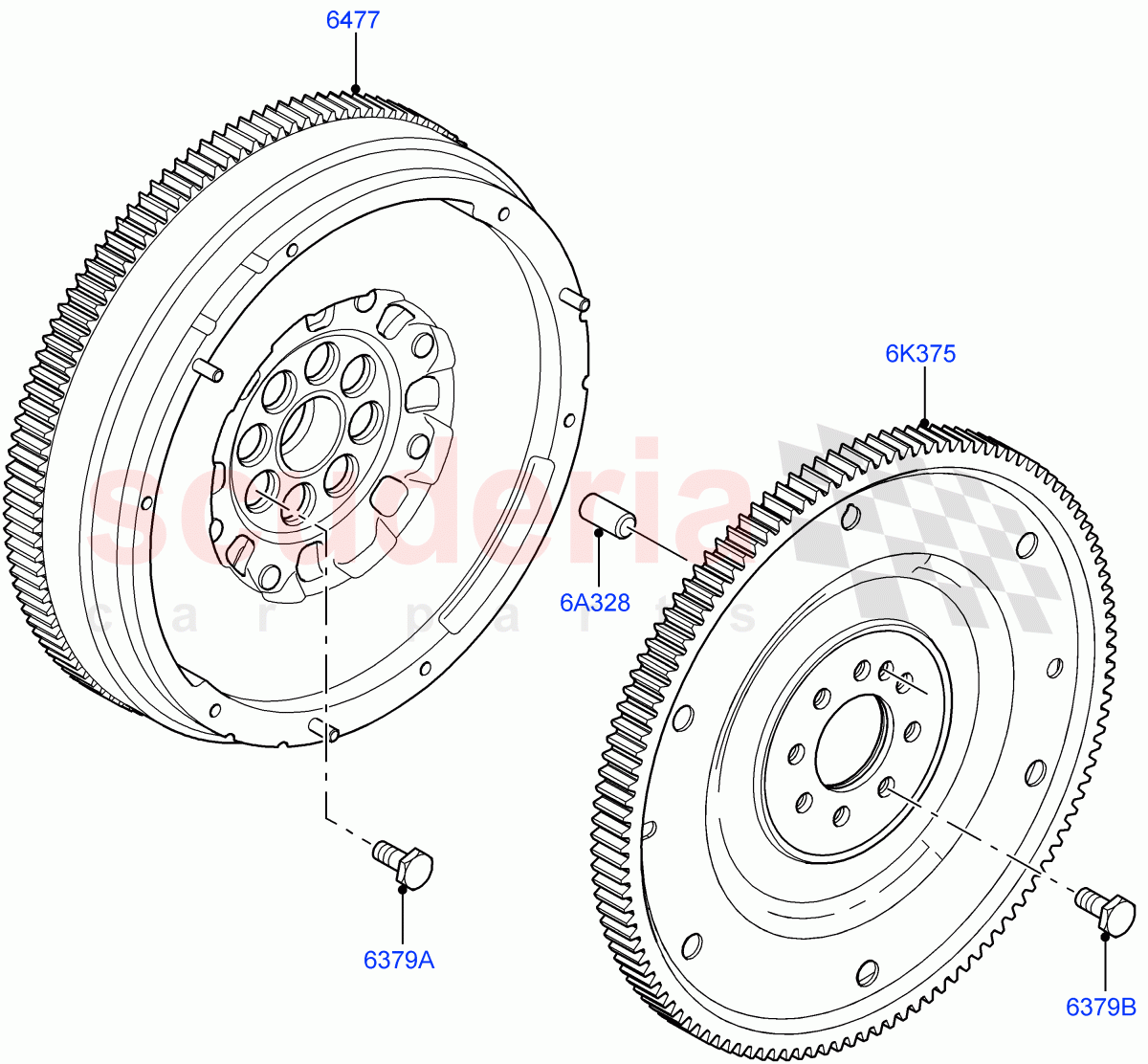

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR018299	BOLT - HEX.HEAD	$3.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019015	BOLT - HEX.HEAD	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003131	PIN - RETAINING	$11.43	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6A328	LR003131	PIN - RETAINING	LR003131 PIN - RETAINING Speed Sensor	$11.43	1
6K375	LR005813	FLYWHEEL	LR005813 FLYWHEEL 6 Speed Auto AWF21 AWD / To: DH999999	$1,487.15	1
6K375	LR056047	FLYWHEEL	LR056047 FLYWHEEL 9 Speed Auto AWD, Starter - Stop/Start System / From: EH000001	$1,442.32	1
6K375	LR005813	FLYWHEEL	LR005813 FLYWHEEL 9 Speed Auto AWD, Standard Electric Starter Motor / From: EH000001	$1,487.15	1
6379A	LR018299	BOLT - HEX.HEAD	LR018299 BOLT - HEX.HEAD 6 Speed Manual Trans-JLR M66 2WD / Hexagonal Head, M8 x 24MM	$3.73	8
6379B	LR019015	BOLT - HEX.HEAD	LR019015 BOLT - HEX.HEAD 9 Speed Auto AWD / Hexagonal Head, M9 X 22	$4.25	8
6477	LR022073	FLYWHEEL	LR022073 FLYWHEEL 6 Speed Manual Trans-JLR M66 2WD / To: DH818904	$922.93	1
6477	LR052354	FLYWHEEL	LR052354 FLYWHEEL 6 Speed Manual Trans-JLR M66 2WD / From: DH818905	$1,000.36	1

Haven't found what you're looking for?

View Cart / Checkout

Flywheel (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]
