Crankshaft/Pistons And Bearings (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Crankshaft/Pistons And Bearings (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001224 RETAINER - PISTON PIN $8.66 To Order
Photo Part No Description Price (each) Stock
LR038757 KIT - PISTON RING $166.49 IN STOCK
LR038757 KIT - PISTON RING $166.49 IN STOCK
Photo Part No Description Price (each) Stock
LR019693 ROD - CONNECTING $542.00 To Order
Photo Part No Description Price (each) Stock
LR031632 BEARING - CONNECTING ROD $104.66 To Order
LR031633 BEARING - CONNECTING ROD $56.34 To Order
LR031634 BEARING - CONNECTING ROD $100.77 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR001233 BOLT - SPECIAL $17.38 To Order
Photo Part No Description Price (each) Stock
LR022080 CRANKSHAFT $2,972.83 To Order
Photo Part No Description Price (each) Stock
LR000671 PLUG - SLEEVE $9.88 To Order
Photo Part No Description Price (each) Stock
LR000647 RING - SEALING $14.62 To Order
Photo Part No Description Price (each) Stock
LR000673 SEAL - CRANKSHAFT OIL - FRONT $20.97 To Order
LR052514 SEAL - CRANKSHAFT OIL - FRONT $44.95 To Order
Photo Part No Description Price (each) Stock
LR000674 SEAL - CRANKSHAFT OIL $19.71 To Order
LR052515 SEAL - CRANKSHAFT OIL $51.43 IN STOCK
Photo Part No Description Price (each) Stock
LR051836 KIT - CONNECTING RODS $1,536.04 To Order
Photo Part No Description Price (each) Stock
LR022444 PISTON $510.15 To Order
Photo Part No Description Price (each) Stock
LR022090 BEARING - CRANKSHAFT MAIN $31.63 To Order
Photo Part No Description Price (each) Stock
LR022514 BEARING - CRANKSHAFT MAIN $21.13 To Order
LR022517 BEARING - CRANKSHAFT MAIN $19.55 To Order
LR022520 BEARING - CRANKSHAFT MAIN $19.29 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025915 BEARING - CAMSHAFT $27.83 To Order
Photo Part No Description Price (each) Stock
LR025913 BEARING - CRANKSHAFT MAIN $10.85 To Order
Photo Part No Description Price (each) Stock
LR000645 BOLT - HEX.HEAD $10.05 To Order
Photo Part No Description Price (each) Stock
LR000650 KEY - WOODRUFF $7.49 To Order
Photo Part No Description Price (each) Stock
LR000651 KEY - WOODRUFF $25.34 To Order
View All

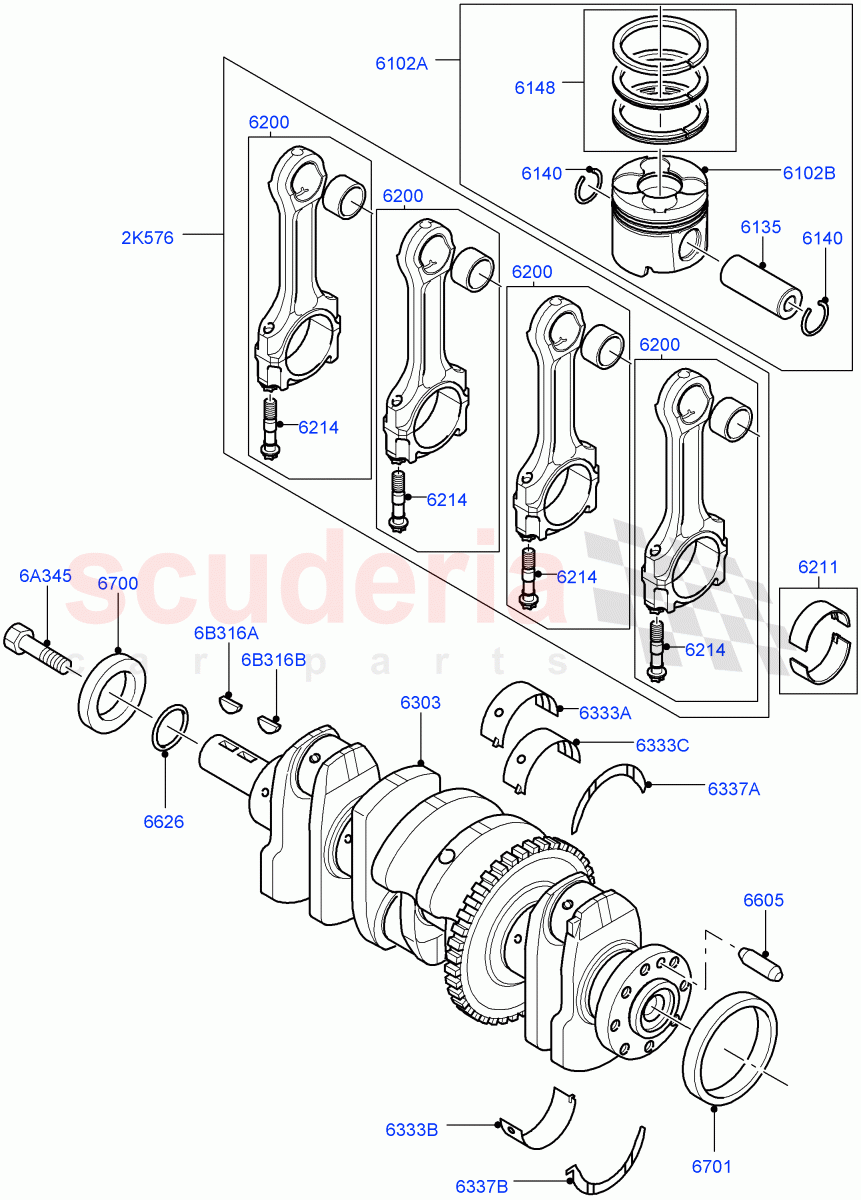

Crankshaft/Pistons And Bearings (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2K576 LR051836
KIT - CONNECTING RODS 		$1,536.04 1
6A345 LR000645
BOLT - HEX.HEAD
M14 X 150MM, Pulley - Crankshaft 		$10.05 1
6B316A LR000650
KEY - WOODRUFF
Pin - Crankshaft 		$7.49 1
6B316B LR000651
KEY - WOODRUFF
Pin - Crankshaft 		$25.34 1
6102A LR022444
PISTON
Includes Piston Rings, Pin And Retaining Rings 		$510.15 4
6140 LR001224
RETAINER - PISTON PIN 		$8.66 8
6148 LR038757
KIT - PISTON RING
To: CH703770
IN STOCK 		$166.49 4
6148 LR038757
KIT - PISTON RING
From: CH703771
IN STOCK 		$166.49 4
6200 LR019693
ROD - CONNECTING 		$542.00 4
6211 LR031632
BEARING - CONNECTING ROD
Green / To: DH999999 		$104.66 4
6211 LR031633
BEARING - CONNECTING ROD
Yellow / To: DH999999 		$56.34 4
6211 LR031634
BEARING - CONNECTING ROD
Blue / To: DH999999 		$100.77 4
6211 LR069029
BEARING - CONNECTING ROD
Yellow / From: EH000001 / To: EH999999 		$133.97 4
6211 LR069030
BEARING - CONNECTING ROD
Blue / From: EH000001 / To: EH999999 		$133.97 4
6211 LR069028
BEARING - CONNECTING ROD
Green / From: EH000001 / To: EH999999 		$133.97 4
6211 LR134885
BEARING - CONNECTING ROD
Green / From: FH000001 		$160.58 4
6211 LR134886
BEARING - CONNECTING ROD
Yellow / From: FH000001 		$160.58 4
6211 LR134887
BEARING - CONNECTING ROD
Blue / From: FH000001 		$160.58 4
6214 LR001233
BOLT - SPECIAL
M9 X 45MM 		$17.38 8
6303 LR022080
CRANKSHAFT 		$2,972.83 1
6333A LR022090
BEARING - CRANKSHAFT MAIN
Upper 		$31.63 5
6333B LR022514
BEARING - CRANKSHAFT MAIN
1.869MM, Lower, Yellow 		$21.13 5
6333B LR022517
BEARING - CRANKSHAFT MAIN
1.837MM, Blue, Lower 		$19.55 5
6333B LR022520
BEARING - CRANKSHAFT MAIN
1.861MM, Lower, Red 		$19.29 5
6333B LR022519
BEARING - CRANKSHAFT MAIN
1.853MM, Green, Lower 		$18.01 5
6333B LR022518
BEARING - CRANKSHAFT MAIN
1.845MM, Black, Lower 		$19.55 5
6337A LR025915
BEARING - CAMSHAFT
Upper 		$27.83 2
6337B LR025913
BEARING - CRANKSHAFT MAIN
Lower 		$10.85 2
6605 LR000671
PLUG - SLEEVE
Plug 		$9.88 1
6626 LR000647
RING - SEALING
O Ring 		$14.62 1
6700 LR000673
SEAL - CRANKSHAFT OIL - FRONT
To: DH805806 		$20.97 1
6700 LR052514
SEAL - CRANKSHAFT OIL - FRONT
From: DH805807 		$44.95 1
6701 LR000674
SEAL - CRANKSHAFT OIL
Crankshaft, Rear / To: DH805806 		$19.71 1
6701 LR052515
SEAL - CRANKSHAFT OIL
Crankshaft, Rear / From: DH805807
IN STOCK 		$51.43 1
